M051-00K62-A070

March 23, 2004

2

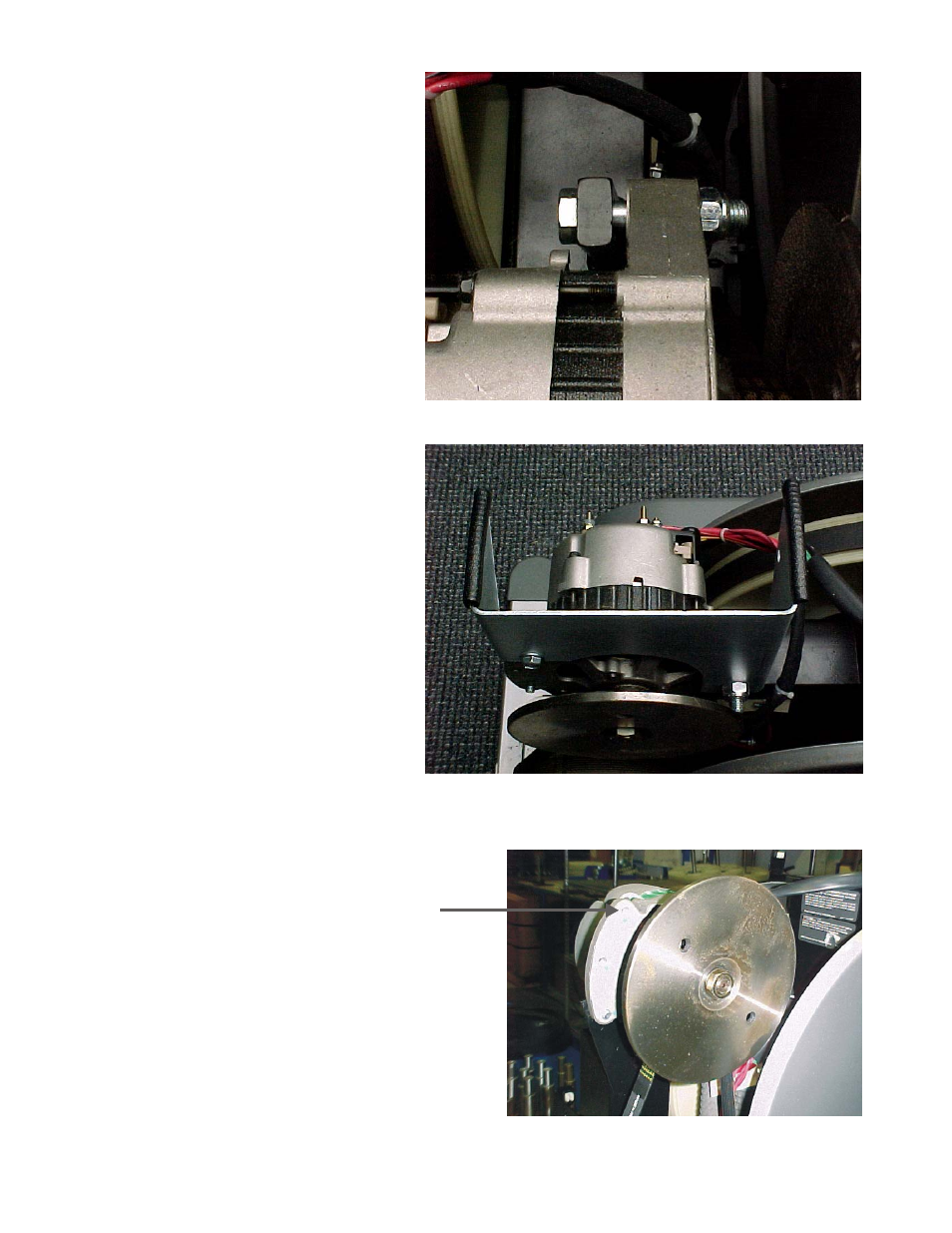

3. Loosen the Alternator Mounting

Bolt.

4. Use the 5/16 hex bolt supplied in

the kit and with the existing
Alternator Mounting bolt, fasten the
Shroud Support Bracket to
Alternator and tighten the bolts.

Use top
hole on

Alternator
to mount

Support
Bracket
