ARCTIC SILVER QUIET DRIVE 90X 90X-0XXX-04

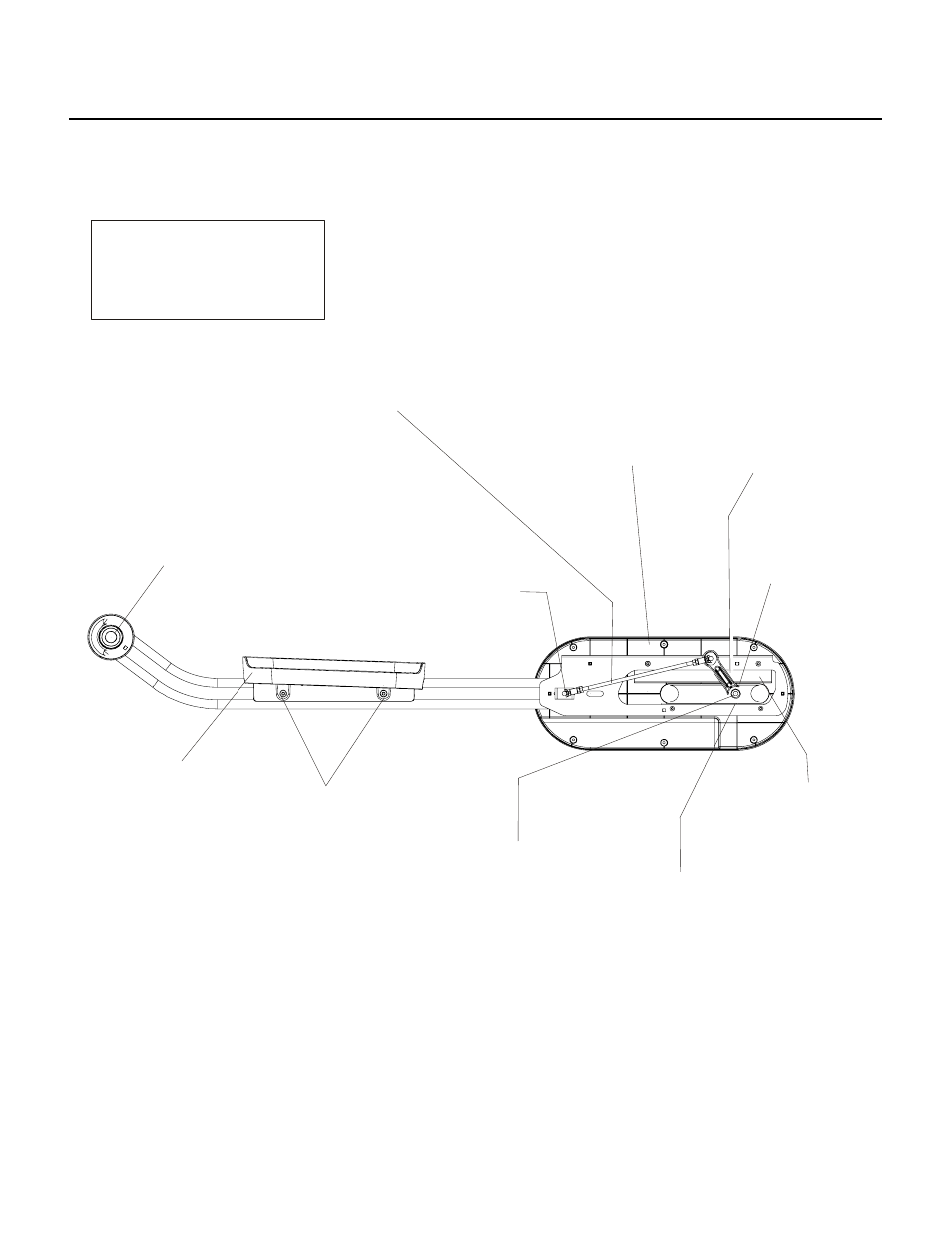

Pedal Lever Assembly Components S/N XWB100000 AND UP
Left Pedal
0K62-01005-0000
Right Pedal
0K62-01006-0000
Pedal Mounting
Hardware Screws (4)
0017-00101-1805
Washer (4)
0017-00104-0469
Roller w/bearing
AK62-00196-0001
Shaft Collar
0K62-01065-0000
Washer
0017-00104-0474
Brass Washer
0K47-01104-0000
Anti-Lift Roller
0K62-01191-0000
Crank Extension
Mounting Bolt
0017-00101-1907
Hex nut
0017-00103-0333
Right Inside Pedal Cover
0K62-01015-0000
Left Inside Pedal Cover
0K62-01016-0000
Mounting screws (5)
0017-00101-1796
Anti-Lift Track
0K62-01208-0000
Screws (2)
0017-00101-1836
Roller Extrusion
AK62-00197-0000
Screws (4)
0017-00101-1789
E-Ring
0017-00100-0107
Thrust Washer
0K47-01105-0000
Brass Washer
0K47-01104-0000
Pedal/Rocker Shaft & Bearings
Order Kit GK62-00002-0001
Control Link Kit
GK62-00002-0071
(contains 2 control links,
part nos. AK62-00384-0000)
Control Links (2)
AK62-00384-0000
Washer
0017-00104-0479
Nut
0017-00103-00333
