Life Fitness 5500 HR User Manual
Page 3
Life Fitness Model 5500HR Treadmill
HOW TO
...

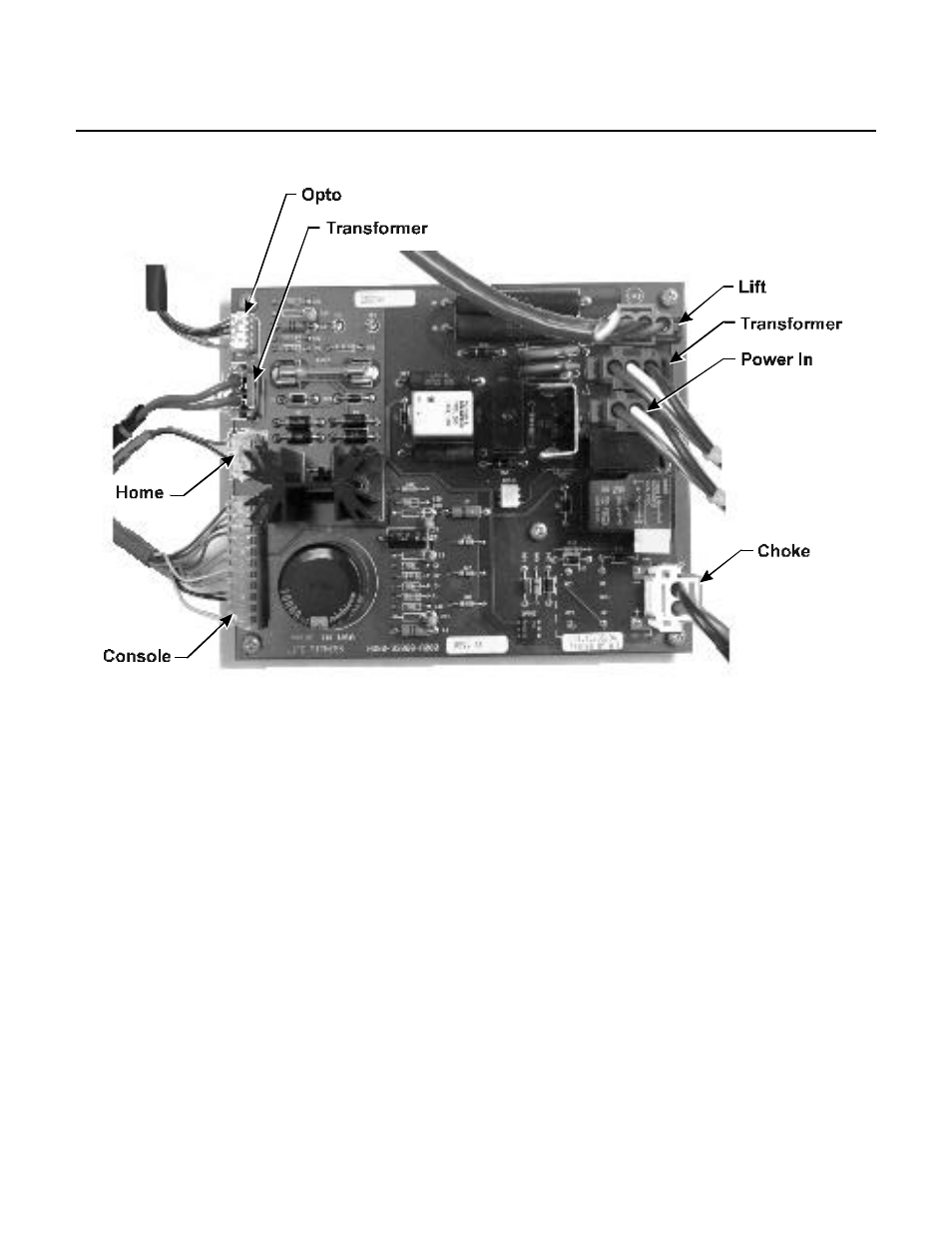

REMOVE AND REPLACE THE HEATSINK CONTROL BOARD
(Continued)
CPU CONNECTION
P5,1 Blk
This wire goes to top post of On/Off relay
P5,2 Blu
The wire color is Blue but the board states Wht
Line direct from line cord.
P5,3 Grn
Ground to pan
P6,1 Blk
Lead from Choke
P6,2 Red
Lead from Choke
