4
Midline TR9000 Treadmill TR90-XXXX-14 S/N CTB100000

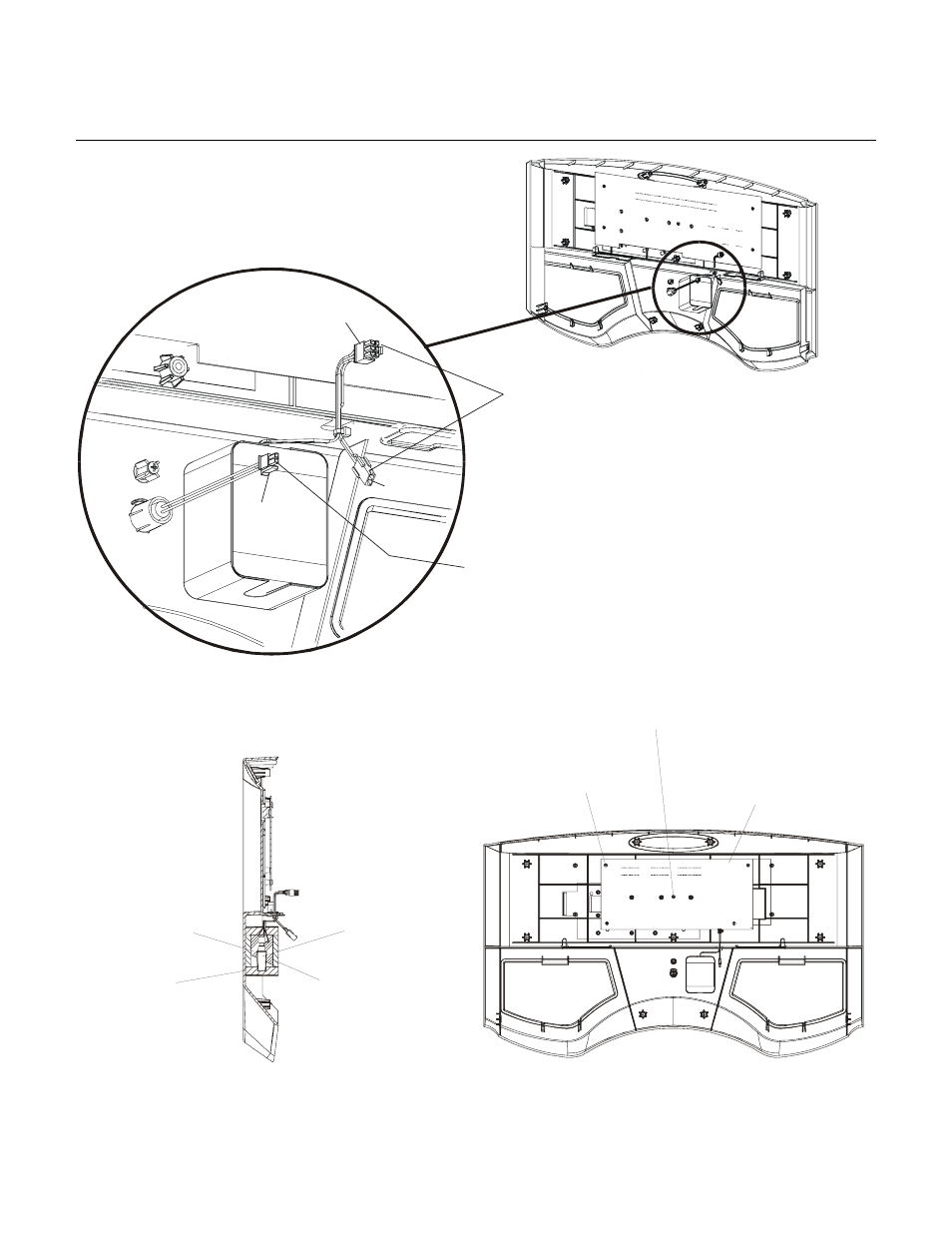

Console Assembly (3 of 3)
Phillips Screw(5)
0017-00101-1275
Console PCB
A084-92228-A0001
Phillips Screw
0017-00101-0969
Polar Receiver
AK40-00045-0001
Receiver Isolator Cube
0K36-01059-0001
Side Foam
0K36-01060-0000
Receiver Isolator Tube
0K36-01059-0002
Polar/Emergency Stop
Cable Assembly
AK60-00043-0000
(Note: The 6-pin connector,
connects to the PCB Assy.
The 2-pin connector,
connects to the Stop
Switch connector.)
Stop Switch Assembly
AK58-00036-0001
Note: 2-pin connector,
connects to the
Polar/Emergency Stop
2-pin connector.
6-Pin
Connector
2-Pin
Connector
2-Pin
Connector
