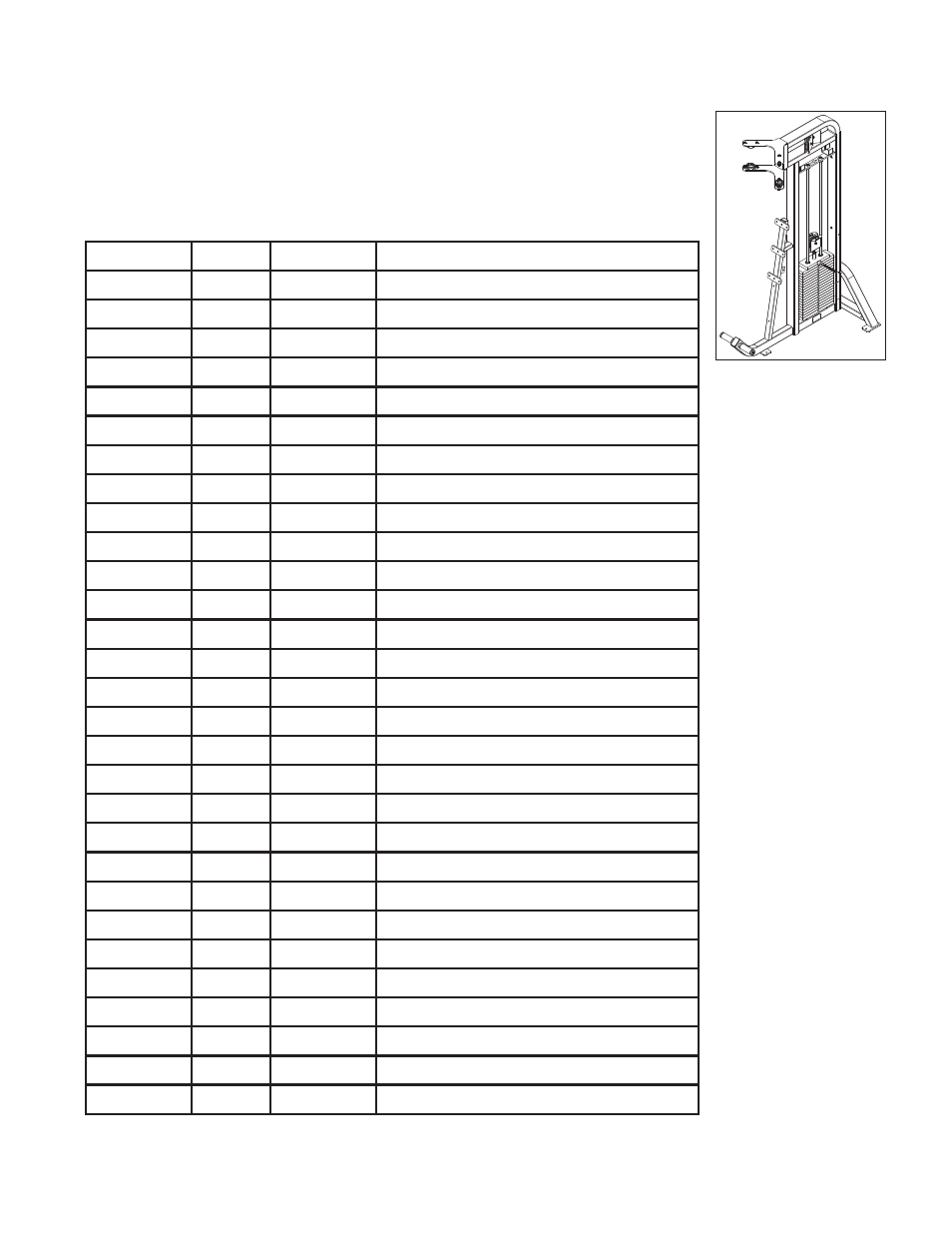

PSPEC FRAME ASSEMBLY LEGEND
ITEM NO.
QTY.
PART NO. DESCRIPTION
1
1
8103301
WLDMT, PSPEC FRAME
2
1
7425795
WELDMENT, FLOATING PULLEY
3
1
7353501
ASSY, 300LB STACK
4
2
7352101
CUSHION, WEIGHT STACK
5
2
7328606
GUIDE ROD, .75 OD SOLID 59.63
6
3
7348101
WASHER, SPACER
7
3
3237801
PULLEY, 4.5" OD
8
3
7335401
NUT, M10 X 1.5 SOCKET HEAD
9
2
3236206
SCREW, M10 X1.5 45MM
10
4
3237701
ASSY, PILLOW BLOCK 4.88 X 2.75
11
8
3236801
NUT, M10 HEX NYLOCK SS
12
10
3236601
WASHER, 3/8 SAE SS
13
8
3236204
SCREW, M10 X1.5 35MM
14
8
3237401
PLUG, 7/16" HOLE
15
2
7402301
RETAINER, GUIDEROD
16
2
3232421
RING, BRE .940, 5100-100 ST PP B
17
2
3240501
M10 X 1.5 HXS NO CUP ST BO
18
1
3236205
SCREW, M10 X1.5 40MM
19
1
7352301
CAP, END 2 X 3
20
1
7352201
CAP, END 1-1/2 X 2
21
6
3238101
NUT, BLIND INSERT M10 X 1.5
22
2
7570801
GUARD PAINT 1.25"x.75"x.25"
23
2
7800101
GRIP, 1.50 ID FOOT
24
2
7347301
NUT, SPIDER M10 X 1.5
25
2
3236202
SCREW, M10 X1.5 25MM
26
1
3236902
NUT, M16 X 2 HEX JAM SS
27
1
7348001
LABEL, LIFE FITNESS LOGO
28
1
7422004
LABEL, 2" ASTM WARN
29
1
7571301
LABEL, SERIAL NUMBER
PSPEC PECTORAL FLY
