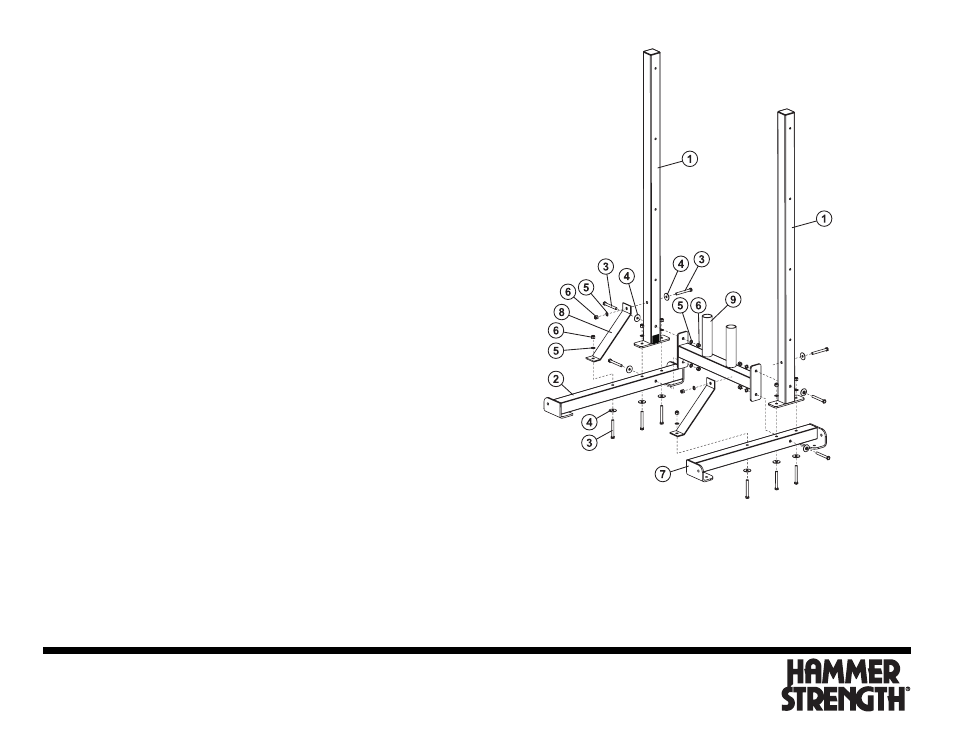

1. Assemble one UPRIGHT (1) and the LEFT BASE (2) using two 1/2” X
4.25” BOLTS (3), two 1/2” PLASTIC DOMED WASHERS (4), two 1/2” I.D.
WASHERS (5) and two 1/2” NYLOCK NUTS (6) as shown. Tighten the
BOLTS and NUTS securely. Do not overtighten the BOLTS and NUTS.
NOTE: Be sure the flush-ground surface Q at the bottom of the
UPRIGHT (1) is positioned to face the inward as shown.
Repeat the procedure to assemble the remaining UPRIGHT (1) to the
RIGHT BASE (7)
2. Assemble one BRACKET (8) to each UPRIGHT (1) and base (2, 7) using
four 1/2” X 4.25” BOLTS (3), four 1/2” PLASTIC DOMED WASHERS (4),
four 1/2” I.D. WASHERS (5) and four 1/2” NYLOCK NUTS (6) as shown.
Tighten the BOLTS and NUTS securely. Do not overtighten the BOLTS
and NUTS.
3. Assemble the CENTER CROSS-BRACE (9) to the two UPRIGHTS (1) using
four 1/2” X 4.25” BOLTS (3), four 1/2” PLASTIC DOMED WASHERS (4),
four 1/2” I.D. WASHERS (5) and four 1/2” NYLOCK NUTS (6) as shown.
Tighten the BOLTS and NUTS securely. Do not overtighten the BOLTS
and NUTS.
