STEP 11:

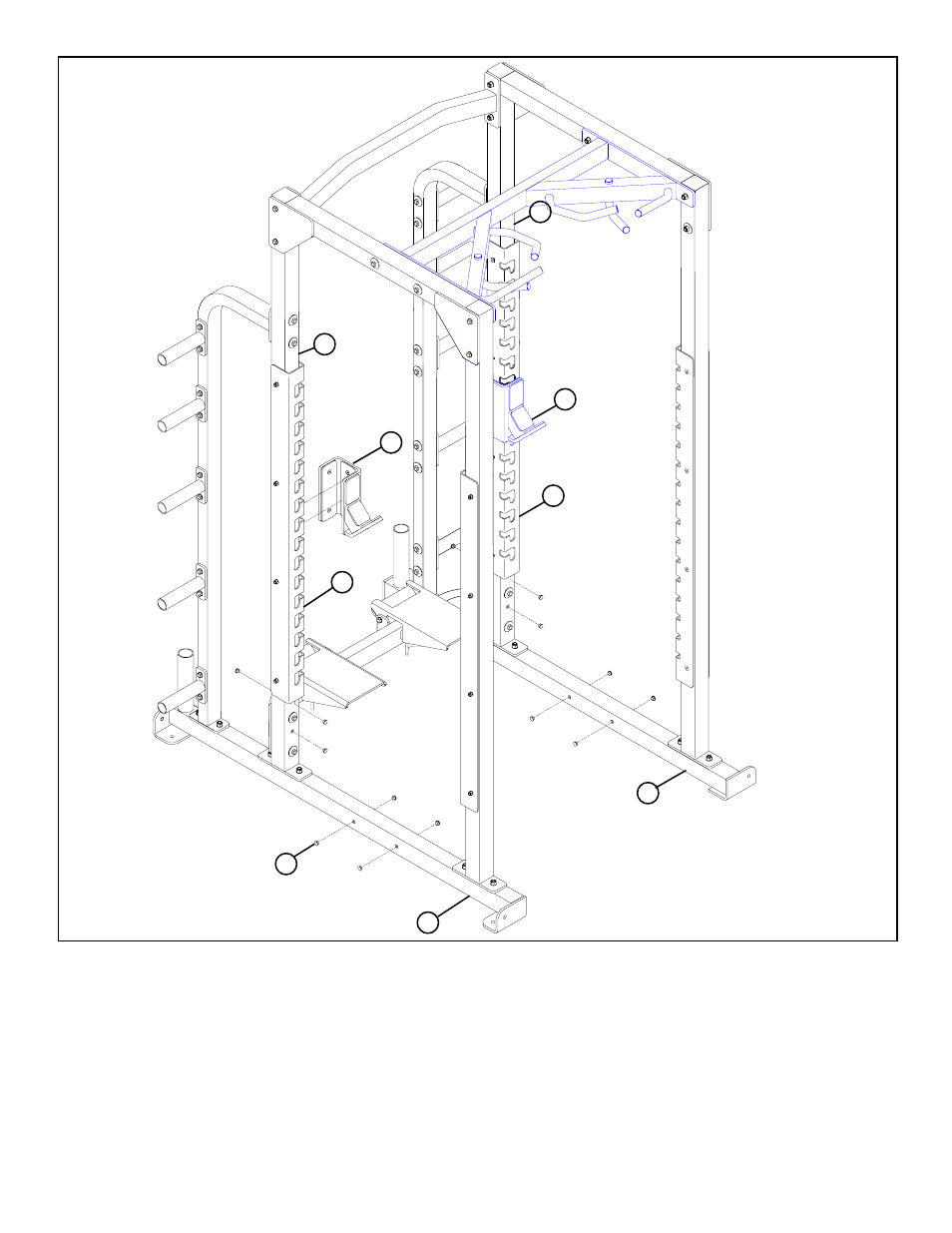

FIGURE 11
• Insert the LEFT BAR SUPPORT (12) into the desired slots of the LEFT ADJUSTMENT RACK (10), and allow it to drop down to lock in
place. See FIGURE 11.
10
13
12
• Repeat the above step to assemble the RIGHT BAR SUPPORT (13) to the RIGHT ADJUSTMENT RACK (9).
9
27
4
4
2
1
• Insert fourteen 9/16” HOLE CAPS (27) into the holes of the REAR UPRIGHTS (4) and the LEFT & RIGHT UPRIGHT BASE (1 & 2) as
shown in FIGURE 11.
