Lopi Freedom Bay Fireplace Insert - Manual (Page 13)

Installation
(for qualified installers only)
13
© Travis Industries 100-01163 4041129

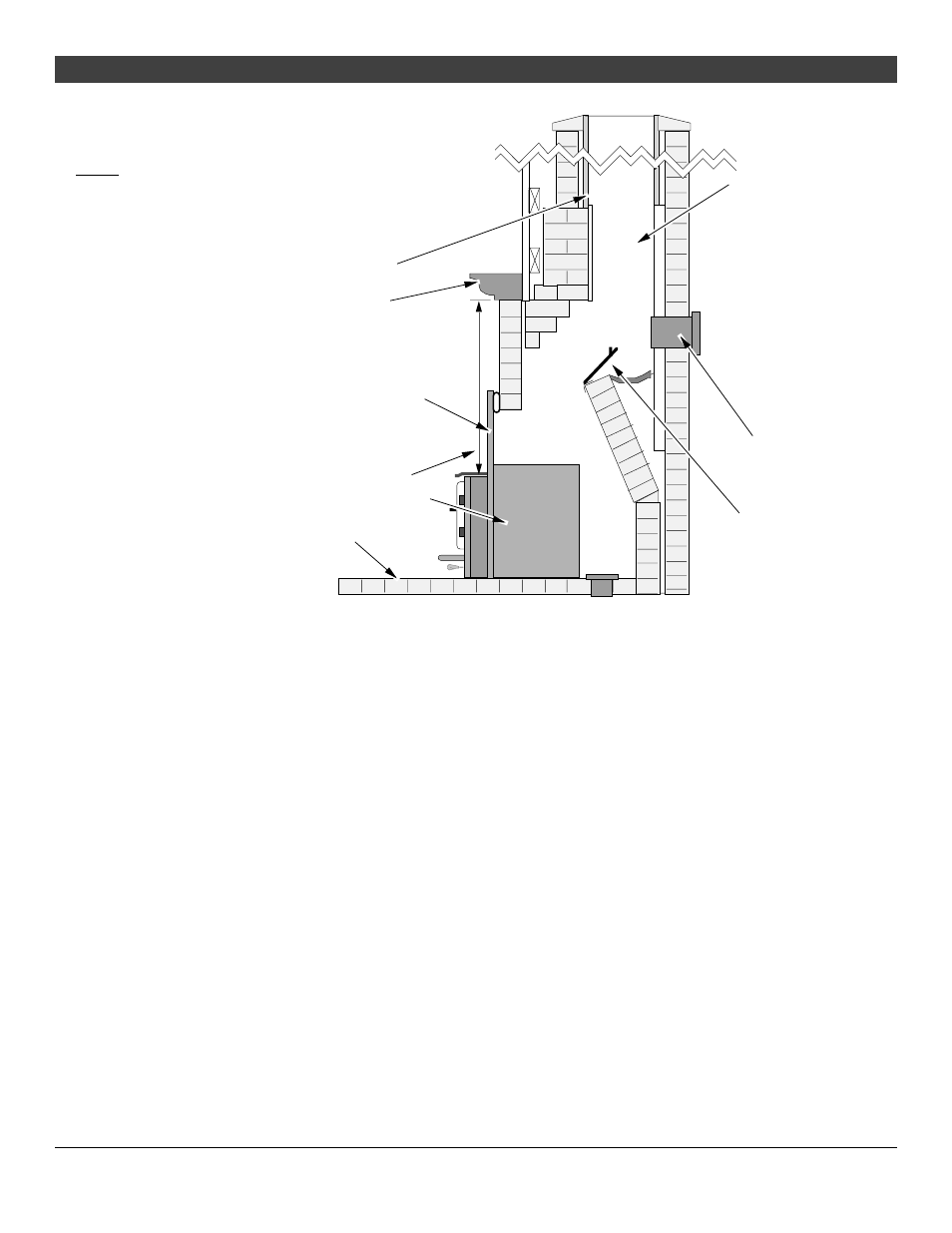

Insert with Face
Seal Connection
NOTE:
Face seal connections
require installation of the
surround panels and
insulation (see the
"Surround Panel
Installation" on page
31).
Remove damper
or wire it open
Airtight Insulated
Clean-Out
Combustible Mantle
Flue
Liner
See the section "Insert
Placement Requirements"
for minimum clearances
and hearth required.
Surround Panels
with insulation
NOTE: It is
recommended your
chimney have a
minimum 28 and a
maximum of 144
square inch cross-
sectional area to use a
face seal connection,
otherwise your
chimney maynot have
sufficient draw for the
fireplace insert to
operate correctly.
