Section 1 Assembly and Set-Up
Control Lever & Seat Assembly
Refer to Figure 1-1:
The seat (#1) is shipped loose for ease in shipping. The
control lever’s upper bolts (#4) and nuts (#5) are removed
and the levers are rotated down.
1.
Refer to Access to Engine & Hydraulic Pumps on
page 26. The seat platform is hinged at the front. To
raise it, release seat platform latch and tilt the seat
platform up and forward. The seat platform catch will
prevent it from going all the way over.
2.
Mount seat (#1) in the operating position, to the seat
platform with four 5/16” nuts (#3) and four 5/16” flat
washers (#2).
3.
Connect the switch wires on the mower with the switch
wires on the seat.
4.
Return seat platform to normal operating position.
5.
Rotate the control levers up until the holes line up and
replace the bolts and flat washers as shown.

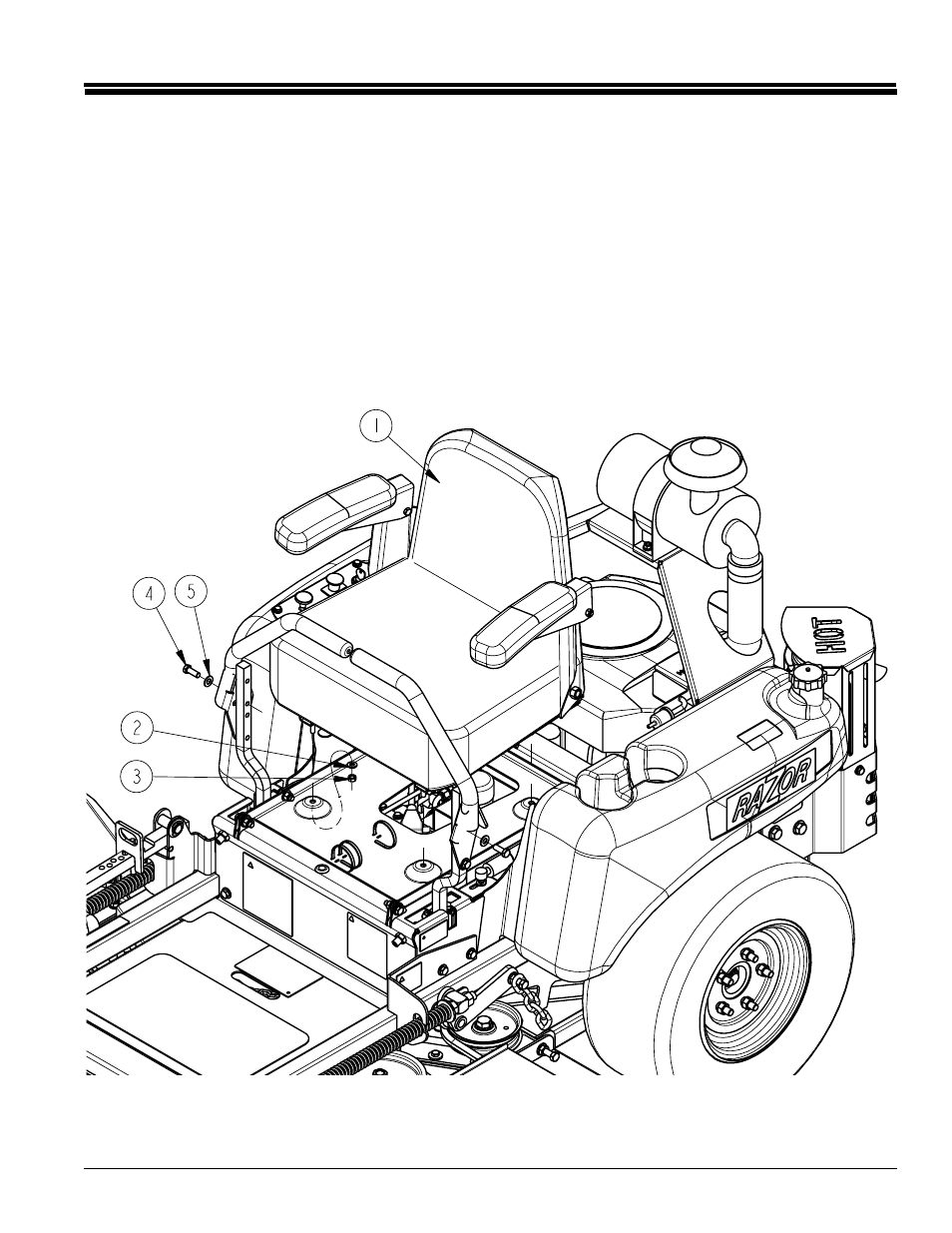

Control Lever & Seat Assembly
Figure 1-1
