Page 7

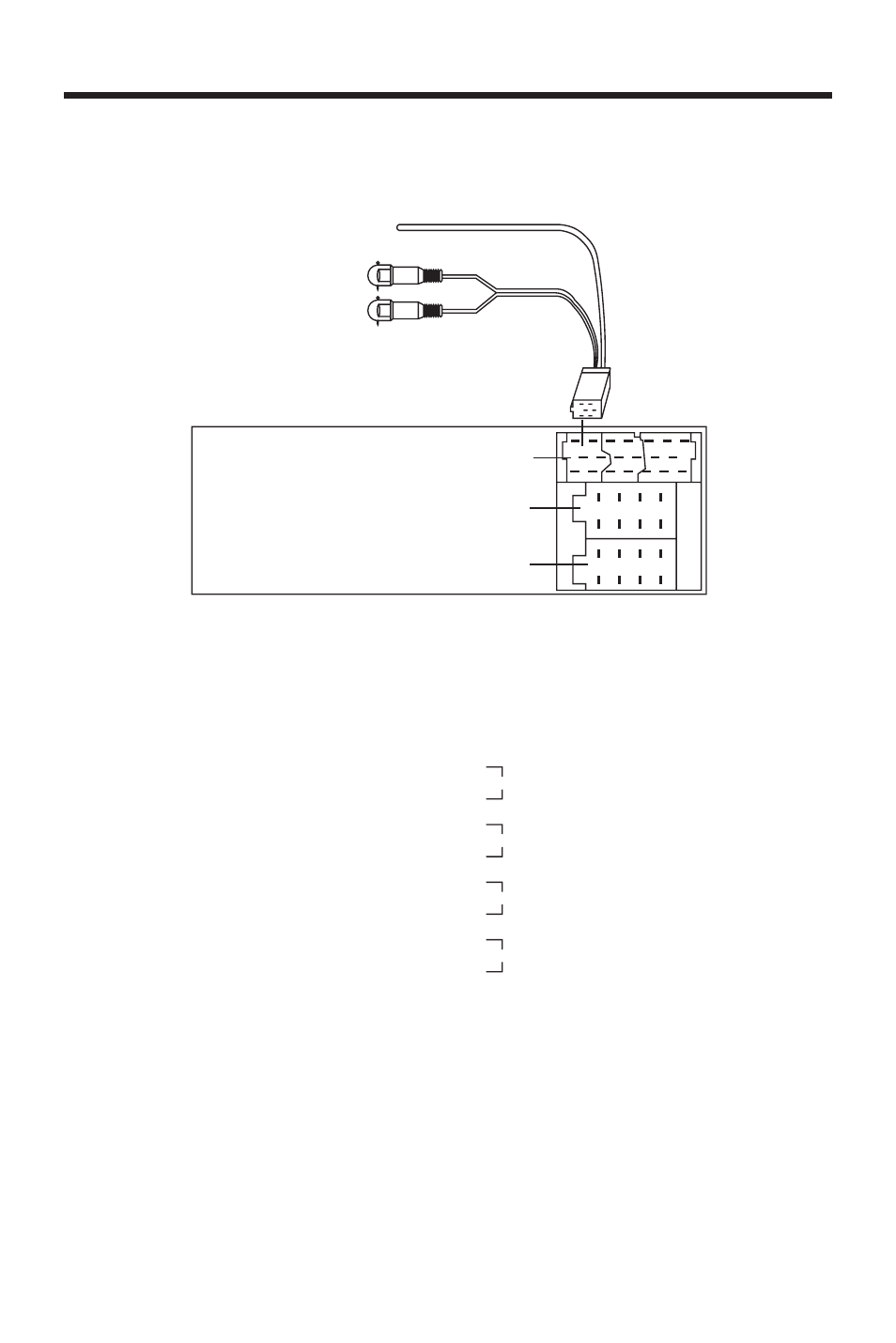

WIRING CONNECTION
ISO Connection
ISO SOCKET PIN OUT
Part A Power Connection
Part B Speaker Connection
1.
Free
1 +
2.
Free
2 –
3.
Free
3 +
4.
Memory (+B permanent)
4 –
5.
Trip line for fully automatic antenna
5 +
6.
Free
6 –
7.
Main power supply (+B ignition)
7 +
8.
Ground
8 –
Part C
1.
Audio frequency out, rear left
2.
Audio frequency out, rear right
3.
Audio frequency out, ground
4.
Battery plus, switched by radio
RR = Rear right
RF = Front right
LF = Front left
LR = Rear left
BLUE
1
4
7
10
13
16 19
3
6
9
12 15
18
2
5
8
11 14 17
20
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
Part C
Part B
Part A
AUTO ANTENNA
Rch RED
Lch WHITE
BROWN
GB-7
