Chapter 1
Product Overview
5 Dual-Band Wireless-N Gigabit Router
Wall-Mounting Placement
The Router has two wall-mount slots on its bottom
panel. The distance between the slots is 152 mm
(6 inches).
Two screws are needed to mount the Router.
Suggested Mounting Hardware
2.5–3.0 mm
4–5 mm 1–1.5 mm
Note: Mounting hardware illustrations are not †
true to scale.
NOTE: Linksys is not responsible for damages
incurred by insecure wall-mounting hardware.
Follow these instructions:
Determine where you want to mount the Router. 1.
Make sure that the wall you use is smooth, flat, dry and
sturdy. Also make sure the location is within reach of
an electrical socket.
Drill two holes into the wall. Make sure the holes are
2.
152 mm (6 inches) apart.
Insert a screw into each hole and leave 3 mm
3.
(0.12 inches) of its head exposed.
Manoeuvre the Router so the wall-mount slots line up
4.
with the two screws.
Place the wall-mount slots over the screws and slide
5.
the Router down until the screws fit snugly into the
wall-mount slots.
152 mm

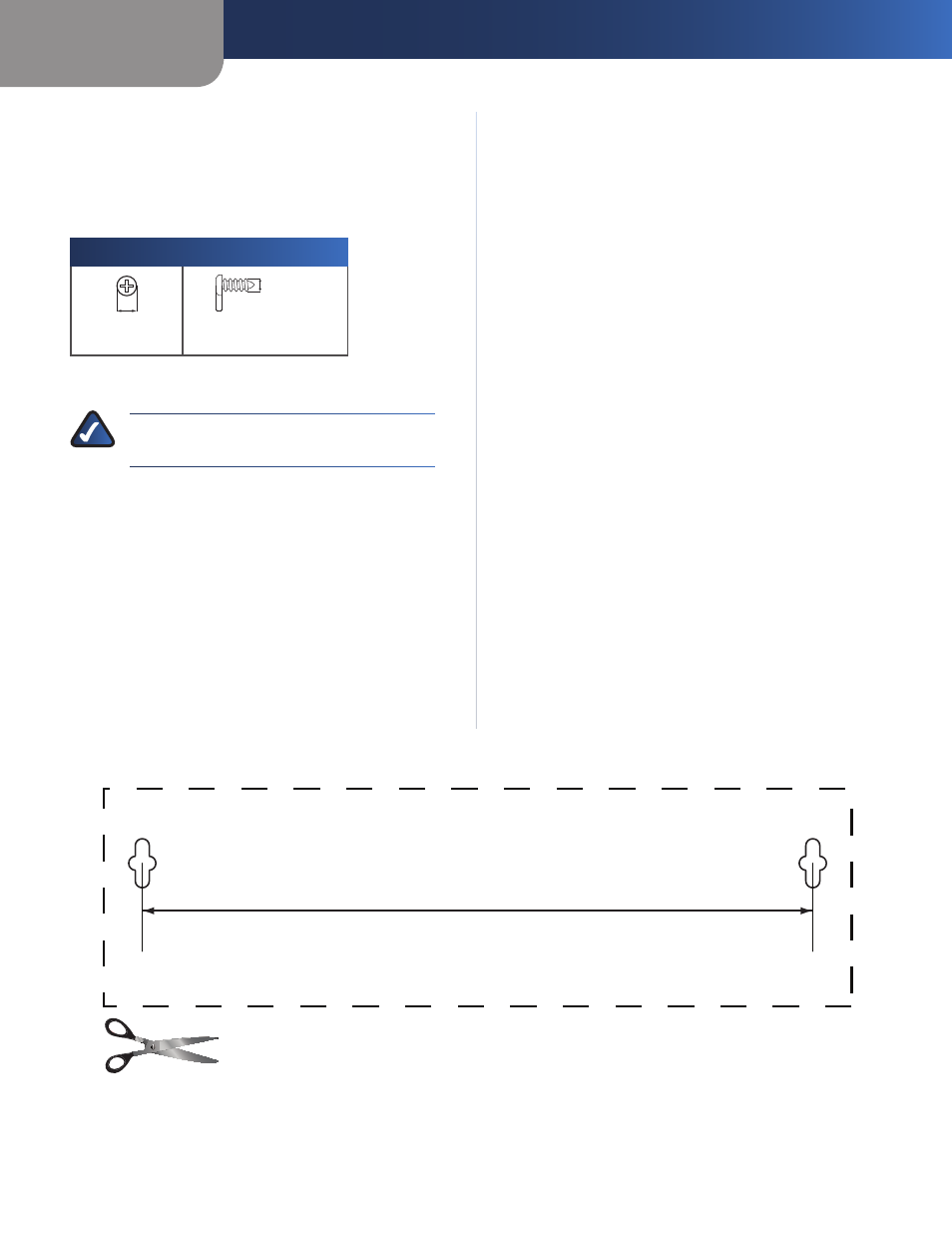

Wall Mounting Template
Print this page at 100% size.
Cut along the dotted line, and place on the wall to drill precise spacing.
