PLLL2 PLATE LOADED LINEAR LEG PRESS
________________________________________
Page 12

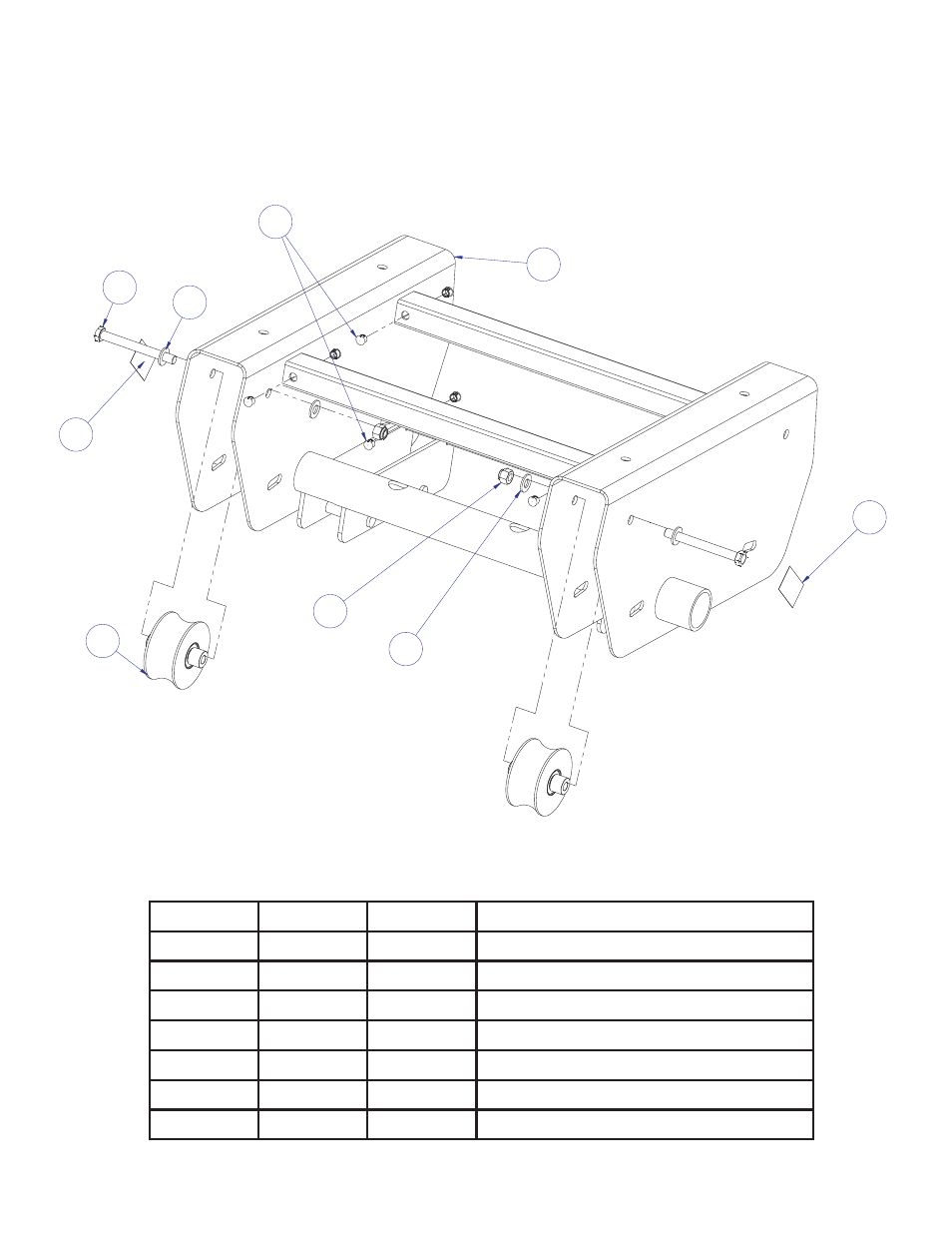

BOTTOM MOVEMENT ARM ASSEMBLY- 7698401
ITEM NO.
QTY.
PART NO. DESCRIPTION
1
1
7698501
WLDMT, PLLL2 BOTTOM MA
2
2
3240301
ROLLER ASSY
3
2
3239319
1/2-13 X 4.75 UNS HEX FHB G5 ZN
4
2
3102801
NUT, NYLOCK 1/2-13 ST ZN
5
4
3102507
WASHER, TYPE A PLAIN
6
2
7422003
LABEL, MOVING PARTS
7
12
3237402
PLUG, HOLE
