LANCOM 7111 VPN – LANCOM 8011 VPN
̈ Chapter 10: Appendix
73
EN

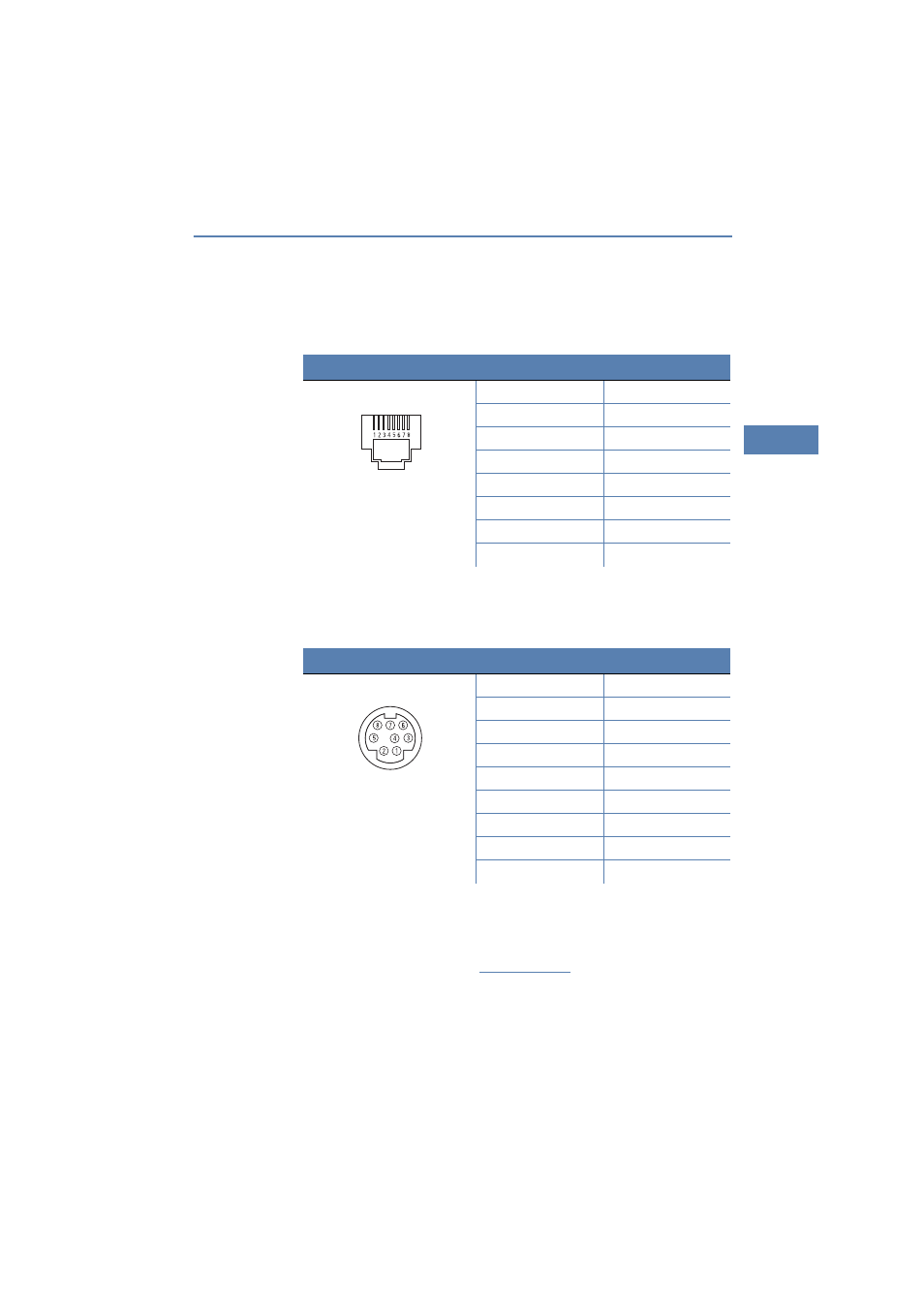

10.2.3 Ethernet interfaces 10/100Base-T
8-pin RJ45 socket, corresponding to ISO 8877, EN 60603-7
10.2.4 Configuration interface (Outband)
8-pin mini-DIN socket
10.3 CE declaration of conformity
The CE declarations of conformity for LANCOM routers are available for down-
load on the LANCOM web site (
www.lancom.de ).
Connector Pin Line
1 T+
2 T-
3 R+
4 –
5 –
6 R-
7 –
8 –
Connector Pin Line
1 CTS
2 RTS
3 RxD
4 RI
5 TxD
6 DSR
7 DCD
8 DTR
U GND
