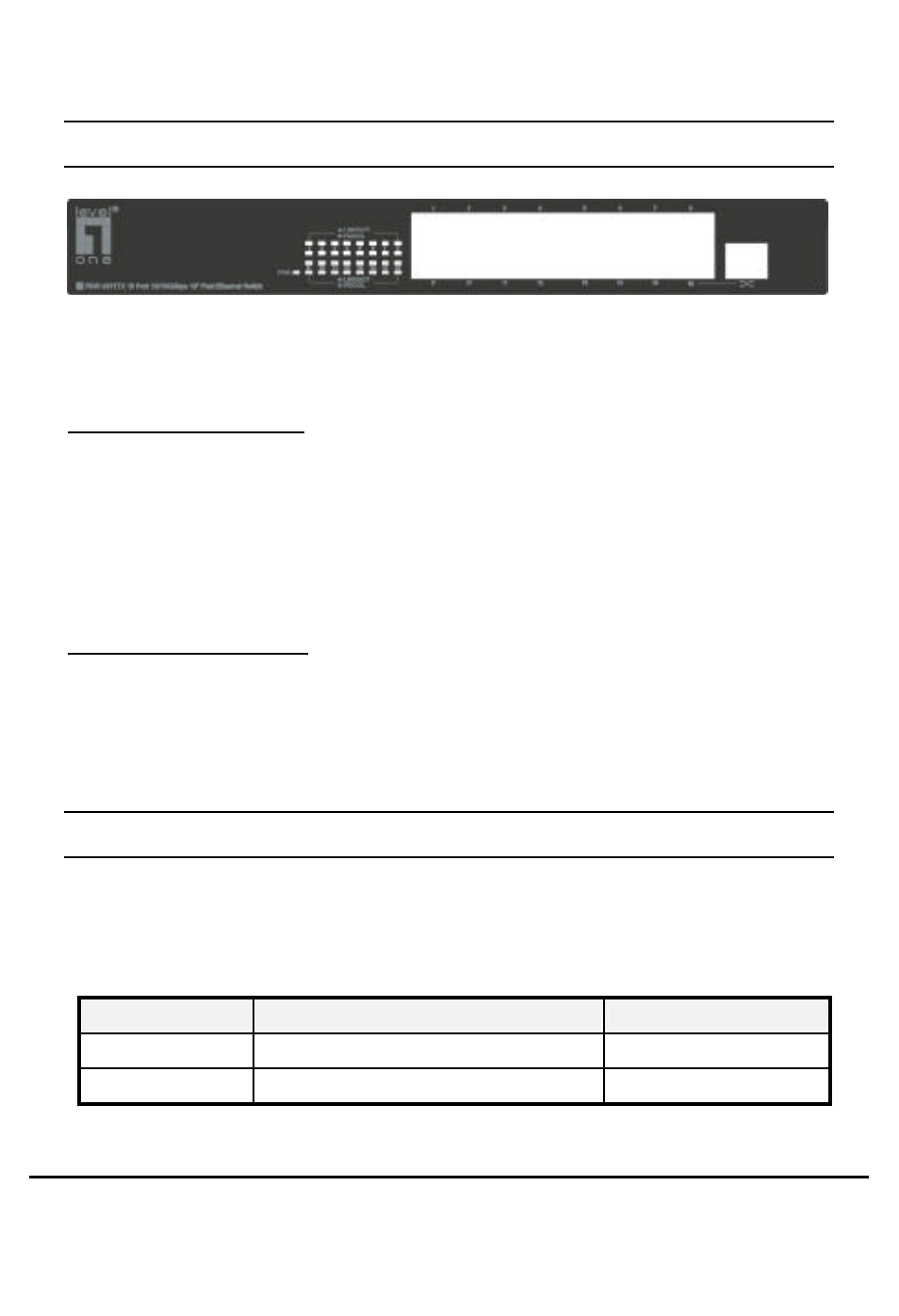

The Front Panel
LevelOne 16Port 10/100Mbps 13” Fast Ethernet Switch
Port Speeds
100/10Mbps TP Ports
Each 100/10Mbps TP port provides an Auto-Negotiation function that
senses for the attached device's maximum operating speed and
automatically sets the Switch to operate at that speed. Each TP port
uses RJ-45 connector that allows network TP cables to be easily
attached or removed. Users only need to connect a network device into
any TP port and the Switch will do the rest.
Crossover Connector
The last TP port in this model supports a Crossover function. The
Crossover function is used for Uplinking to a standard port on another
Switch using normal TP cable.
F Warning: You cannot use the last TP port’s regular port when you
are using the Crossover port.
Cabling
10Mbps – Category 3, 4, or 5 TP cabling can be used for transmitting
data at 10Mbps or 20Mbps bandwidth on 10BASE-T networks.
100Mbps – Only Category 5 TP cabling can be used for transmitting
data at 100Mbps or 200Mbps bandwidth on 100BASE-TX networks.
Port Type Cable Type Connector
10BASE-T Category 3, 4 or 5 TP RJ-45
100BASE-TX Category 5 TP RJ-45
Note: Category 5 TP cable should be used whenever installing new TP
