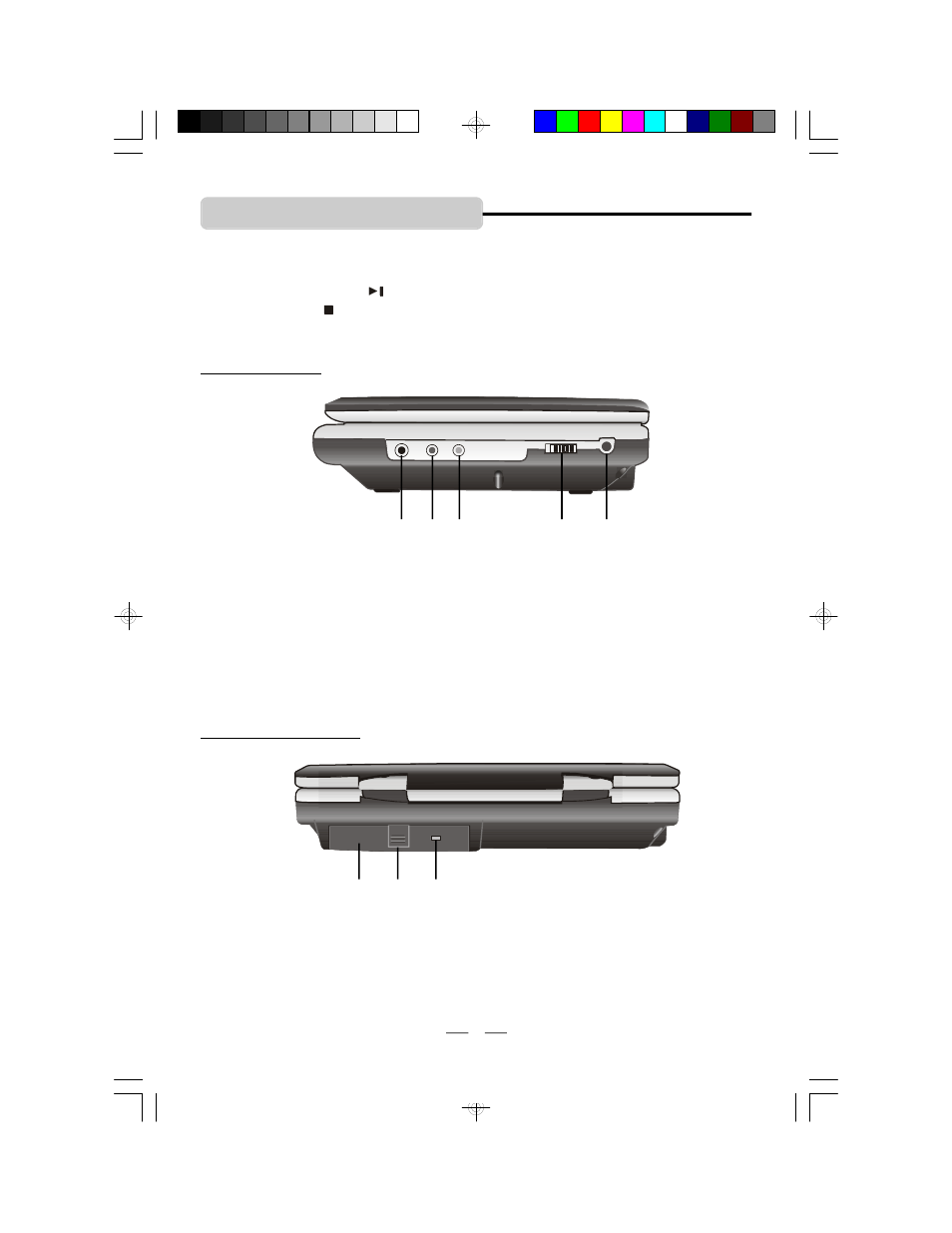

Right Side View
1 2 3 4 5
1. PHONES JACK – Insert your headphones (not included) to enjoy the sound without disturbing
others.
2. AUDIO OUT JACK – Connects the DVD player to your TV or home theater using the supplied
AUDIO cable for audio out.
3. VIDEO OUT JACK – Connects the DVD player to your TV using the supplied VIDEO cable
for video out.
4. POWER ON/OFF SWITCH – Slide to switch the DVD player ON or OFF.
5. DC IN JACK – For connecting to the supplied AC adaptor or car adaptor.
Rechargeable Battery
1. RECHARGEABLE BATTERY – For DC power supply.
2. BATTERY TAB – Push to remove the battery.
3. BATTERY LED INDICATOR – Will flash when battery is charging and remain steadily on
when battery is fully charged.
CONTROLS OVERVIEW
5
2 3 1
17. ZOOM / SLOW BUTTON – Press to zoom (enlarge or reduce) the playing picture in DVD
mode or hold more than 1 second to view slow motion playback.
18. PLAY/PAUSE BUTTON – Press to start or pause play..
19. STOP BUTTON – Stops playback, press twice for full stop.
20. VOLUME BUTTONS – Press to adjust the volume (left is – or less, right is + or more).
