WINDOW VENT PANEL AND EXTENSIONS

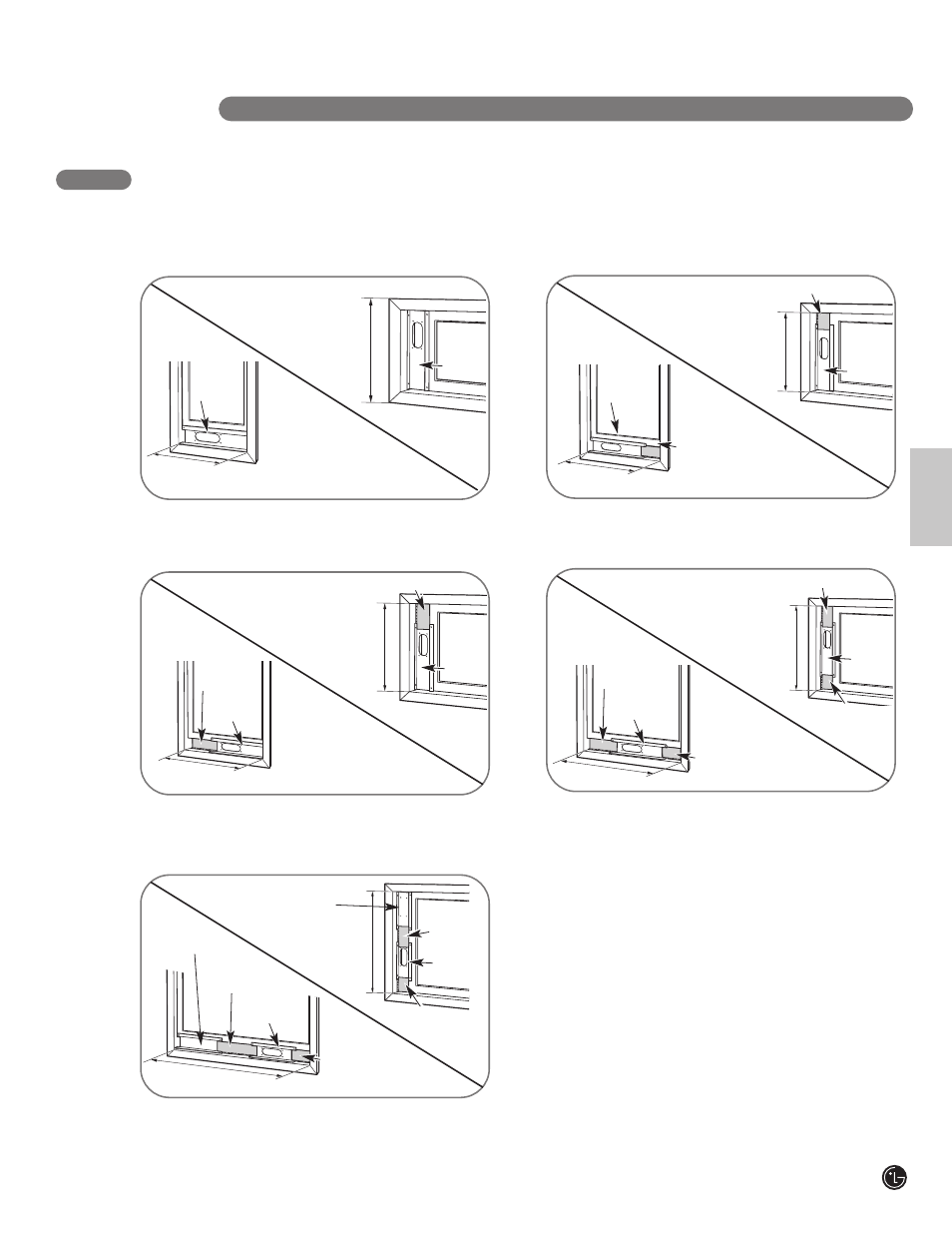

The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18"
to 48" wide, or casement-style windows from 18" to 48" high.
For an 18
" window opening, use the window
vent panel by itself.
For window openings from 18
1
⁄
4
" to 24",
use the window vent panel and the small
extension panel.
For window openings from 24
" to 29",
use the window vent panel and the large
extension panel.
For window openings from 29
" to 36", use the
window vent panel and both extension panels.
Vent
Panel
Small
extension
panel
Vent
Panel
18
"
18
"
Vent
Panel
18
1
⁄
4
" − 24"
18
1
⁄
4
" − 24"
Small extension
panel
Vent
Panel
Large
extension
panel
Vent
Panel
24
" − 29"
Large extension
panel
Vent
Panel
24
" − 29"
Large
extension
panel
Vent
Panel
29
" − 36"
Large extension
panel
Vent
Panel
29
" − 36"
Small
extension
panel
Small
extension
panel
For window openings from 36
″ to 48″, use both
vent panels and both extension panels.
Large
extension
panel
Vent
Panel
36
" − 48"
Large
extension
panel
Extension vent
panel
Extension vent
panel
Vent
Panel
36
" − 48"
Small
extension
panel
Small
extension
panel
