EXTERNAL EQUIPMENT SETUP
RS-232C IN
(SERVICE ONLY)
A
(R
RGB(PC) IN
SERVICE
ONLY
HDMI/DVI IN
HDMI-DTV OUTPUT

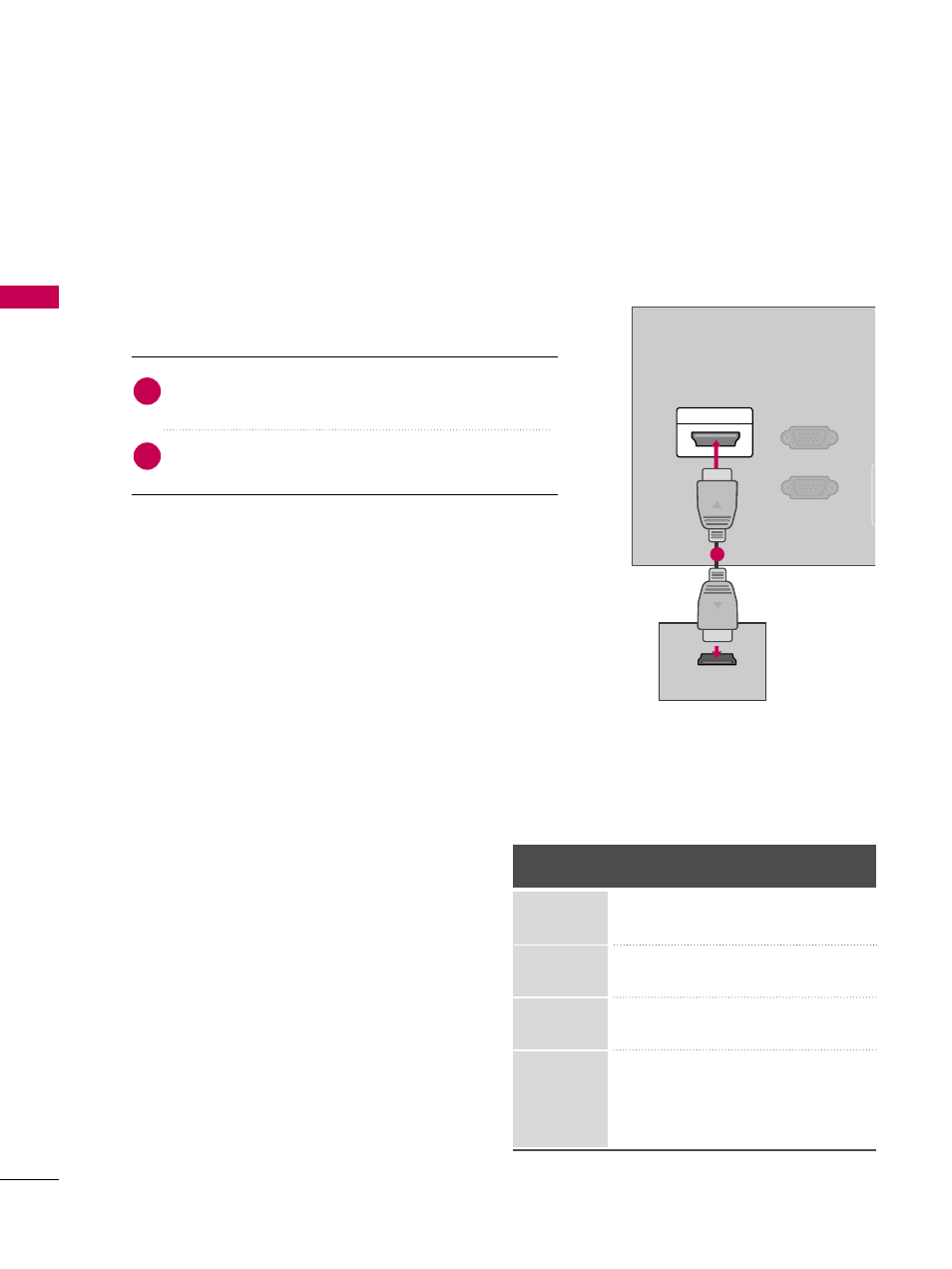

HDMI Connection
Connect the digital set-top box to H HD DM MII//D DV VII IIN N
jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■ Select the H HD DM MII input source on the TV using the IIN NPPU UT T
button on the remote control.
2
1
1
HDMI-DTV
Horizontal Vertical
Frequency(KHz) Frequency(Hz)
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
27.00 24.00
33.75 30.00
67.43 59.94
67.50 60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
19/22LG3**
