5. SCHEMATIC DIAGRAM

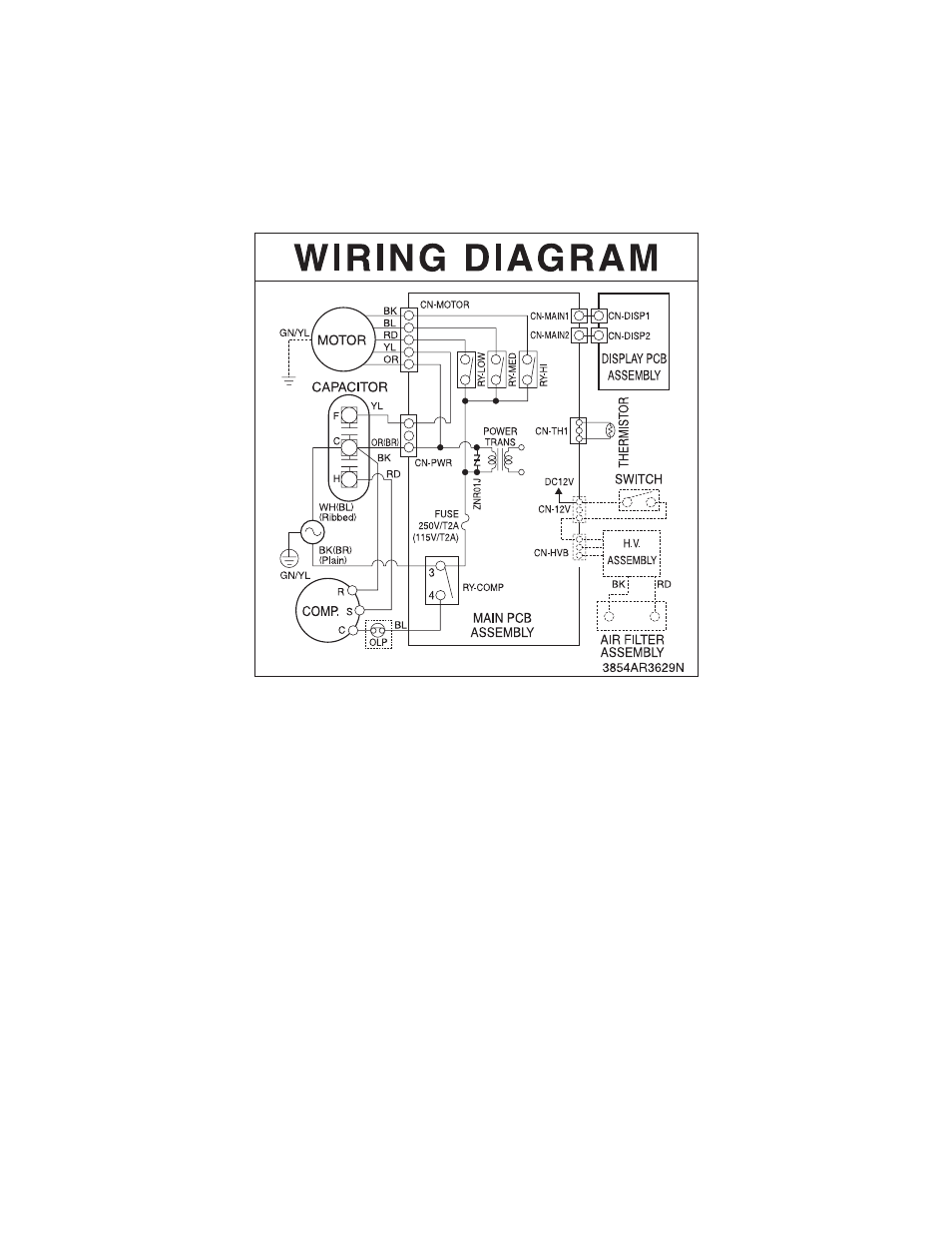

5.1 CIRCUIT DIAGRAM

• MODEL :

BG-101A/LT1010CR/LT121CSG/LT1210CR /LT0810CR/LT080CSG/BG-81A
LT1030CR/LT1230CR/BG-123A/LT1430CR
