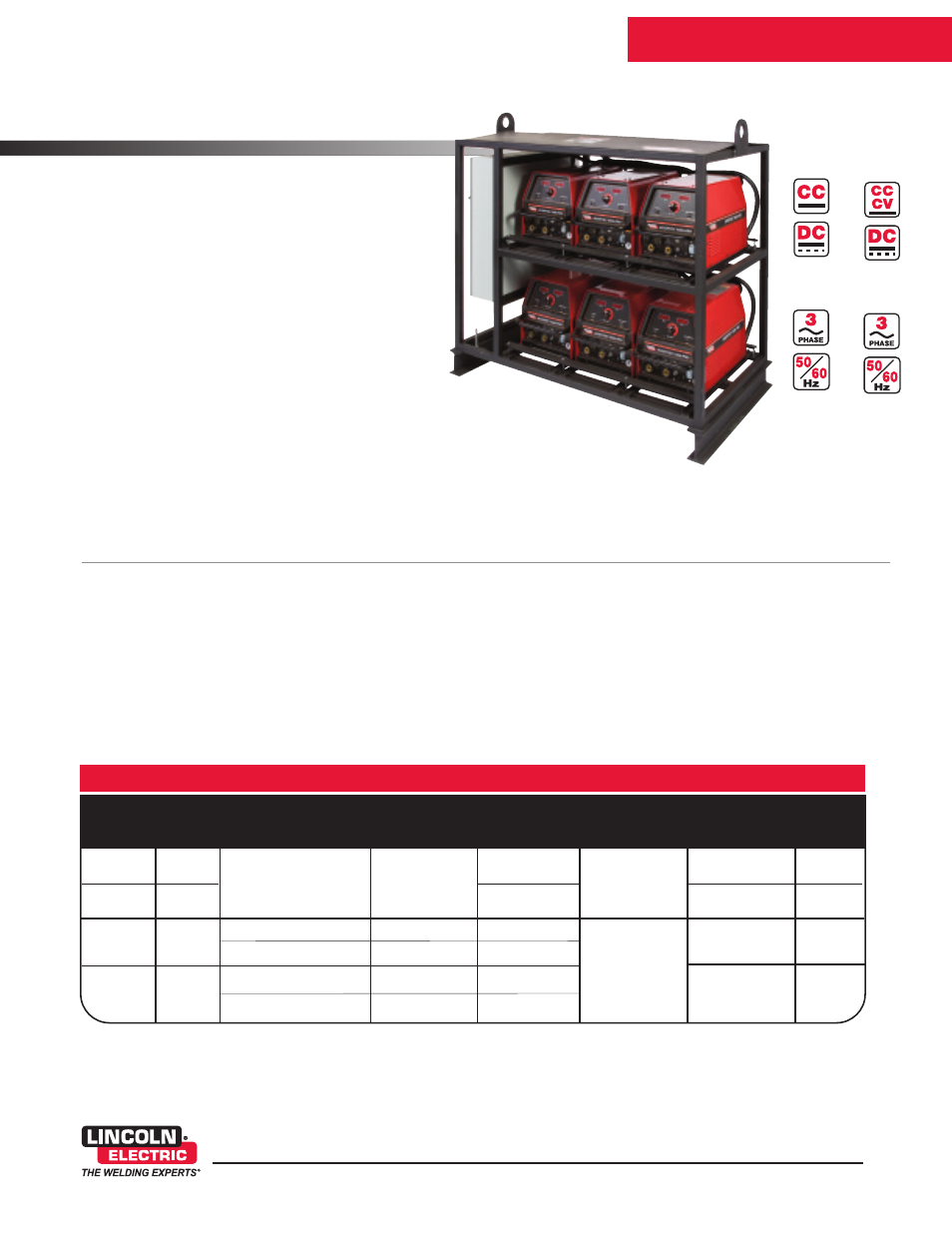

Inverter Racks
Featuring Invertec ® V350-PRO or
Invertec ® V275-S Power Sources
with Tweco ® Output Connections
MULTI-OPERATOR WELDING SYSTEMS
Lincoln Electric’s rack systems are ideal for grouping several inverter
power sources in a portable industrial-grade package. These inverter
racks are constructed of heavy gauge square tubular steel to ensure
long life, yet maintain an extremely compact size. Select the multi-
process Invertec ® V350-PRO Factory model in 4 or 6-pack
configuration or the stick and TIG-capable Invertec ® V275-S in 4 or
8-pack system. In either case, these systems are the only racks on the
market to feature weather-resistant IP23S-rated power sources and a
convenient standard main disconnect switch.
Publication E5.92 11/07
www.lincolnelectric.com
• Individual fuses provide overcurrent protection for each power
source.
• Standard length input cable insures the power sources can be placed in any
position on the rack.
• Two overhead lifting eyes, two fork lift slots, and four heavy duty optional
casters provide ease of portability.
• Optional Caster Kit available for Inverter Racks. Order K2665-1.
Advantage Lincoln
• One easy connection allows power sources to be connected with one
primary power drop.
• The power sources are factory installed in the rack and wired to the
main power distribution panel.
• Entire system meets National Electrical Code (NEC).
• 200 amp, 600 volt, 3 phase main disconnect switch.
V275-S: Stick, TIG, Gouging
V350-PRO: Stick, TIG, MIG, Flux-Cord, Gouging
Processes
Output
V275-S V350-PRO
Input
Output
Input
Rack Rated Output Rack Dimensions
Product Product Input Current/Voltage/ Input Current @ H x W x D Net Weight
Name Number Power(1) Duty Cycle(2) Rated Output Output Range in.(mm) lbs.(kg)
4-Pack Rack K2667-1 200/230/380-415/ 350A/34V/60% 128/67/57A 5-425A 55.7 x 44.5 x 33.5 796
V350-PRO 460/575/3/50/60 (1415 x 1130 x 851) (361)
6-Pack Rack K2667-2 171/90/76A 55.7 x 58.5 x 33.5 1039
V350-PRO (1415 x 1485 x 851) (471)
4-Pack Rack K2666-1 208/230/460/575/3/60 275A/31V/35% 96/89/46/39 5-275A 55.7 x 38.5 x 33.5 483
V275-S (1415 x 978 x 851) (219)
220/380/400/415/440/3/50 250A/30V/35% 89/53/53/50/46
8-Pack Rack K2666-2 208/230/460/575/3/60 275A/31V/35% 161/149/77/65 55.7 x 58.5 x 33.5 986
V275-S (1415 x 1485 x 851) (447)
220/380/400/415/440/3/50 250A/30V/35% 149/89/89/83/77
TECHNICAL SPECIFICATIONS
(1) Fused for 380/460/575/3/50/60 VAC operation. For 230 or 208 VAC operation, primary fuses must be changed.
(2) Based on a 10 minute period. Output is for each individual machine.
Note: Tweco ® is a registered trademark of Thermadyne.
