Evolution Cross-trainer 95X-ALLXX-01 95X-ALLXX-01

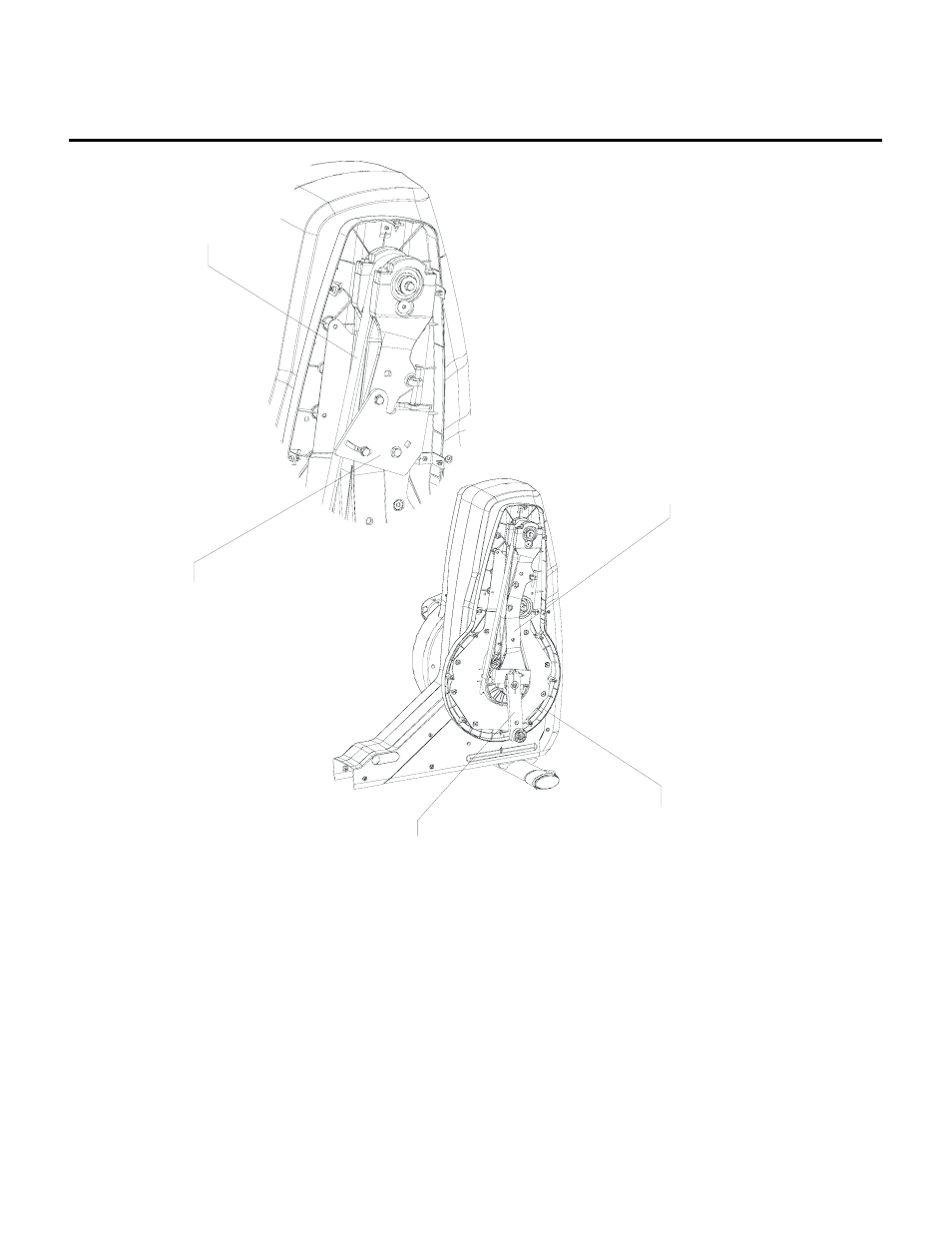

Rocker Assembly Components
S/N 100000 and up
Right Idler Bracket Assembly
Left Idler Bracket Assembly
Idler Bracket Mounting Screws (2)
Washer(s 2)
AK69-00029-0001
AK69-00029-0000
0017-00101-1951
0017-00104-0469
Timing Belt
0K69-01041-0000
Rocker Casting w/Pulleys
Left
GK69-00002-0003
Right
GK69-00002-0004
Inner Rocker Shroud Assembly
Inner Rocker Shroud
Mounting Screws (12)
Washers (12)
AK69-00123-0000
0017-00101-1953
0017-00104-0488
Crank Arm
Crank Arm Mounting Bolt
Hex Nut
Hex Key
AK69-00020-0000
0017-00101-1905
0017-00103-0333
0K69-01023-0000
