ProSpec Track Lighting
26000
Page 3 of 4 Track
Stem Mounting Kits
Mounts to a 4” Octagon outlet box. Use two per 4’
track, three per 8’ and 12’ track. When making a run
of track do not exceed 4’ between stems. Use addi-
tional stems for additional support. Power is fed to
the track with the stem closest to the track feed-in
point. For power feed to Feed Track and Live End, “L”,
“T”, “X”, In-line connectors. Stem can be field cut.
Not recommended for wall mounting.
18” Stem 48” Stem
Actual length for ceiling to top of track:
17 3/8” 47 3/8”
Matte White 7584 7586
Matte Black 7683 7681
Swivel Stem Mounting Kits
Adjusts from 0° to 90°. Can be field cut. 48” stem.
7480 Matte White
7481 Matte Black
Floating Invisible Feed
Can be mounted anywhere along the track at a
maximum distance of 4’ from edge of track extrusion.
Accepts conduit or cable with 3/8” or 1/2” electrical
connector (by others). Can be used with Feed Track,
Live End, “L”, “T”, “X”, and In-line connectors. Use
Track Mounting Clips to mount the track.
26082 Zinc Plated
Stem Extension Kit
Mounts to any system kit to extend its length to 48”.
Cannot be field cut.
7582 Matte White
7680 Matte Black
Power Extension Connector
(Live End)
Replaces Dead End Cover at end of track to permit
power continuity around structural obstructions to
another track section. Not polarized. Can be fed
directly from surface or from ceiling using a 3/8”
or 1/2” electrical connector (by others).
26046WH Matte White
26046BK Matte Black
Over Beam or Through Beam
Through Wall or Column

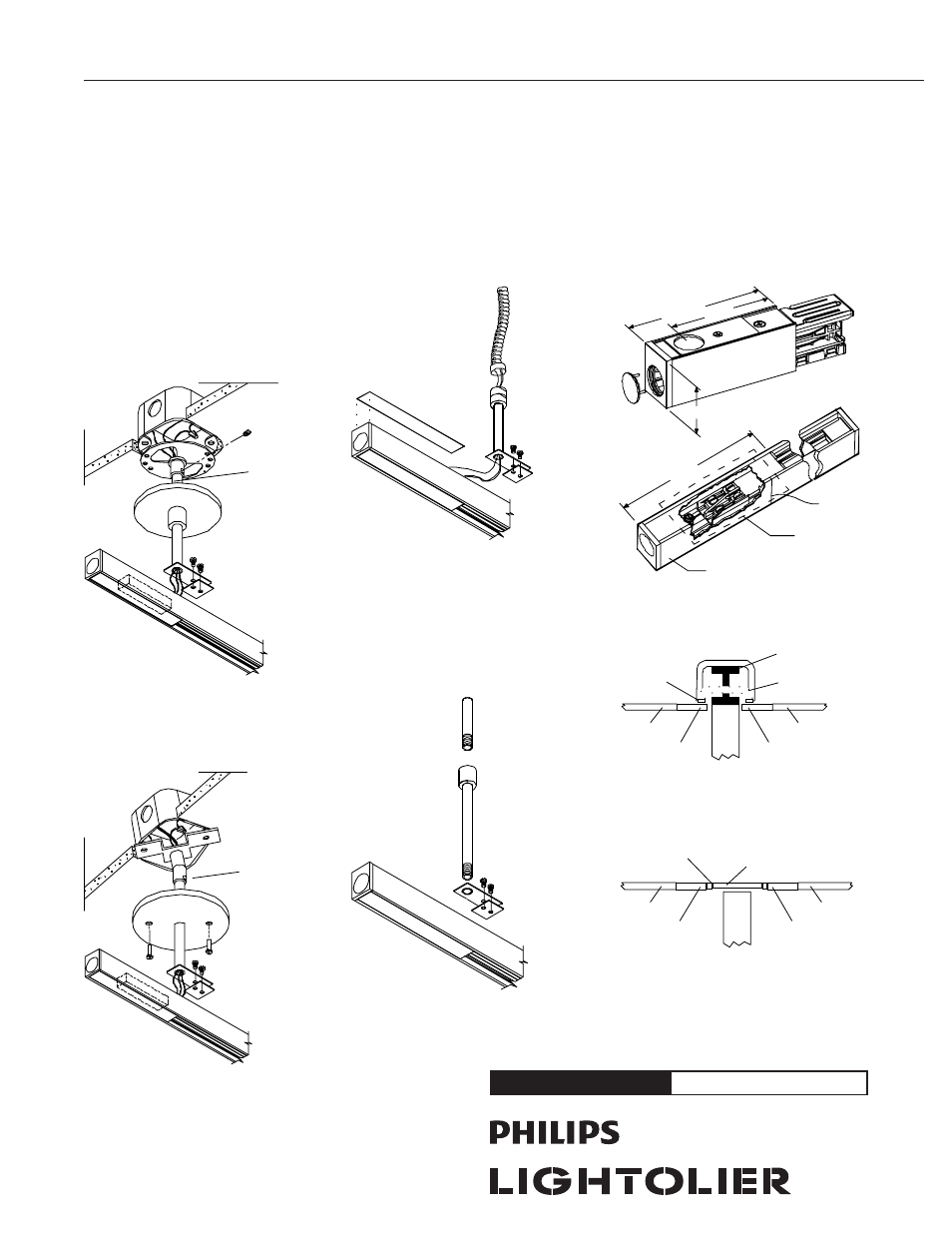

Track Mounting and Power Feed Systems
3" or 4" Octagon
Outlet Box
(by others)
This end may be
field cut.
Stem 1/4"-18
NPSM Thread
Clamp Set
Feed Track
3" or 4" Octagon
Outlet Box
(by others)
0ϒ - 90ϒ Ceiling
Slope
This end may be
field cut.
Stem 1/4"-18
NPSM Thread
Clamp Set
Feed Track
Clamp Set
Feed Track
Wire Cover
Electrical
Fitting
(by others)
Stem Extension
1/2" O.D. Steel
Tube
1/4 - 18 NPSM
Thread.
Clamp Set
Line
Joint
See Detail A
(pg. 4)
Power Ext.
(Live End)
5-7/8"
1-3/16"
4-3/16" 3-1/8"
3/8"
Connector
Beam
Jump
Track Track
Power Extention
Connector
Wall
Power Extention
Connector
3/8" Connector
Jump (Conduit)
Track Track
Power Extention
Connector
Power Extention
Connector
Wall
Line
Joint
See Detail A
(pg. 4)
Power Ext.
(Live End)
5-7/8"
1-3/16"
4-3/16" 3-1/8"
