Lightolier 1101FDM - Manual

Performance Recessed CFL Downlighting
1101FDM
Page 1 of 1 Lytecaster 6 ¾" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0408
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe ™
Frame-In Kit
Uniframe ™ Compact Fluorescent Performance Series Reflector Trims
Vertical Open Vertical Wall
Wash - Single Vertical Wall
Wash - Double Horizontal
Open Horizontal Wall
Wash - Single Horizontal Wet Location
Lensed / Diffused Horizontal
Cross Blade
1101FD2642MX1
(Advance Mark 10 - 120v)
1101FD2642MX2
(Advance Mark 10 - 277v)
1101FD2642M7U
(Advance Mark7 -120/ 277v)
26w Quad/Triple
GX24q-3 Base
120v – 0.26amp max
277v – 0.11amp max
32w Triple
GX24q-3 Base
120v – 0.32amp max
277v – 0.14amp max
42w Triple
GX24q-4 Base
120v – 0.41amp max
277v – 0.18amp max
1101CL
1101CD
1101WH 1101CLSW
1101CDSW
1101WHSW 1101CLDW
1101CDDW
1101WHDW 1101HCL
1101HCD
1101HWH 1101HCLSW
1101HCDSW
1101HWHSW Clear Lens Fresnel
1101HCLC 1101HCLF
1101HCDC 1101HCDF
1101HWHC 1101HWHF
Opal Lens
1101HCLO
1101HCDO
1101HWHO
1101HACB
1101HWHCB
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Performance Cone Cone Satin Cone Baffle Wall Wash Wet Location
1113CFL
1113CDCFL 1112*
1113*
1113BK*
1113WH
1113CD*
1145
1146 / 1146CD
1143
1144 / 1144CD 1108*
1110* 1105*
1105BNM
1105WH
1176
1176WH 1135
1135WH
1195
1196
1196CD 1121
1124
1134
1177SH
1178SH
1190

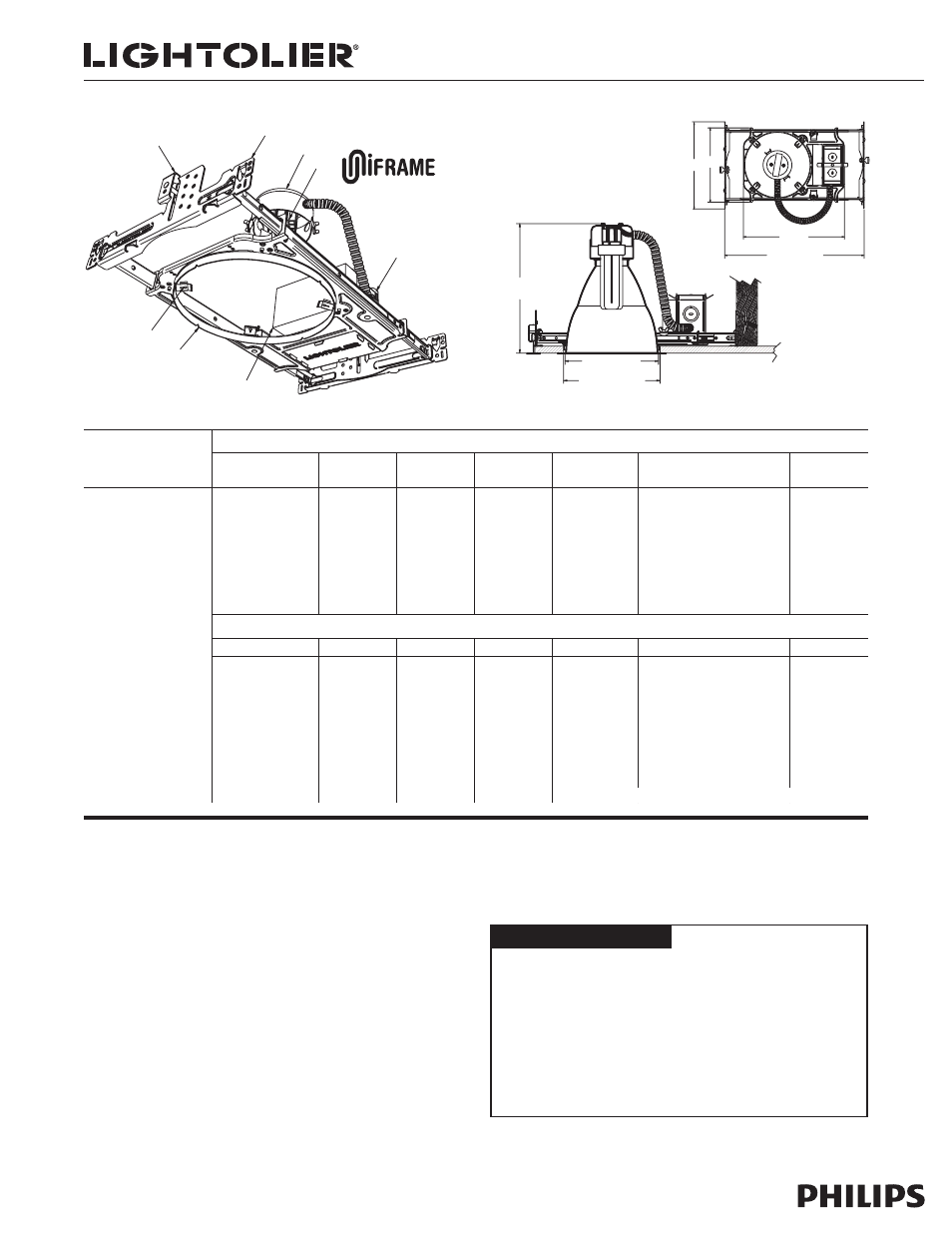

Features
1. Mounting Frame: .036" (#20ga.) Galvanized Steel. Accommodates all ceil-
ings up to 1-1/2" thick; including existing or inaccessible areas.
2. Trim Clips: “Push In / Twist Out” Stainless Steel clips hold reflector flush to
ceiling.
3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel.
UL Listed for maximum of 8 (#12ga.) through branch circuit conductors.
4. Uniframe ™ Mounting System – Grid Ceiling: Tool free mounting in grid
ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to
24-1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps
for positive attachment to grid ceiling systems.
5. Uniframe ™ Mounting System – Wood Joist Ceiling: Integral nailing
tabs, alignment guides, fastener holes and bendable strapping guides for
wood joist installation. Galvanized Steel interlocking slide bars adjust from
12-15/16" to 24-1/8" long to accommodate 16” and 24” O.C. joist spacing,
with or without strapping.
6. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protec-
tion, class “P” thermally protected, class “A” sound rating.
7. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
8. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflec-
tor trim by spring clip for precise optic alignment.
FOR O.A. HEIGHT SEE
TRIM SPECIFICATION
6 3/4" FRAME
APERTURE
6 15/16" CEILING
CUTOUT
1
2
3
6
4
5
7
8
9" 7 3/4"
10 1/2"
12 15/16" MIN
24 1/8" MAX
Labels
cULus Listed. Suitable for Damp Locations.
Accessories
1967A Extra Thick Ceiling Adapter (up to 2" thk)
*Add NM suffix to catalog number for Natural Metal flange and finish.
