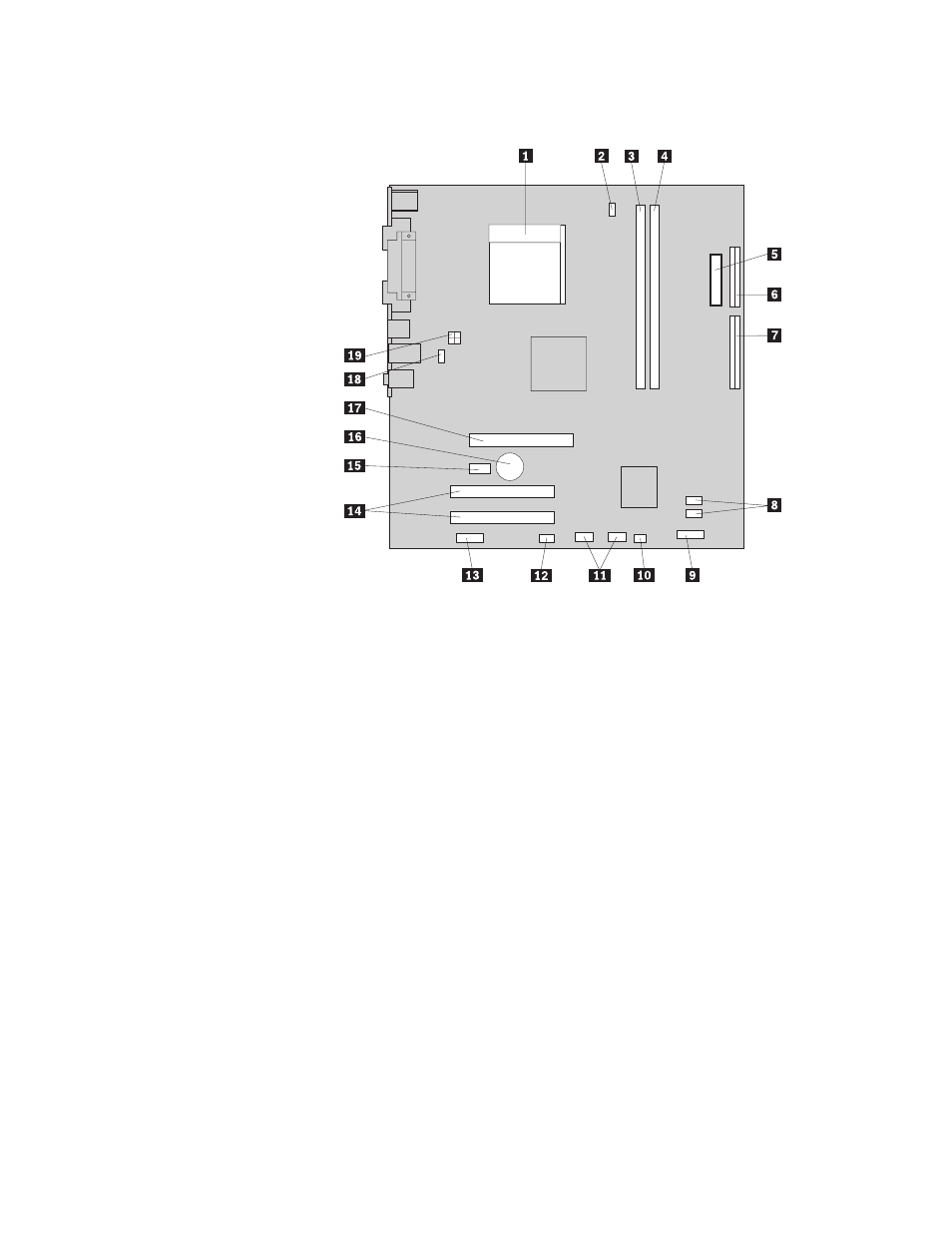

The

following

illustration

shows

the

locations

of

parts

on

the

system

board

for

some

computer

models.

1

Microprocessor

and

heat

sink

11

Front

USB

connectors

(2)

2

Microprocessor

fan

connector

12

Serial

(COM)

connector

3

Memory

connector

1

13

Front

audio

connector

4

Memory

connector

2

14

PCI

adapter

connectors

(2)

5

Power

connector

15

PCI

Express

x1

adapter

connector

6

Diskette

drive

connector

16

Battery

7

IDE

connector

17

PCI

Express

x16

graphics

adapter

connector

8

SATA

IDE

connectors

(2)

18

System

fan

connector

9

Front

panel

connector

19

12v

power

connector

10

Clear

CMOS/Recovery

jumper

Chapter

1.

Locations

5
