31
3. SETUP AND CONNECTIONS

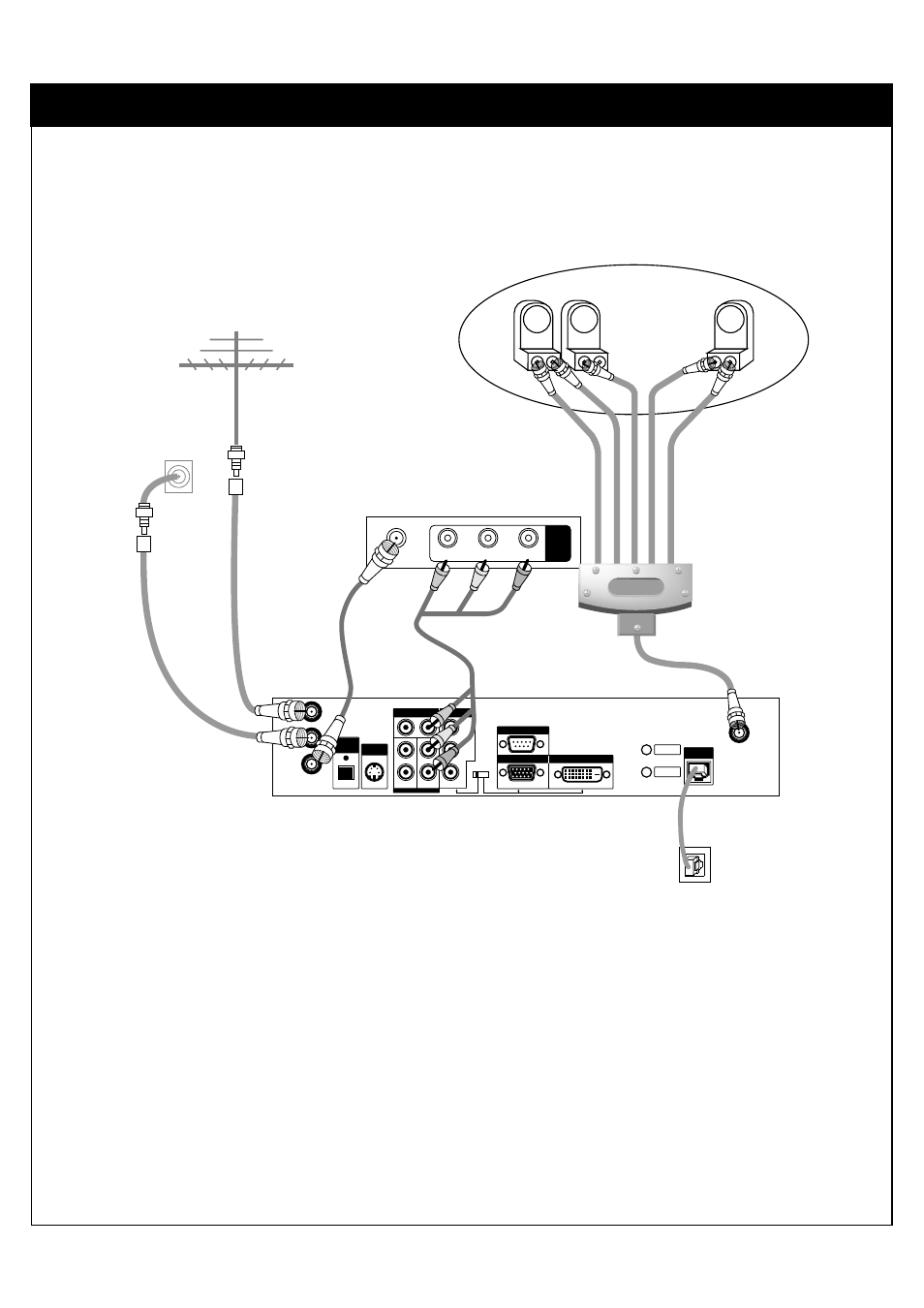

3-6. VCR Connection
ANT.IN V L R
IN
(1080i/720p/480p) (1080i/720p/480p)
RGB OUT
DATA PORT
DVI-HDTV OUT
SATELLITE
IN
TYPE
CABLE IN
ANT IN
OUT TO TV
Y
COMPONENT OUT
(1080ii/720p/480p/480ii)
Pr
1
L2
R2 R1
L1
2
AUDIO OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT S VIDEO
OUT
VCR
CONTROL
RF
REMOTE
(1080ii/720p/480p/480ii)
PHONE
JACK
VIDEO OUT
Antenna
Cable TV
wall jack
VCR
Phone wall jack
LNB
Sat B LNB
Sat C LNB
Sat A
Dish
5x4 Multi-switch
Output
TV Viewing
Refer to Section 3-5, ‘TV Connection’.
VCR Recording
1. Connect the “OUT TO TV” jack on the DIRECTV ® HD Receiver to the “ANT IN” jack on your VCR using a
coaxial RF cable.
2. Connect the “AUDIO OUT” and “VIDEO OUT” jacks on the DIRECTV HD Receiver to the “A/V IN” jacks on
your VCR using RCA-type cables. (If your VCR is equipped with an S-Video jack, use the “S-Video” jack.)
Note: The OUT TO TV and VIDEO OUT(480i) 1, 2 jacks are always available sources output no matter
what the display format is selected.
