ENGLISH
6 AKURATE 2200 • 3200 • 4200

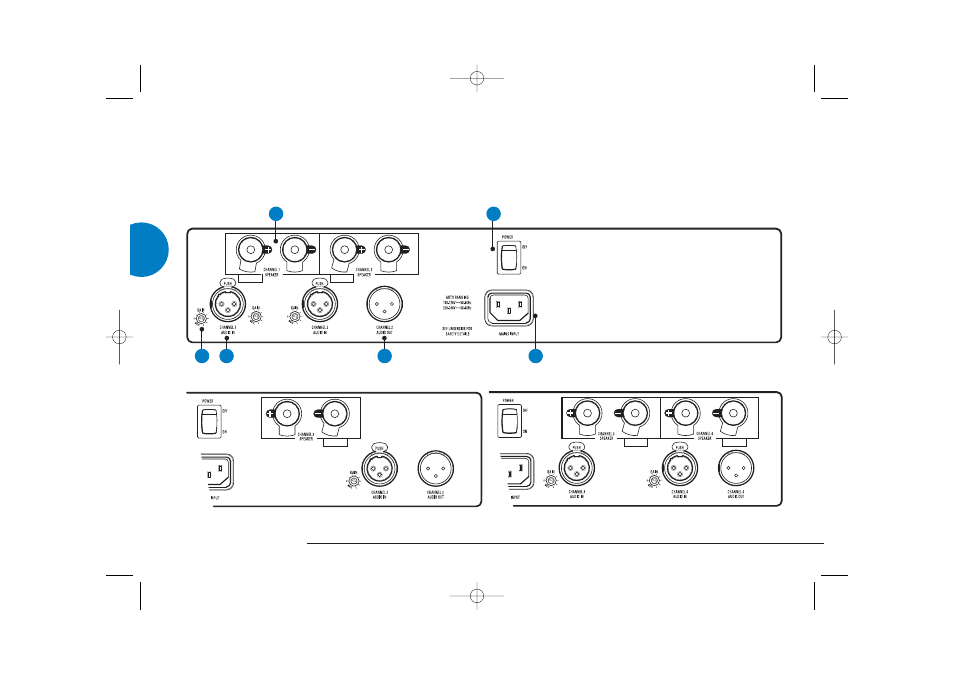

Back panels (Balanced)
Notes:
The connections and adjustments indicated by numbers 1 to 3 are repeated for each channel. See Back panel connectors and switches (page 4)
for further details.
2200B
3200B Left side as above - additional channels shown below 4200B Left side as above - additional channels shown below
