7
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2

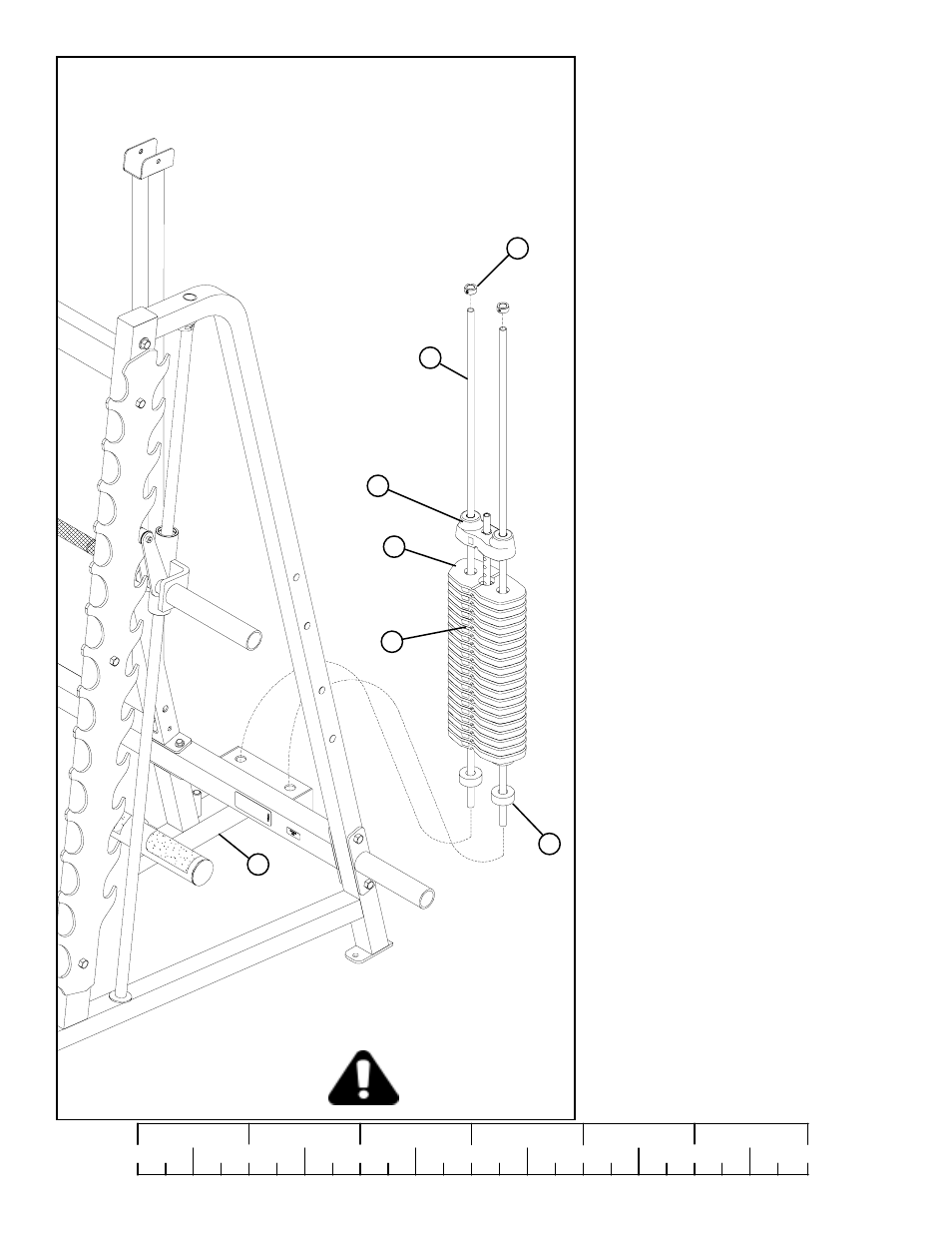

FIGURE 5
STEP 5:
• Insert two GUIDE RODS (6) into the STACK
BASE (3) as shown in FIGURE 5. Lubricate
the GUIDE RODS (6) with a silicon or teflon
spray that is available at most hardware stores.
• Slide two WEIGHT STACK CUSHIONS
(26) down over the GUIDE RODS (6). See
FIGURE 5.
• Using EXTREME CARE slide twenty
WEIGHT PLATES (25) down over the GUIDE
RODS (6) with the key-hole facing as shown
in FIGURE 5.
• Apply one WEIGHT STACK LABEL (28) to
the HEAD PLATE (36) and to each WEIGHT
PLATE (25) as shown in FIGURE 5.
• Slide two 13/16” SHAFT COLLARS (15)
over the GUIDE RODS (6) as shown in
FIGURE 5.
6
25
26
3
28
15
• Carefully Slide the HEAD PLATE ASSEMBLY
(36) down over the GUIDE RODS (6) onto the
weight stack as shown in FIGURE 5.
HEAD PLATE
ASSEMBLY 36
