Chest Press

Assembly Instructions

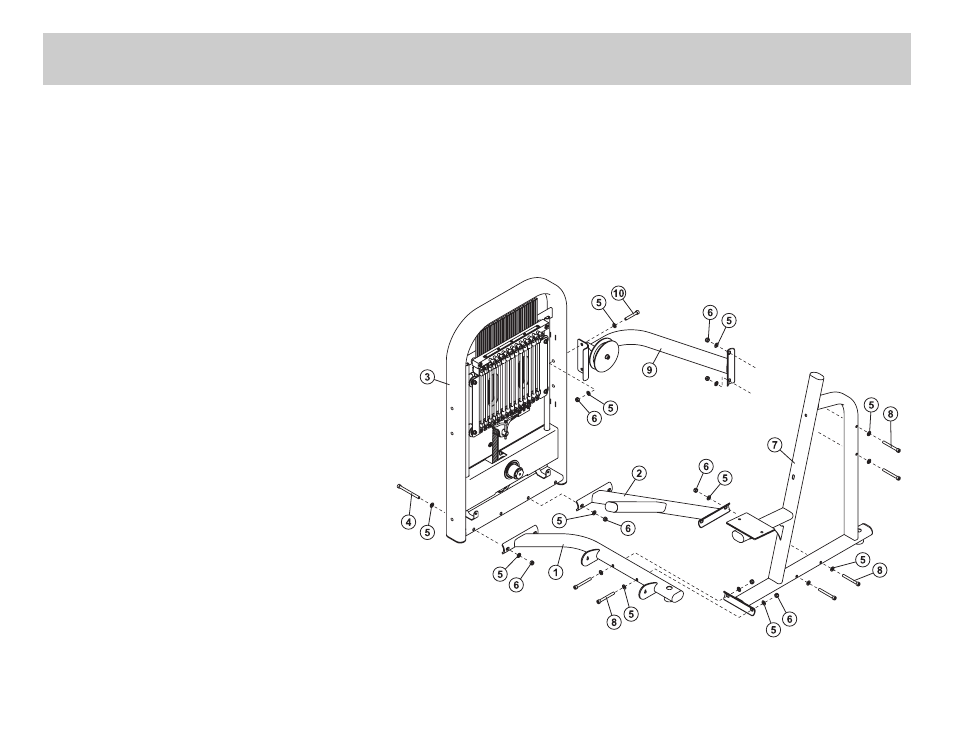

1. LOOSELY assemble the FRONT BRACE (1) and REAR BRACE (2) to the

TOWER (3) using four M10 X 130mm BOLTS (4), eight 3/8" SAE WASH-
ERS (5) and four M10 NYLOCK NUTS (6) as shown.

2. LOOSELY assemble the SEAT FRAME (7) to the FRONT BRACE (1) and

REAR BRACE (2) using four M10 X 90mm BOLTS (8), eight 3/8" SAE
WASHERS (5) and four M10 NYLOCK NUTS (6) as shown.

3. LOOSELY assemble the TOP BRACE (9) to the SEAT FRAME (7) and

TOWER (3) using two M10 X 90mm BOLTS (8), four 3/8" SAE WASHERS
(5) and two M10 NYLOCK NUTS (6) at the SEAT FRAME and two M10 X
70mm BOLTS (10), four 3/8" SAE WASHERS (5) and two M10 NYLOCK
NUTS (6) at the TOWER as shown.

4. Tighten all BOLTS and NUTS securely.
