2.1 Panel Layout
2.1.1. Front Panel

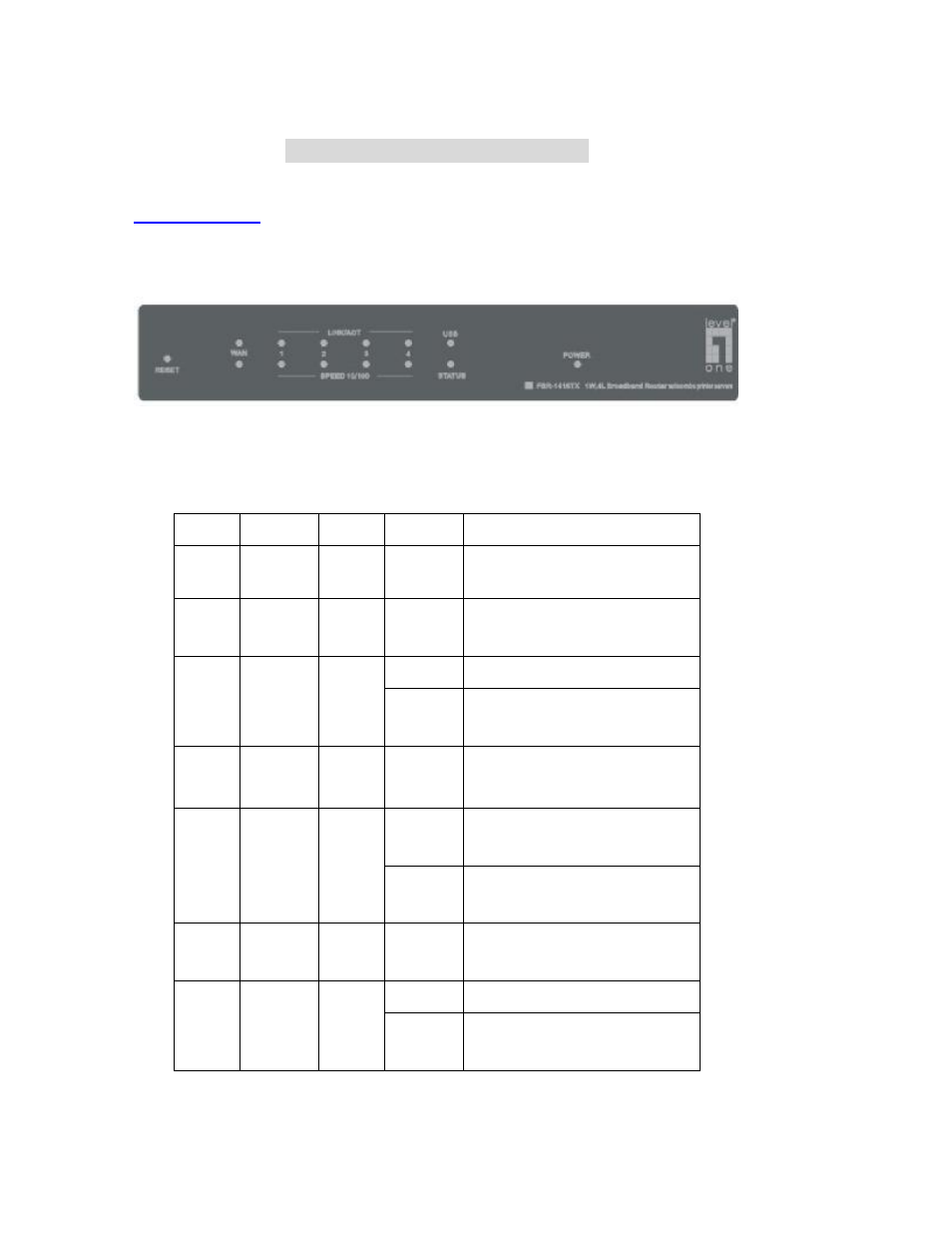

Figure 2-1 Front Panel
LED:
LED
Function
Color
Status
Description
POWER
Power
indication
Green
On
Power is being applied to this product.
STATUS
System
status
Green
Blinking
This product is functioning properly.
On
The WAN port is linked.
WAN
WAN port
activity
Green
Blinking
The WAN port is sending or receiving
data.
Reset
reset
--------
--------
To reset system settings to factory
defaults
On
An active station is connected to the
corresponding LAN port.
Link/Act.
1~4
Link status Green
Blinking
The corresponding LAN port is
sending or receiving data.
10/100
Data Rate
Green
On
Data is transmitting in 100Mbps on
the corresponding LAN port.
On
The USB printing port is linked.
USB
USB port
activity
Green
Blinking
The USB port is sending or receiving
data.
※For details, please refer to Appendix B, Reset to factory default .
