8

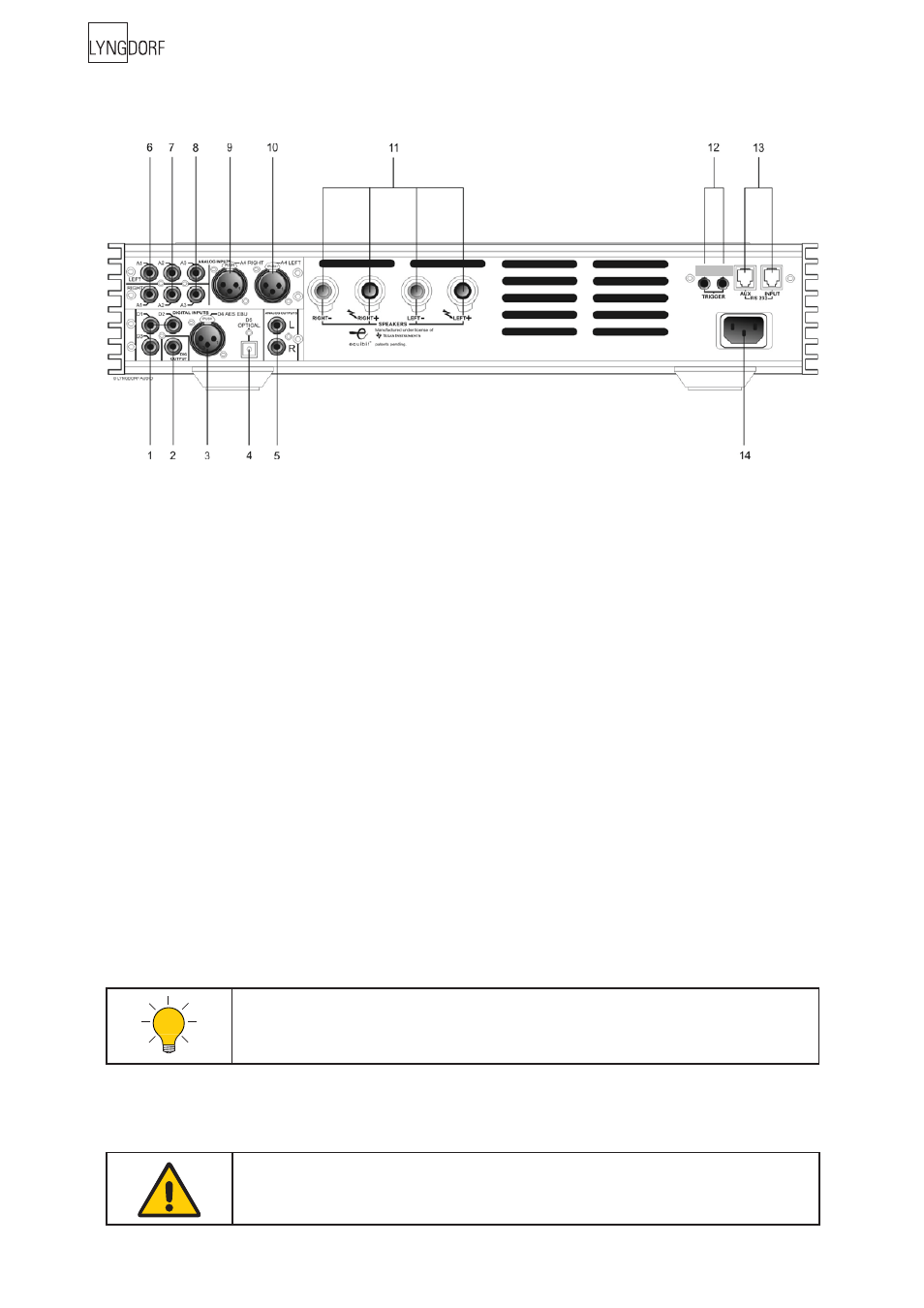

Rear Panel
1. Digital Input 1-3
RCA connectors for SPDIF input
2. Digital Output
Selected digital input is sent – full range or fi ltered via the DSP - to the Digital Output connector for daisy-
chaining more than one TDAI 2200. The sample rate is fi xed at 96 kHz. This output is also active when
Analog input is selected.
3. Digital input 4
XLR Connector for AES input
4. Optical Digital input 5
Connector for Toslink input
5. Analog output
DAC output from DSP Section
6-8. Input
Single-ended Analog input L/R pairs 1-3
9-10. Input
Balanced Analog input L/R number 4
The connectors from 6-10 are only available if the optional AD-Converter module is
mounted.
11. Loudspeaker terminals
Loudspeaker output.
All Outputs are bridged and must never be connected to ground because of the DC
offset to chassis
MIC TRIGGER
OUT
