Location
Bolt / nut size
P/N
Min. torque
Max. Torque
Ft-Lbs (in-lbs)
Ft-Lbs (in-lbs)
Housing to engine face
5/16-24 x 3/4 flange head
910503
22 (264)
28 (336)
Deck to housing
5/16-18 flange nut
114-B
16 (192)
22 (276)
Engine to deck
5/16-18 x 1.5/1.75 gr 5
113/942
19 (228)
25 (300)
Lower handle to deck
5/16-18 x 1.75 gr 5
942
19 (228)
25 (300)
Upper handle to lower handle
5/16-18 x 1.75 gr 5
942
19 (228)
25 (300)
Throttle to handle
1/4-20 X 1.5 gr 2
378
4 (48)
6 (72)
Interior deflector to hook
10-32 x .625 flange head gr 5
329
(52)
(71)
Fan to crankshaft
( 9900)
7/16-20 x 1.5 flange head gr 5
910508
61
81
Fan to crankshaft
(9100, 9130, 9600, 9810)
3/8-24 x 1.5 flange head gr 5
910518
39
51
Front panel to housing (short stud)
5/16-18 flange nut
114-B
16 (192)
22 (276)
Intake guard clamp (long stud)
5/16-18 muloc nut
114-C
—
8 (100)
Wheel bracket to housing
5/16-18 flange nut
114-B
16 (192)
22 (276)
Front wheel axle bolt
3/8-16 x 5.25 gr 5
900501
34
45
B
LOWER
B
OLT
/
NUT
T
ORQUE
S
PECIFICATIONS
Page 9

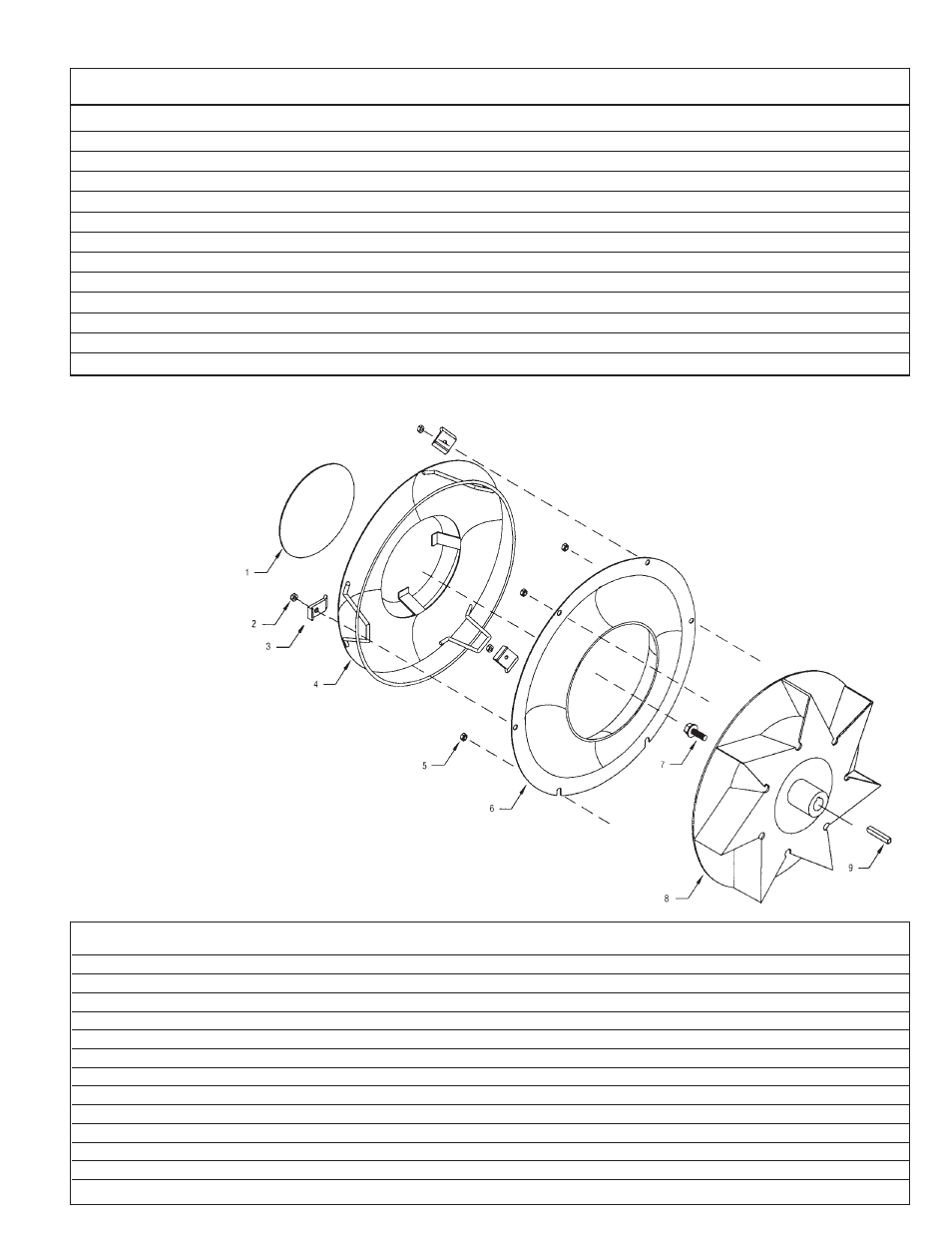

Key
Part
Description
Quantity Per Model Number
#
#
9600
9810
9900
9100
9130
1
910610
Intake Guard Label
1
1
1
1
1
2
114C
5/16-18 Nylon Insert Nut
11
11
11
11
11
3
911130
Intake Guard Clamp
3
3
3
3
3
4
911100
Intake Guard Assy
1
1
1
1
1
5
114B
5/16-18 Serrated Flanged Lock Nut
14
14
14
14
14
6
911120
Front Panel
1
1
1
1
1
7
910508
7/16-20 x 1 1/2 Serrated Flange Bolt gd 5
-
-
1
-
-
7
910518
3/8-24 x 1 1/2 Serrated Flange Bolt gd 5
1
1
-
1
1
8
910200
6 HP Fan
1
-
-
-
-
8
910210
8 HP Fan
-
1
-
-
-
8
910220
9 HP Fan
-
-
1
-
-
8
910230
10 HP, 13 HP Fan
-
-
-
1
1
9
915
Key 1/4 x 1/4 x 2
1
1
1
1
1
