2-1
SECTION2 CABINET & MAIN FRAME

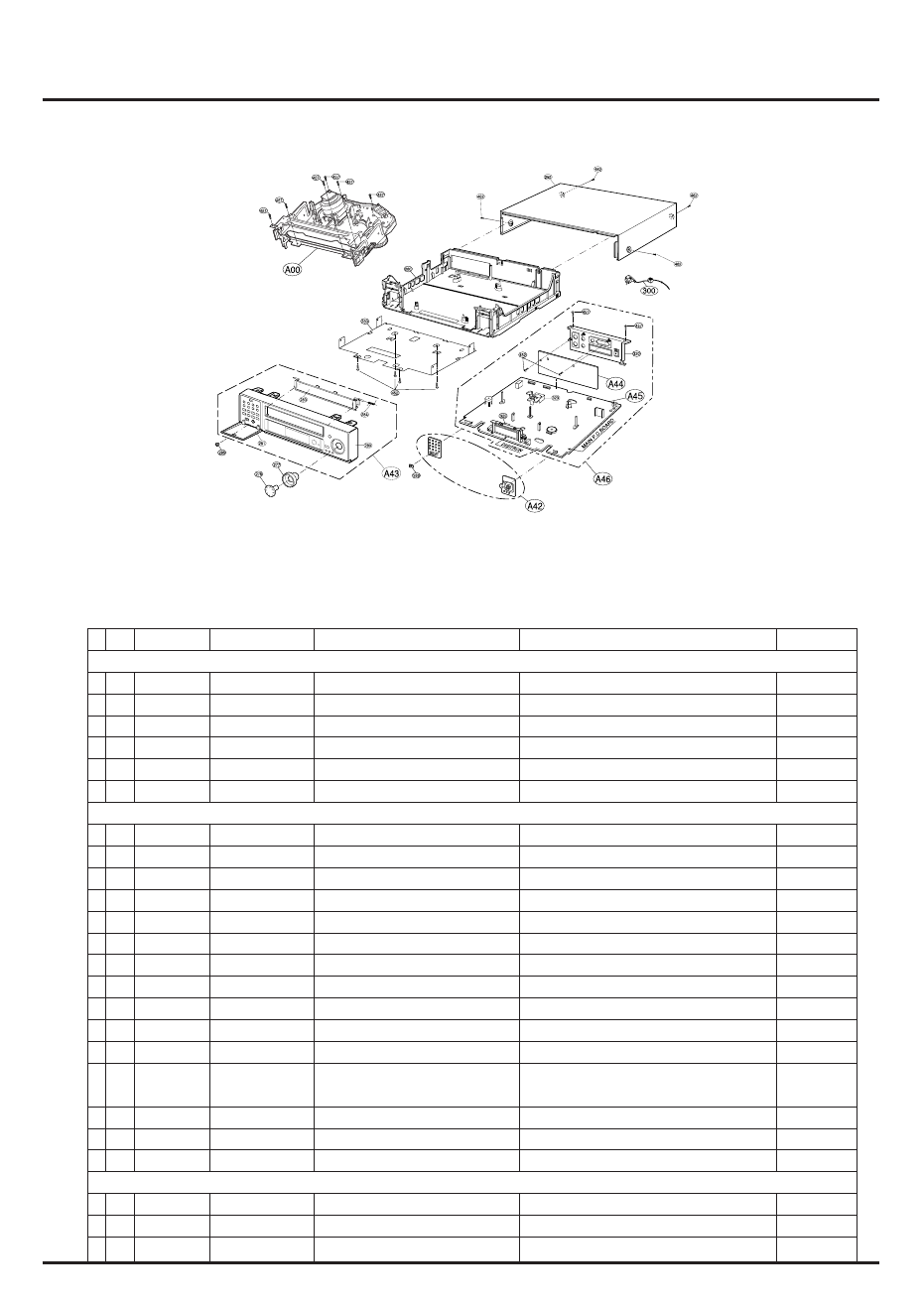

EXPLODED VIEWS
1. Cabinet and Main Frame Section
Cabinet & Main Frame Section Parts list
MODEL : TL-AT130M
S AL LOCA.NO. PART
NO
DESCRIPTION
SPECIFICATION
REMARKS
ASSEMBLY SECTION
A00
6721R-0771U
DECK ASSEMBLY,VIDEO
DECK/MECHA D35 LG T/L (4HD(ALL
A42
6871R-8283A
PWB(PCB) ASSEMBLY,TOTAL T/L VCR KEY2 JOG/SHUTTLE
A43
3721R-F826D
PANEL ASSEMBLY,FRONT
CCD TIME LAPSE PANEL FRONT ASS
A44
6871R-4462A
PWB(PCB) ASSY,TOTAL
TL-AR30 (SERIES) - W. RS232C -
A45
6871R-7050B
PWB(PCB) ASSEMBLY,TOTAL T/L VCR TL-AT130M MAIN
A46
3501R-7050B
BOARD ASSEMBLY
VCR TL-AT130M MAIN
PARTS SECTION
250
3110R-S040F
CASE
LV-TL1960 2960 MOLD AIRHALL BA
260
3210R-0023A
FRAME
VCR - MAIN
277 4940R-Z075A
KNOB
SHUTTLE(TL-AR30M)
278
4940R-Z076B
KNOB
CCD TL-AT130 MOLD
280
3720R-F721D
PANEL,VIDEO
CCD LV-TL1960 S MOLD HIPS 40AF
281
524-013A
MAGNET
VCR - ASSY DOOR
283
3580R-V090A
DOOR
CCD TIME LAPSE MOLD DOOR CST
284 442-681A SPRING
DOOR
285
4940R-Z086A
KNOB
CCD LV-TL124 MOLD
286 4940R-S017A
KNOB
SLIDE
(LV-TL24)
300
6410RZHV01A
POWER CORD
IT10S2(6A/250V) VOLEX IMMETRO
320
3721R-D031N
PANEL ASSEMBLY,
LV-TL1960S 2960S NEW ASSY (RS-
DISTRIBUTOR[NOR
323
3111R-0089B
CASE ASSY
PRE-AMP (PBSB-SH)
325 4931R-0024D
HOLDER
ASSEMBLY
DIGI(MONO-ENABLE)
330 3550R-0210A
COVER
BOTTOM(LARGE)
SCREW
452 353-051A SCREW,DRAWING
SPECIAL
457 353-051E SCREW,DRAWING
SPECIAL
(3X12)
462 353-136A SCREW,DRAWING
SPECIAL(FBK)
(353S353A)
RUN DATE : 2004.03.12
