Deck mechanism disassembly, Plate top (fig. a-2-1), Holder assembly cst (fig.a-2-2) – LG TL-AT130M User Manual

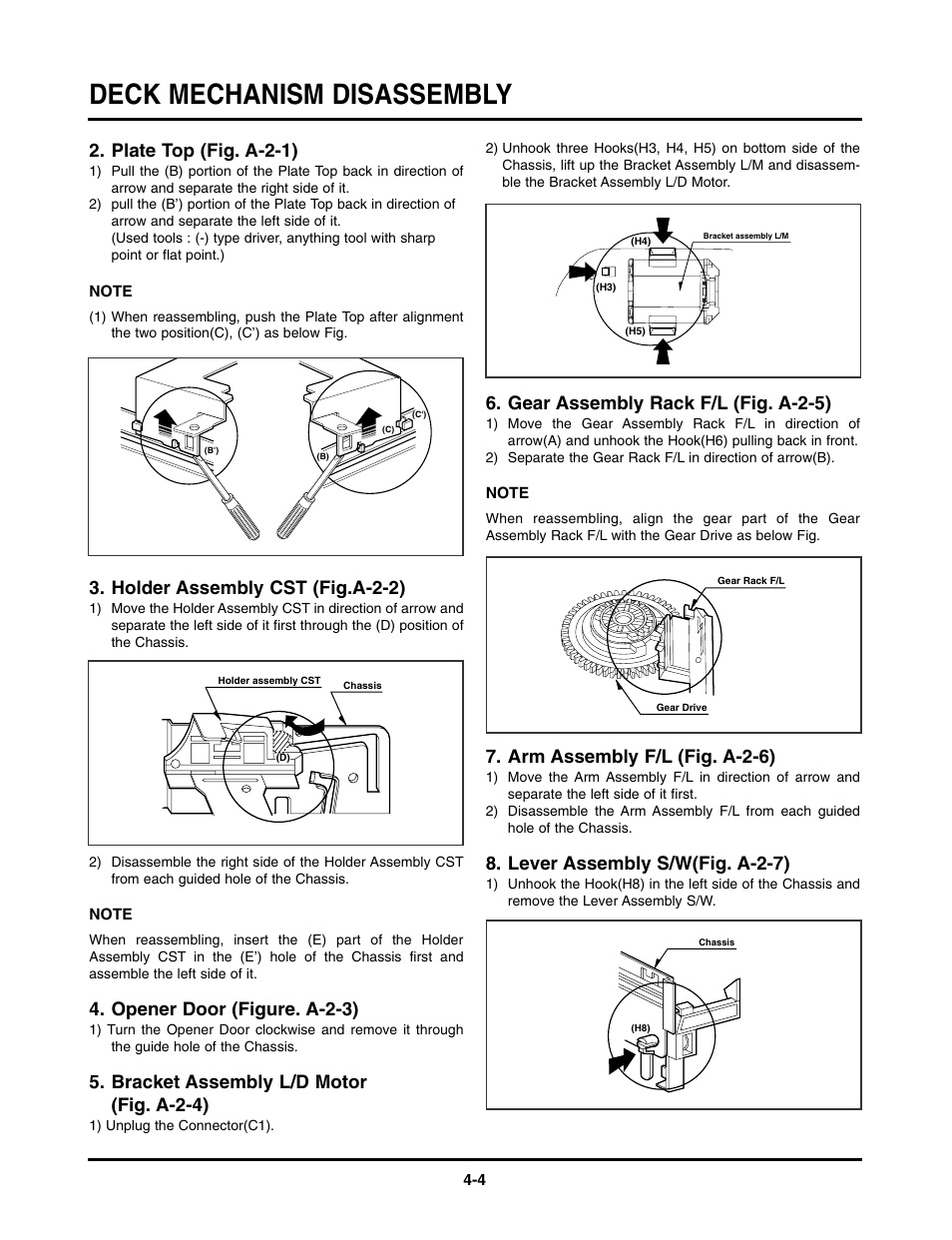

Page 41: Opener door (figure. a-2-3), Bracket assembly l/d motor (fig. a-2-4), Gear assembly rack f/l (fig. a-2-5), Arm assembly f/l (fig. a-2-6), Lever assembly s/w(fig. a-2-7)

Deck mechanism disassembly, Plate top (fig. a-2-1), Holder assembly cst (fig.a-2-2) | Opener door (figure. a-2-3), Bracket assembly l/d motor (fig. a-2-4), Gear assembly rack f/l (fig. a-2-5), Arm assembly f/l (fig. a-2-6), Lever assembly s/w(fig. a-2-7) | LG TL-AT130M User Manual | Page 41 / 80 Deck mechanism disassembly, Plate top (fig. a-2-1), Holder assembly cst (fig.a-2-2) | Opener door (figure. a-2-3), Bracket assembly l/d motor (fig. a-2-4), Gear assembly rack f/l (fig. a-2-5), Arm assembly f/l (fig. a-2-6), Lever assembly s/w(fig. a-2-7) | LG TL-AT130M User Manual | Page 41 / 80
