Press any button except the EJECT and OPEN button to turn on the

unit, press PWR button hold for more than 0.5 seconds to turn off
the unit.(After switching on the ACC POWER first time for 3 seconds,
can only turn on the unit)

12. PRESET STATION [ 1-6 ] AND TOP/CDP, INT, RPT, RDM BUTTONS.
A].To memorize the current frequency, press any one of the six
preset buttons hold for more than 2 seconds.
B].To recall the preset memory, press one of the preset buttons
[1-6].
C).In CDP mode, press TOP/CDP button to pause CDP playback,
press it again to resume CDP playback. Press it hold for more
than about 0.5 seconds to play the first track of the disc.
D).In CDP mode, press INT button to play the first 10 seconds part
of each track, press it again to stop INT mode and retain playing
the track currently selected.
E).In CDP mode, press RPT button to play the current track
repeatedly. Press it again to cancel this mode.
F).In CDP mode, press RDM button to play the track in random
order. Press it again to cancel this mode.

13. MODE BUTTON
Press it to select RADIO or CDP mode.

14. INFRA-RED REMOTE CONTROLLING SENSOR

9. POWER BUTTON

11.MUTE BUTTON
Press the button to eliminate or resume the sound immediately.
To resume the sound immediately, can also press MODE, BAND, +,
-, (LOUD) and SEL button.

10.STEREO/MONO BUTTON
Press it repeatedly to select STEREO or MONO sound mode.

7

4

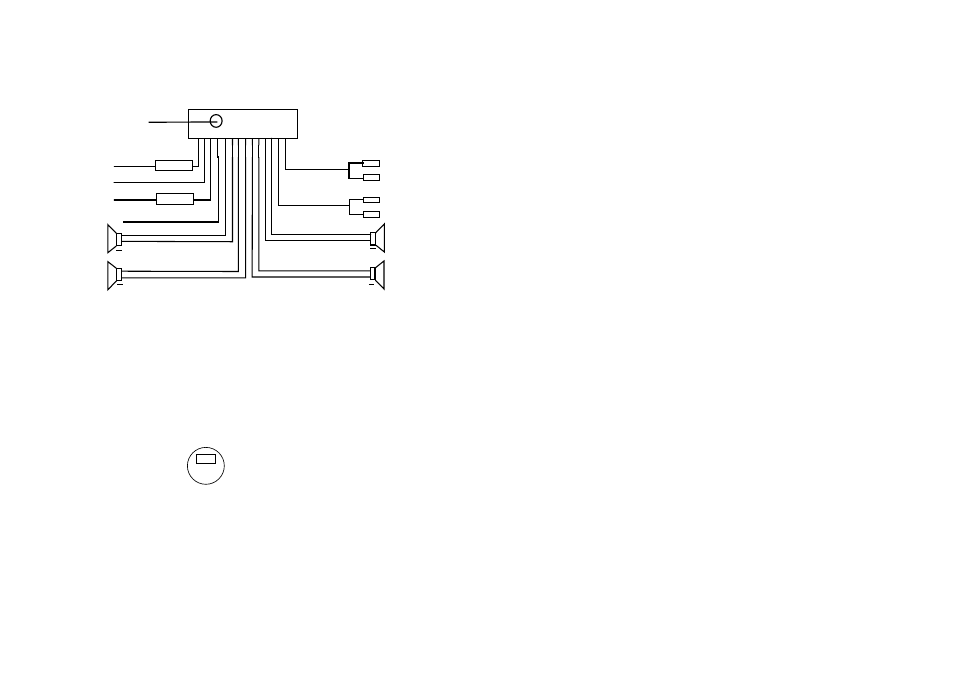

SPEAKER CONNECTION

+

+

+

+

+

+

+

+

YELLOW

ANTENNA PLUG

MEMORY B+

BLACK(GND)

RED (B+)

RCA LINE OUT

RED R

WHITE L

FRONT

REAR

RIGHT

SP

BLUE AUTO ANT

FRONT

WHITE

WHITE/BLACK

GREEN/BLACK

VIOLET/BLACK

GRAY/BLACK

GRAY

VIOLET

GREEN

REAR

LEFT

SP

NOTE:
1. In spite of having any kinds of speaker system, must use 4 ohms
impedance of speaker to reduce the distortion during high volume level.
2. Prohibit to make the conductors of auto antenna and ground
touch with each other.

FUSE

FUSE

7 A

0.5 A

AUX LINE IN

RED R

WHITE L

This radio is set to USA frequency by factory, if European
frequency is required please flip the frequency step switch on
the side of the unit.
After the switchover of the frequency switch, the frequency convert
function will not be valid until the RESET button has been pressed.
(The RESET button is in the rear facet of the front panel)

USA EUROPE

IMPORTANT:
