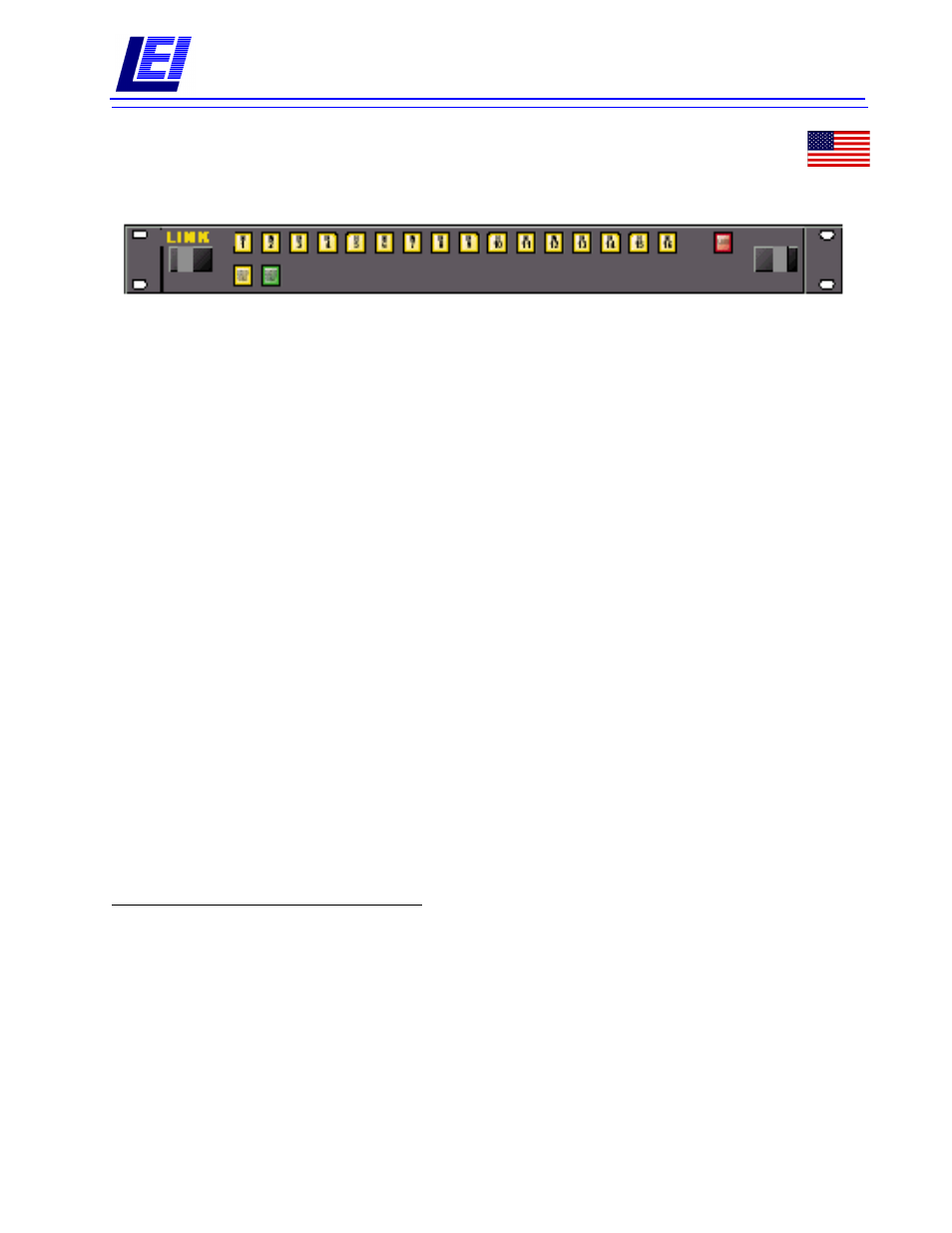

16x1 Analog Video Routing Switcher w/ AAF
Model 860-XL161C
‹ 16 x 1, Analog Video AFV
‹ Local or Remote Control Panel
‹ AFV, breakaway, or X-Y Control
‹ Maximum of 256 Remote Panels
‹ RS-232 Serial Control, Standard
‹ Local Control Panel Supplied
The 800 Series Routing Switchers are wide bandwidth
vertical interval switchers designed for professional
video production facilities. The compact design of
Link’s routing switchers makes them an essential part
of any facility.
Packaged in a 19” rack mountable chassis, the
switchers are supplied with a single front-loaded
power supply. An optional redundant power supply is
available. High quality front panel push buttons are
used for selection of inputs and outputs.
Remote control panels are interconnected with
standard Ethernet 10Base2 single coax connections.
RS-232 is provided through a standard D-sub
connector. Panels can be set to control a single
output bus or the entire matrix. The router is supplied
with audio break-away control panel.
The Link Switcher’s flexibility is unmatched in the
industry. Modular construction offers unique flexibility
to the user, and provides an easy means of adding
additional features or upgrading to digital modules.
Power supplies are accessible from the front of the
unit and may be easily installed or removed. Analog
switchers can easily be upgraded to digital by adding
field installable modules.
Industry standard BNC connectors are used for video
inputs and removable 3-Pin connectors are used for
stereo audio inputs and outputs.
Routers are available for analog video only, analog
video with stereo audio follow, digital video only, and
digital video with two-stream AES/EBU audio follow.
SUPPLIED WITH CONTROL PANEL WITH AUDIO
BREAK-AWAY.
The Link 16 x1 routing system features:
P Modular Design – plug-in modules for video & audio. No active components on the frame.
P Two power supply slots are accessible from the front panel. One power supply is standard.
P A redundant power supply is available as an option.
P Detachable X-Y front panel control with Ethernet 10Base2 coax connection.
P Analog video only models and models with audio follow video.
P Digital video only models and models with analog audio follow.
P Digital video only models and models with digital audio follow.
P RS-232 control standard.
P The 16X1 Video switcher is in a 1 RU and the audio follow in a 1 RU
Remote Mounting Kits for Control Panels
The supplied control panel for all switchers is shipped installed onto the front of the main electronics
chassis. The control panel can be removed from the electronics chassis in the field and installed into a
remote mounting kit. The mounting kit hardware includes rack-mounting hardware for the control panel, a
blank panel(s) that is installed onto the front of the electronics chassis, and a power supply. Order the
appropriate rack mounting kit from the list below:
860-XL161A 16 x1 Analog Video Only Routing Switcher One Rack
860-XL161C 16 x1 Analog Video Routing Switcher with Stereo Audio Follow Video One Rack
