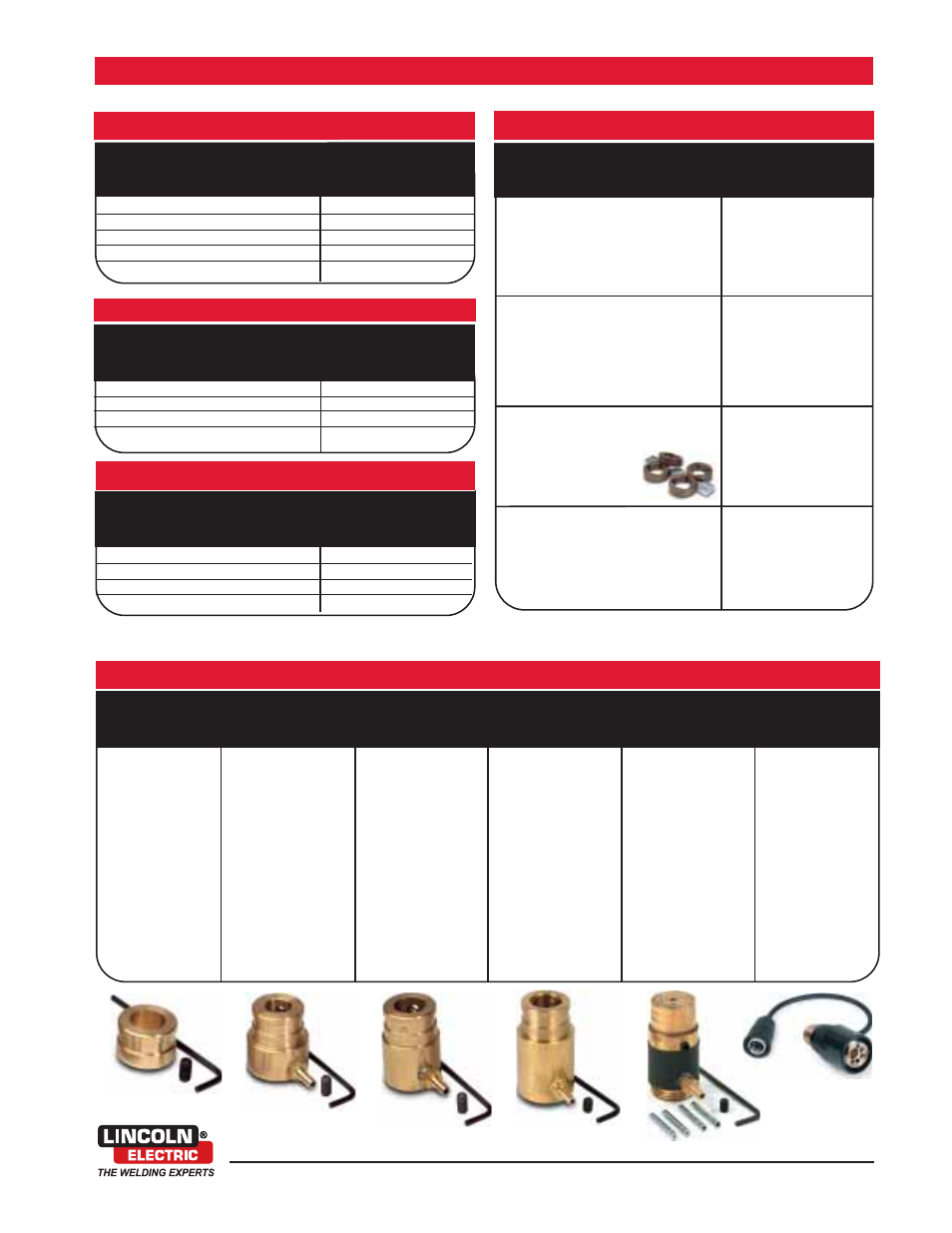

Lincoln Electric Power Feed 10M - Manual (Page 6)

Lug to Lug, 3/0, 600A, 60% duty cycle, 10 ft. K1842-10
Lug to Lug, 3/0, 600A, 60% duty cycle, 35 ft. K1842-35
Lug to Lug, 3/0, 600A, 60% duty cycle, 60 ft. K1842-60
Lug to Lug, 4/0, 600A, 60% duty cycle, 110 ft. K1842-110
Power Feed 10M
[6]
RECOMMENDED OPTIONS
4 5 6
DRIVE ROLL AND WIRE GUIDE KITS
Description Order Number
Solid Steel Wire, Smooth V Groove:
.023-.030” (0.6-0.8mm)
KP1505-030S
.035” (0.9mm) solid KP1505-035S
.040-.045” (1.0-1.2mm) KP1505-045S
.052” (1.4mm) KP1505-052S
1/16” (1.6mm) KP1505-1/16S
Cored Steel Wire, Knurled V Groove:
.030-.035” (0.8-0.9mm)
KP1505-035C
.040-.045” (1.0-1.2mm) KP1505-045C
.052” (1.4mm) KP1505-052C
1/16” (1.6mm) KP1505-1/16C
7/64” Hardfacing KP1505-7/64H
(Knurled V Groove with matching Smooth U Groove)
Cored or Solid Steel Wire, Knurled V Groove:
.068-.072” (1.8mm)
KP1505-068
5/64” (2.0mm) KP1505-5/64
3/32” (2.4mm) KP1505-3/32
7/64” (2.8mm) Cored KP1505-7/64
.120” (3.2mm) Cored KP1505-120
Aluminum Wire, Smooth U Groove:
.035” (0.9mm)
KP1507-035A
.040” (1.0mm) KP1507-040A
3/64” (1.2mm) KP1507-3/64A
1/16” (1.6mm) KP1507-1/16A
3/32” (2.4mm) KP1507-3/32A
4 5 6
ARCLINK®/LINC-NET CONTROL EXTENSION CABLES
Description Order Number
8 ft. (2.5m) Without weld cable K1543-8
16 ft. (4.8m) Without weld cable K1543-16
25 ft. (7.6m) Without weld cable K1543-25
50 ft. (15.2m) Without weld cable K1543-50
100 ft.(30.4m) Without weld cable K1543-100
COAXIAL WELD POWER CABLES (2)
Description Order Number
25 ft. (7.6m) 350 amps K1796-25
50 ft. (15.2m) 350 amps K1796-50
75 ft. (22.8m) 325 amps K1796-75
100 ft. (30.4m) 300 amps K1796-100
(2) Recommended for STT and pulse welding when using long distances between
feeder and power source.
WELD POWER CABLES
www.lincolnelectric.com
Description Order Number
FEED PLATE GUN RECEIVER BUSHINGS
• Magnum 200, 300
and 400 gun and
cable assemblies
with K466-1
connector kit.
• Lincoln Innershield
gun and cable
assembly.
• Magnum 550 gun
and cable assembly
with K613-1
connector kit.
• Magnum 200 and
400 fully assembled
guns (K497-2x and
K471-2x).
• Magnum 200, 300
and 400 gun and
cable assemblies with
K466-10 connector
kit.
• Guns with Tweco®
#2, #3, and #4
connectors.
• Magnum 550 gun
and cable assembly
with K613-7
connection.
• Guns with Tweco #5
connectors.
• Magnum 200, 300
and 400 gun and
cable assemblies
with K466-3
connector kit.
• To adapt to OXO
guns.
• Magnum gun and
cable assemblies
with Fast-Mate
TM
connections.
• Handles both single
and dual procedure
guns.
K1500-1 Gun
Receiver Bushing
(Optional)
K1500-2 Gun
Receiver Bushing
(Standard)
K1500-3 Gun
Receiver Bushing
(Optional)
K1500-4 Gun
Receiver Bushing
(Optional)
K1500-5 Gun
Receiver Bushing
(Optional)
K489-7 Fast-Mate
Gun Receiver
Bushing (Optional)
