LevelOne WAB-1000 User Manual
Page 16

11
The WAN port is used to connect the WAB-1000 to the organization’s LAN. The Ethernet
cable is run from the WAB-1000 WAN port to the power injector which is then connected to a
power source and the wired LAN. A second (LAN Port) Ethernet connector is designed for use
during initial configuration only. This uses an RJ45 cable to connect the WAB-1000 to a laptop.
The reset button is for set the WAB-1000 to the factory default. Pleasekeep pressing the button
and hold for 5seconds, after WAB-1000 restart successfully, the resetting is completed.

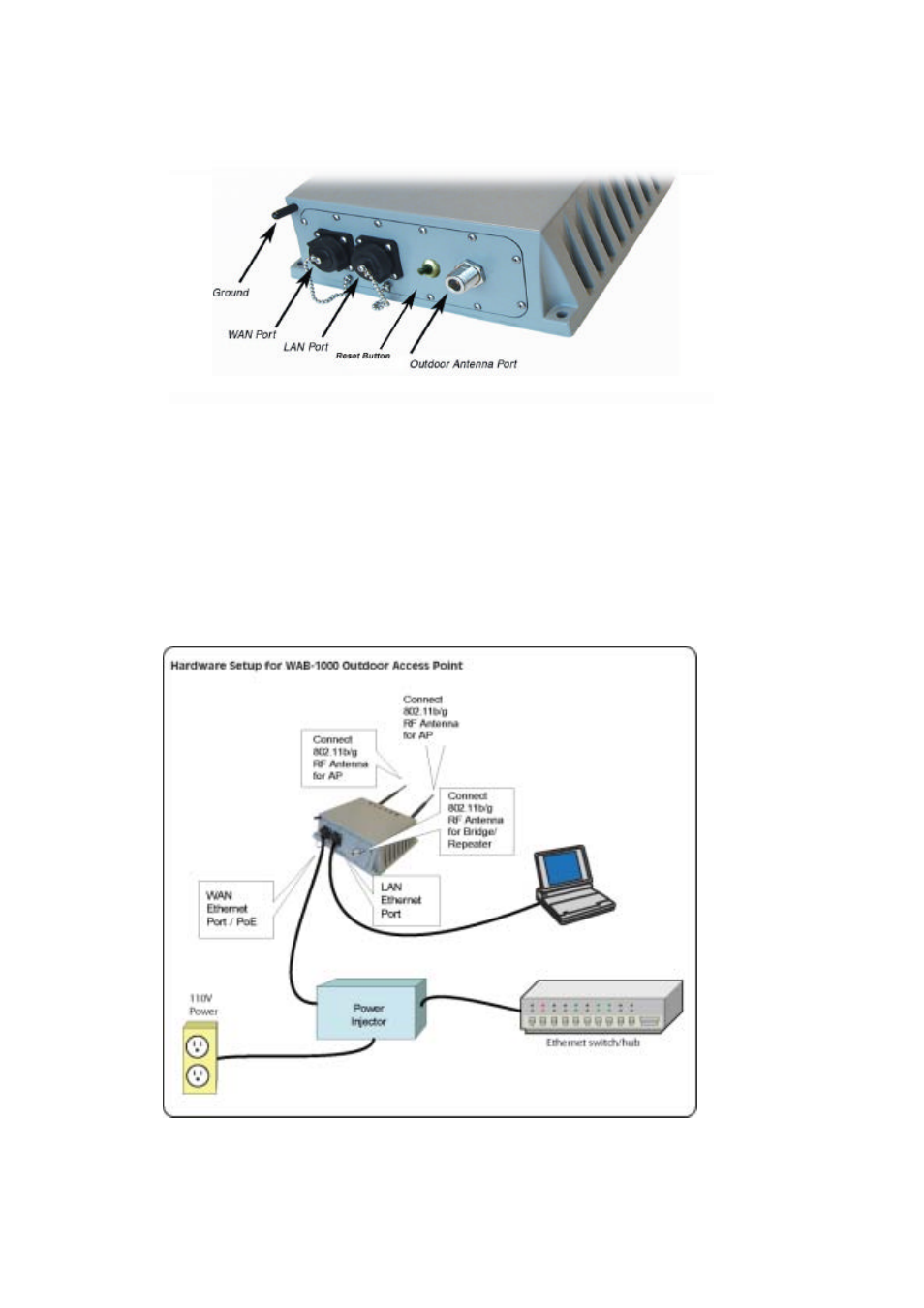

The following diagram demonstrates the setup.
