STEP 2:

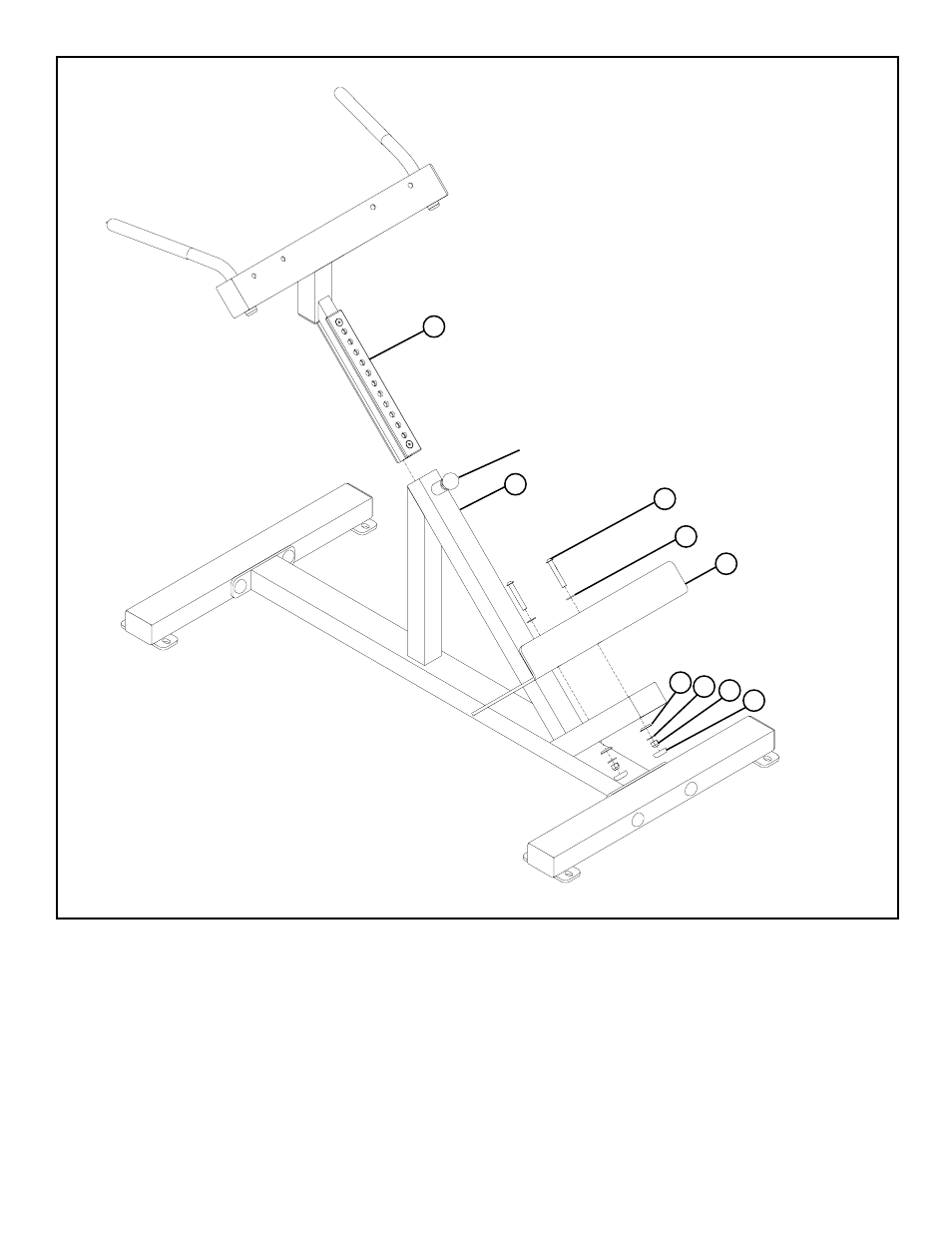

FIGURE 2
5
• Pull back the SPRING PIN on the FRAME (1) and insert the HIP PAD ADJUST (2) as shown in FIGURE 2.
1
2
4
11
15
12
13
14 BLACK
6 3/8 X 2-3/4” BUTTON HEAD
SPRING PIN
• SECURELY assemble the FORMED ANGLE (4) to the FRAME (1) using two 3/8 X 2-3/4” BUTTON HEAD BOLTS (6), two 3/8”
BLACK SAE WASHERS (14), two 3/8” RH WASHERS (13), two 3/8” SAE WASHERS (12), two 3/8” LOW HEIGHT LOCK
NUTS (11) and two RH CAPS (15) as shown in FIGURE 2.
