Page 30
–
30
–
Only qualified persons should install, use or
service this machine.
using the disconnect switch at the fuse box
WARNING
Turn off input power to the Welding Power Source
Before connecting the wire feeder.
ELECTRIC
SHOCK
CAN KILL
N.A. WELDING CABLE MUST BE SIZED FOR CURRENT AND DUTY CYCLE OF APPLICATION.
TO
WORK
-
+
14 PIN
AMPHENOL
ELECTRODE CABLE
TO LN-9 GMA
K596 REMOTE
CONTROL CABLE
ASSEMBLY
INVERTEC
POWER SOURCE
WITH 110/115V AUX.
N.B. DIAGRAM SHOWS ELECTRODE POSITIVE. TO CHANGE POLARITY, TURN POWER "OFF", REVERSE
ELECTRODE AND WORK CABLE AT POWER SOURCE. SET METER POLARITY SWITCH ON REAR
OF INVERTEC TO COINCIDE WITH POLARITY USED. SET LN-9 GMA POLARITY SWITCH ALSO.
N.D. FOR GMAW WELDING, INSTALL PULSE POWER FILTER KIT K442-1 IN LN-9 GMA.
N.C. INSTALL K608-1 ADAPTER IN LINE WITH P10 TO LN-9 GMA VOLTAGE BOARD
PER INSTRUCTIONS IN V300 MANUAL.
LN-9 GMA WITH
K608-1 AND
K442-1 KITS.
S20607
P10’,J10
2
3
4
5
6
7
10
11
12
P10,J10’
2
3
4
5
6
11
12
7
3.9K
K608-1
CONNECTION
DETAIL
530A
521
500
500
524
C
B
533
9-29-95C

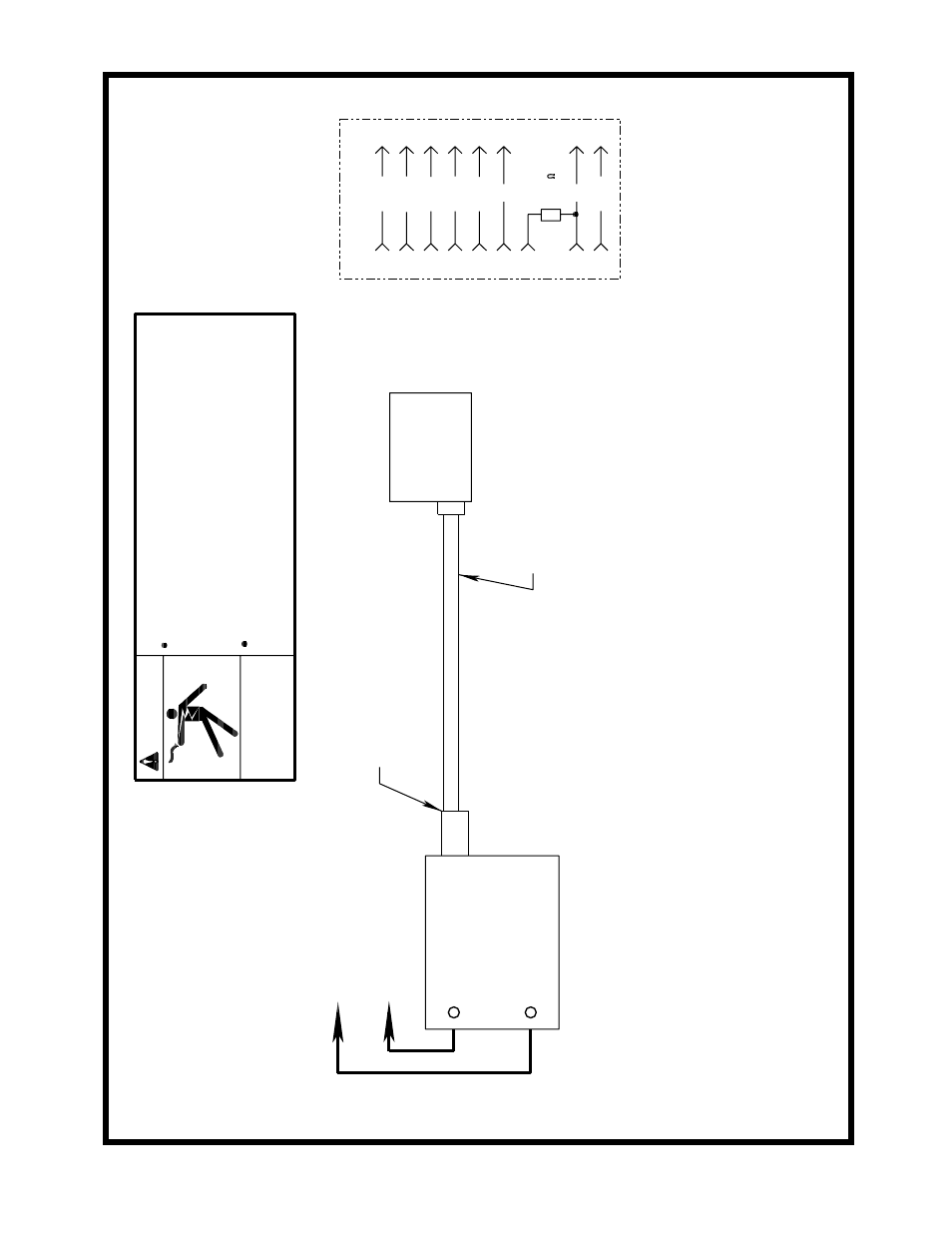

LN-9 GMA WITH K596 CABLE TO INVERTEC - CONNECTION DIAGRAM
