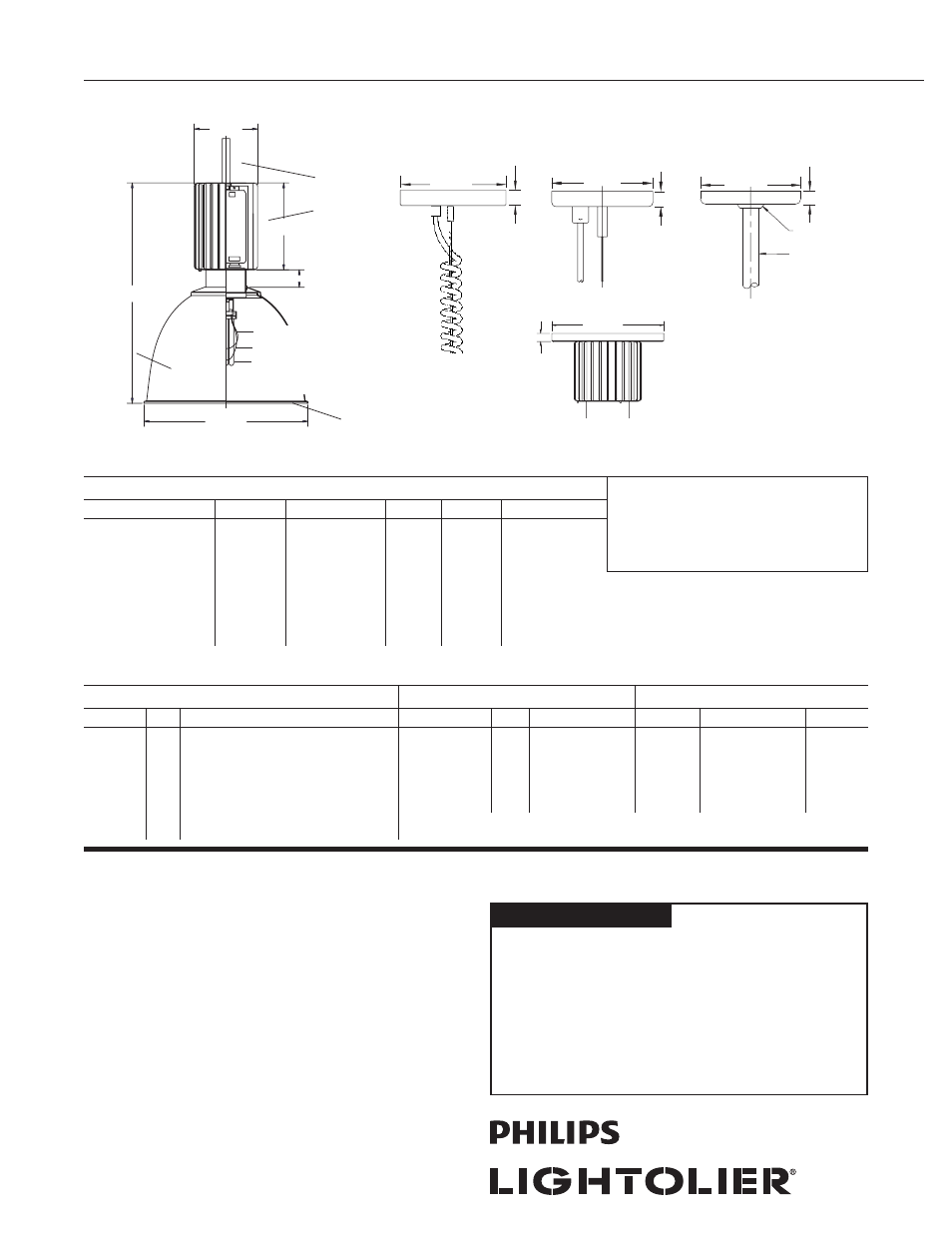

Specification Decorative Pendalyte
™
4073U
Page 1 of 4 16" Pendant
Features
1. Reflector/Refractor: Semi-specular high purity anodized aluminum,
16 gauge, iridescent-free finish. Refractor; injection molded acrylic, UV
stabilized.
2. Power Head Housing: Two-piece extruded aluminum. Removable door
allows for ease of installation and servicing. Dark Gray textured powder coat
finish.
3. Suspension: Cable/Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black.
Cable/Coiled Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black. Stem: 3/4"
steel tubing and canopy with 35 degree swivel hanger, Grey-or Black Finish.
4. Shielding Options: Industrex ® Glass Lens or Acrylic Lens.
Labels
cULus listed suitable for damp locations.
6 1/4"
8 1/2"
150W A21
100W, 150W
175W ED17
26W, 32W, 42W
TRIPLE TUBE
16 1/4"
22"
2 1/4"
1
2
3
150W A21
100W, 150W,
175W ED17
26W, 32W, 42W,
57W, 70W, 85W
Triple Tube
4
Complete fixture consists of: Power Head, Reflector, and Suspension. Select each separately
Reflector/Refractor Power Head: Powder Coated Textured Dark Grey
Cat. No Cat. No Lamp Watts Volts Options
40431 Semi Specular,
Anodized Reflector
40432 Acrylic Refractor
406371
4073U3
407370U
407385U
4083100EU
4083150EU
Incandescent A21
CFL Triple Tube
CFL Triple Tube
CFL Triple Tube
Metal Halide ED17
(Open Rated)
Metal Halide ED17
(Open Rated) 150
26/32/42
70
85
100
150
120
120-277V
120-277V
120-277V
120-277V
120-277V
Not App.
MX1, MX2, DA, E3
MX1, MX2, E3
Not App.
N/A
N/A
Note: For CFL unit with integrated Emergency Battery Pack (EM) Option refer to Specification Sheet number P-EM for Cat. No. ordering guide and specification data.
Remove U or U3 from Cat. No. & add Suffix
Suspension Optional Extension Kits Reflector/Refractor Opt.
Cat. No Color Description Cat No. Color Description Cat No. Description Used With
404SKG
404SG5
404S36
404S60
404S120
4912CTCGR
404GLS Grey
Grey
Grey
Grey
Grey
Grey
Grey Cable/Cord & Cable/Coiled Cord, 120" Length
5-Wire Straight Cord/Cable
36" Length 5/8" Stem
60" Length 5/8" Stem
120" Length 5/8" Stem
Direct to Ceiling Kit
Track Mounting Kit 404EXT300*
404EXT300G5** Grey
Grey 25' Extension Cable/
Cord Kit
25' 5-wire Extension
Cable/Cord Kit 431G
432G
432A
404TRM16 Industrex
®
Glass Lens
Industrex
®
Glass Lens
Flat Acrylic Lens
16" Trim Ring
40431
40432
40432
40431/4032
* Use with Standard Cord Suspension Kit
**Dali requires a 5-wire suspension
Suspension Details
MX1 = Mark X Dimming 26/32/42W, 120V only*
MX2 = Mark X Dimming 26/32/42W, 277V only*
E3 = 347V (Canada)
DA = DALI (Digital Addressable Lighting Interface)**
* 2-wire, neutral connection required at dimming control.
** 5-wire Suspension Kit required
5 1/2"
3/4"
Cable/Coiled Cord
5 1/2"
3/4"
Cable/Cord
5 1/2"
7/8"
Swivel Joint 35˚
5/8" Steel Tubing
Stem
16 in Pendant
Direct to Ceiling
10 3/8"
3/4"
