Line 6 GearBox 3.1 – Basic Features Guide
TonePort UX2/KB37 Controllers
Unique to TonePort UX2 and KB37 are two Footswitch jacks on the hardware which provide remote
control of GearBox functions. Additionally, TonePort KB37 features an expression pedal jack and a
number of knobs, wheels and buttons which can be configured to control various MIDI parameters,
GearBox and 3
rd
-party application functions. KB 37 ships with a default set of functions assigned to its
controllers, which you can of course re-configure in the Line 6 Audio-MIDI Devices control panel.
14

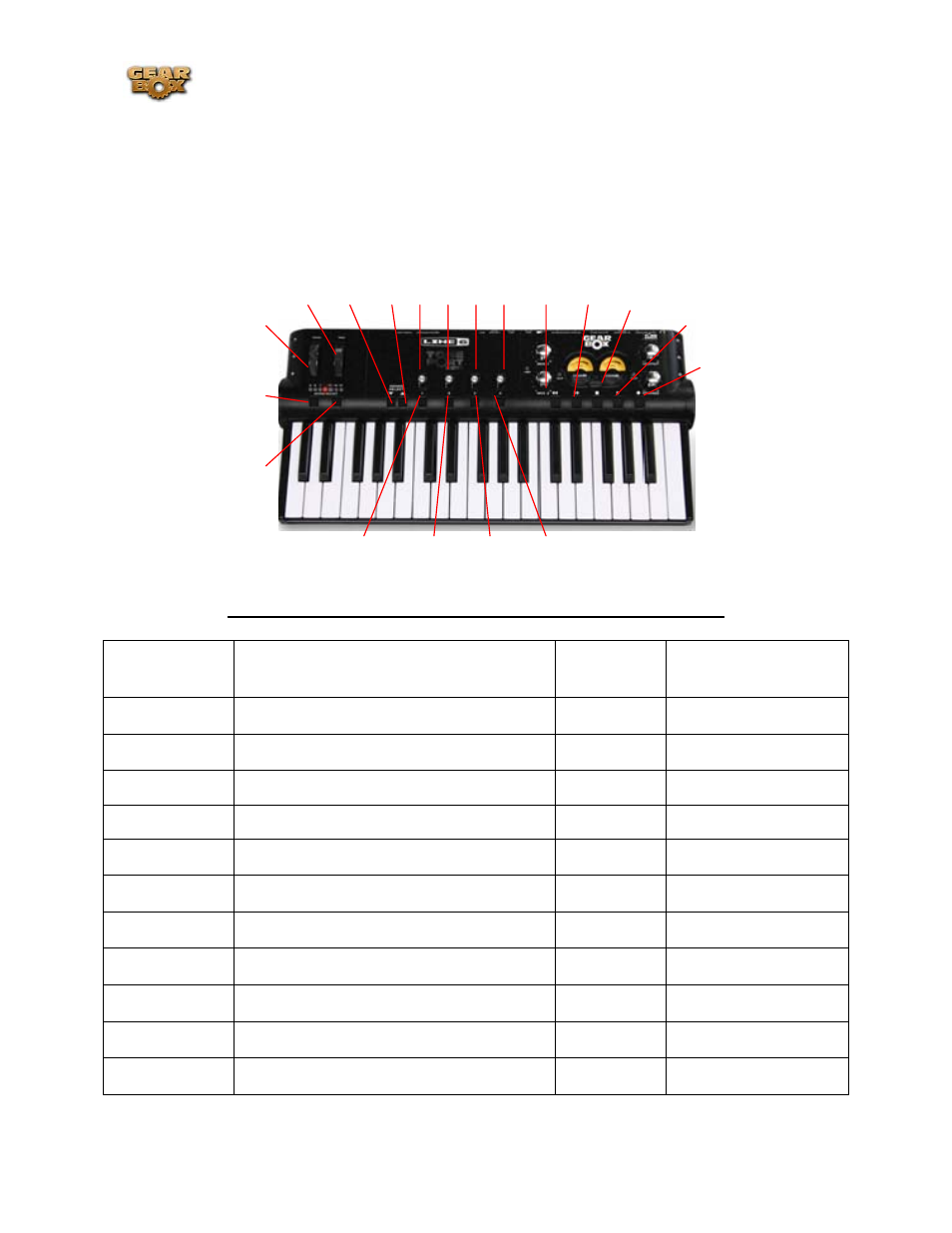

13
12 11 10
9 8 6 7 5 4
3
15
2
1
16 17 18 19
KB37 default messages for non-GearBox applications
Controller Default MIDI/Control message Controller Default MIDI/Control
message
1- Octave up None (internally shifts note numbers +1 octave;
Not Re-assignable) 11- Rewind MMC Rewind
2- Octave down None (internally shifts note numbers -1 octave;
Not Re-assignable) 12- Forward MMC Fast Forward
3- Pitch Wheel Pitch Wheel (Not Re-Assignable) 13- Stop MMC Pause
4- Mod Wheel CC 1 (Modulation Wheel) 14- Play MMC Play/Stop
5- Program
increment +1 15- Record MMC Record/Punch
6- Program
decrement - 1 16- Button 1 CC 65
(Portamento)
7- Knob 1 CC 73 (Attack Time) 17- Button 2 CC 127
(Poly On)
8- Knob 2 CC 75 (Decay Time) 18- Button 3 CC 126
(Mono On)
9- Knob 3 CC 72 (Release Time) 19- Button 4 CC 123
(All Notes Off)
10-Knob 4 CC 91 (Effects 1 Depth) Expression
pedal CC 11
(Expression)
Footswitch 1
(Sustain) CC 64 (Sustain) Footswitch 2 MMC Record Punch
Page 17
