Figure 6, Step 6 – Life Fitness Parabody 805 User Manual
Page 8
8
0
1
2
3
4
5
6
1/2
1/2
1/2
1/2
1/2
1/2

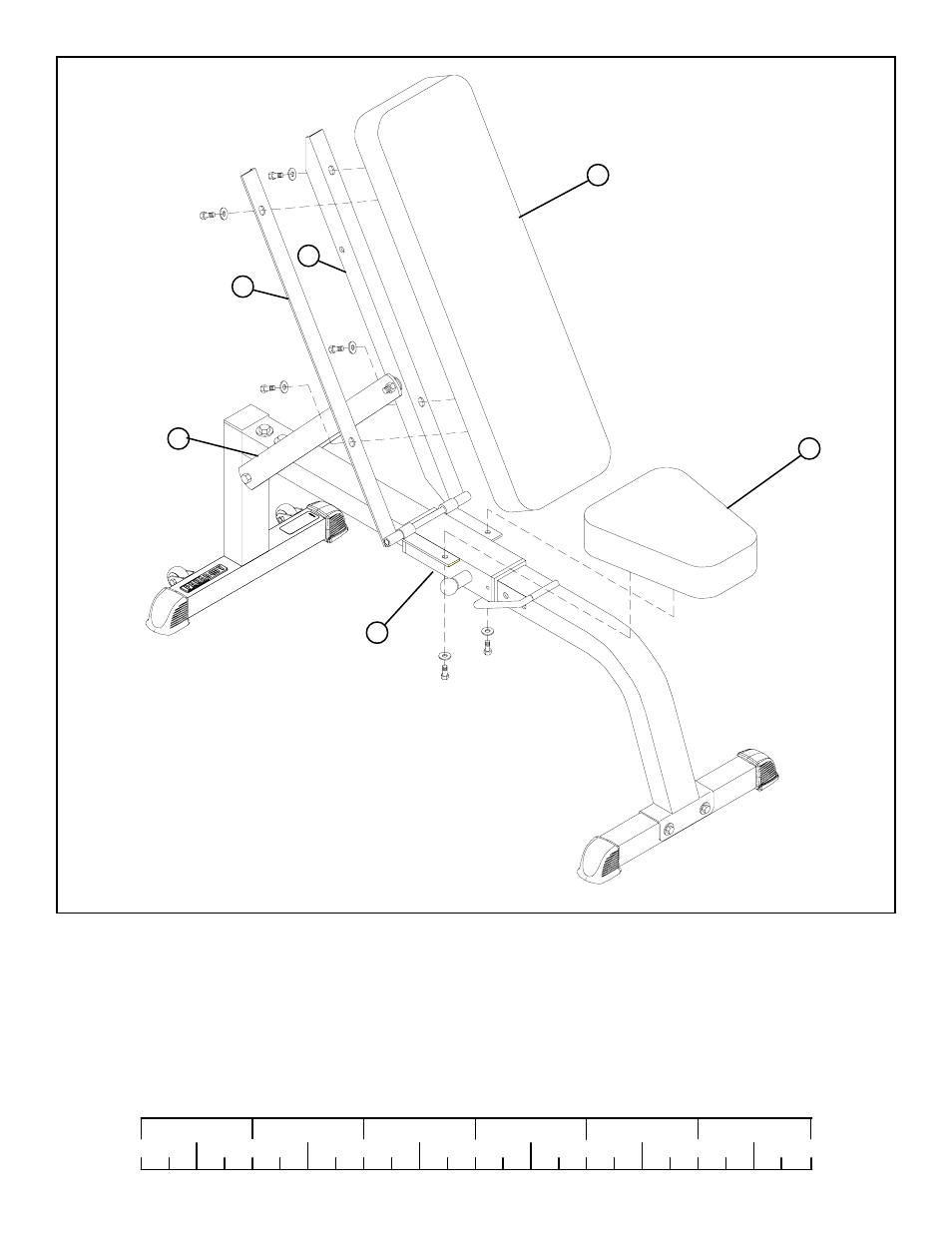

FIGURE 6
STEP 6:
• Securely fasten the BACK PAD (9) to the LEFT (5) and RIGHT (6) BACK PAD ANGLES using four 3/8 X 1”
BOLTS (18) and four 3/8” FLAT WASHERS (23) as shown in FIGURE 6.
* All connections use one 3/8 X 1” BOLT (18) and one 3/8” FLAT WASHER (23)
• Securely fasten the SEAT PAD (10) to the HINGE TABS (13) using two 3/8 X 1” BOLTS (18) and two 3/8”
FLAT WASHERS (23) as shown in FIGURE 6.
5
6
9
13
10
THIS CONCLUDES THE ASSEMBLY OF THE 805 FLAT & INCLINE BENCH
• Securely tighten the four connections on the 1/4 X 2 X 16-1/2” PLATES (4), then back nuts off 1/4 of a turn or
until the BACK PAD (9) adjusts easily.
4
