7 -
89374.003
SERVICE VGA/XGA
HDTV/PC IN
AUDIOOUT
AUDIO DIGITAL IN
L R
OUT
AUDIO IN L SD/HD-COMPONENTIN C /P r r Y C /P b b
R C AV 1 RGB / YUV ( ) AV 2 ANT-TV
ANT-SAT 13/18V /350mA
5 V /80mA HDMI DVI ( )
220-240V~ 50/60Hz
+
–
Mains switch
Audio output left/right (analogue)
Audio input left/right (analogue)
Center Audio input (analogue)
Satellite antenna
(Sat tuner 2) (3
Antenna/cable PIP tuner (1
or satellite antenna
(Sat tuner 1) (2
Euro-AV-
socket 1
Euro-AV-
socket 2
Socket for
power cable
Service socket
VGA/XGA input
HDMI (DVI) input
Digital audio input
Digital audio output
Component
video inputs
(Cb/Pb–Cr/Pr–Y)
Antenna output PIP tuner (1
connect to tuner 1
Antenna/cable
analogue/digital
(tuner 1)
Headphones connection
Common Interface
S-VHS connection (AVS)
(i.e. for camcorders)
Video input (AVS)
Audio input right
Audio input left
Call the menu, (4
in the menu:
up/down
Station down, (4
in the menu: left
Station up, (4
in the menu: right
Rotating stand control

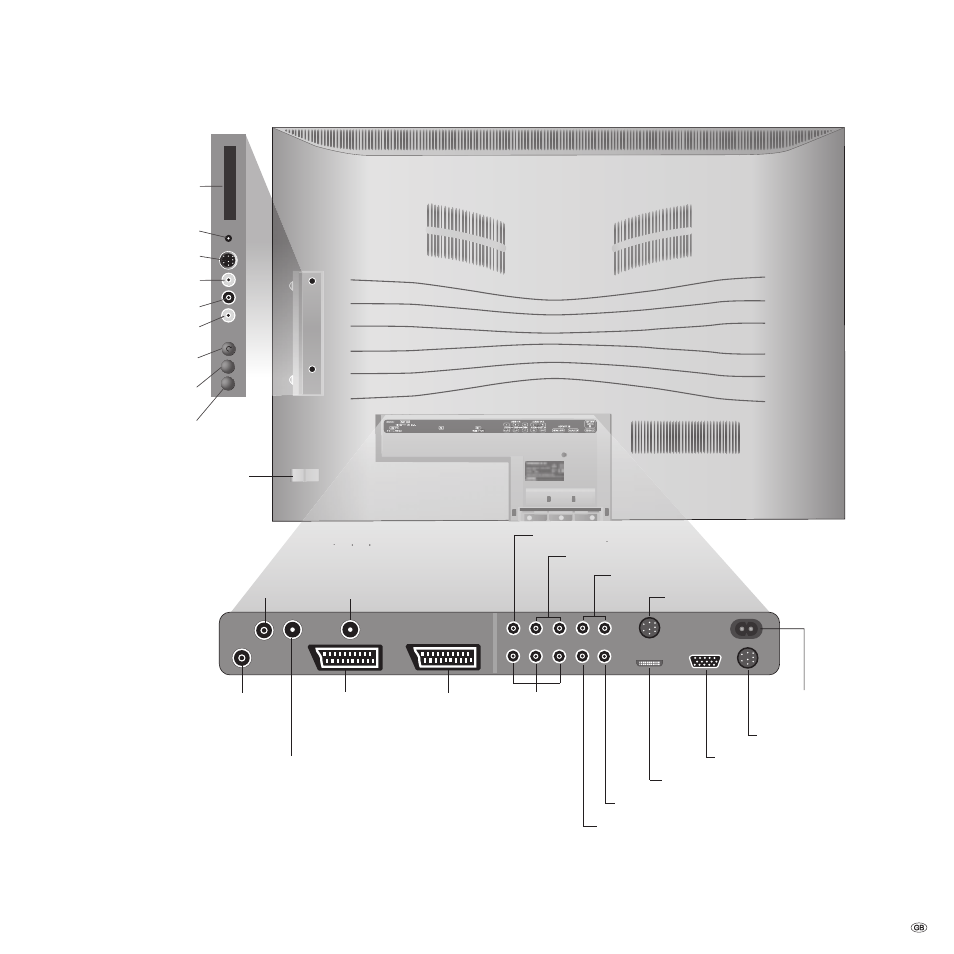

Connections to rear panel - Spheros R 32 and R 37
(1 Can be retrofi tted. This is already integrated in sets with a digital recorder.
(2 Digital satellite tuner can be retrofi tted (not in UK version).
(3 Can be retrofi tted for sets with a digital recorder.
(4 Only for Spheros R 37.
