Strength 9000 series - pllh plate loaded leg hack, Main frame assembly – Life Fitness 9000 Series User Manual
Page 7
7Page 7 of 11
STRENGTH 9000 SERIES - PLLH Plate Loaded Leg Hack

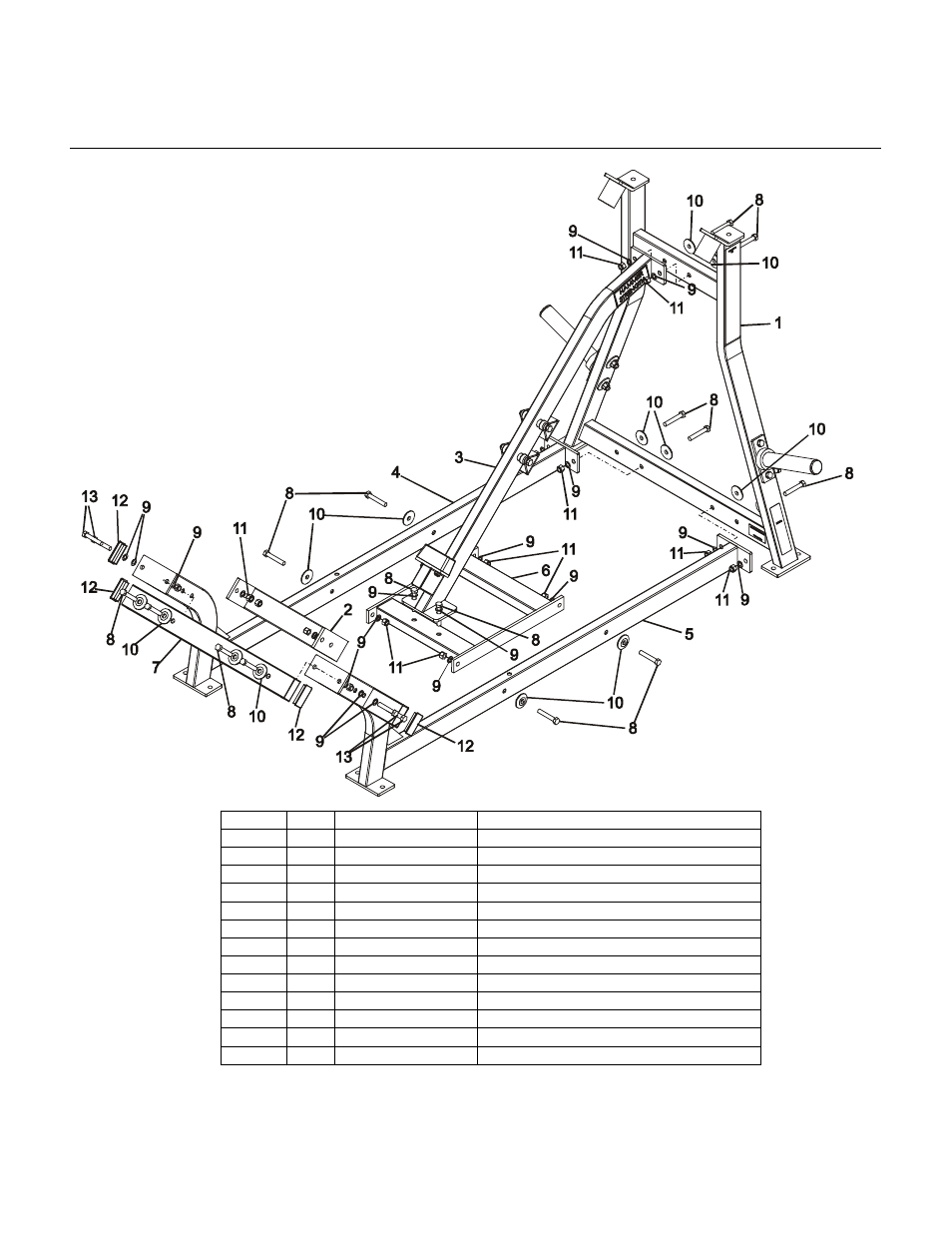

Main Frame Assembly
ITEM NO. QTY.
PART NO.
DESCRIPTION
1
1
PLLH-A0005
REAR FRAME ASSEMBLY
2
1
PLLH-S0010
FOOT BRACE WELDMENT
3
1
PLLH-A0006
CENTER FRAME ASSEMBLY
4
1
PLLH-S0003
RIGHT SIDE FRAME WLDMNT
5
1
PLLH-S0002
LEFT SIDE FRAME WLDMNT.
6
1
PLLH-S0004
MID FRAME WLDMNT.
7
1
PLLH-M0012
FOOT PLATE BRACE
8
16
0017-00101-1582
1/2 X 3 Bolt
9
24
0017-00104-0379
1/2" Internal Lock Washer
10
16
0017-00104-1385
HAMMER WASHER
11
20
0017-00103-0223
1/2" THICK NYLOC NUT
12
4
0017-00042-1038
1.5" X 3.0" PLASTIC END CAP
13
4
0017-00101-1573
1/2 X 2 3/4 Bolt
