6 SMART FUNCTION CONFIGURATION
6.1 HyperTerminal
The Switch has a smart function that you can use to manage your local area network (LAN) more effectively. You can also use
the default setting to operate the Switch as a dumb switch.
If you want to use smart function, install the Switch as below:
ƍ Use the “RS-232” connector to connect the Switch to a computer. Connect One (1) cable end to the Switch, and connect the
other end to the computer’s “COM1” or “COM2” port.
Note: If your Windows program doesn’t have a hyper terminal, you have to install it first.
ƍ Power “ON” the Switch
ƍ Execute the “HyperTerminal” program:
Start Menu ! Application Program ! Communication ! Hyper Terminal
ƍ Setup the connection content of Hyper Terminal:
ƍ In connection tag, select which “COM” port is used to connect PC and the Switch.

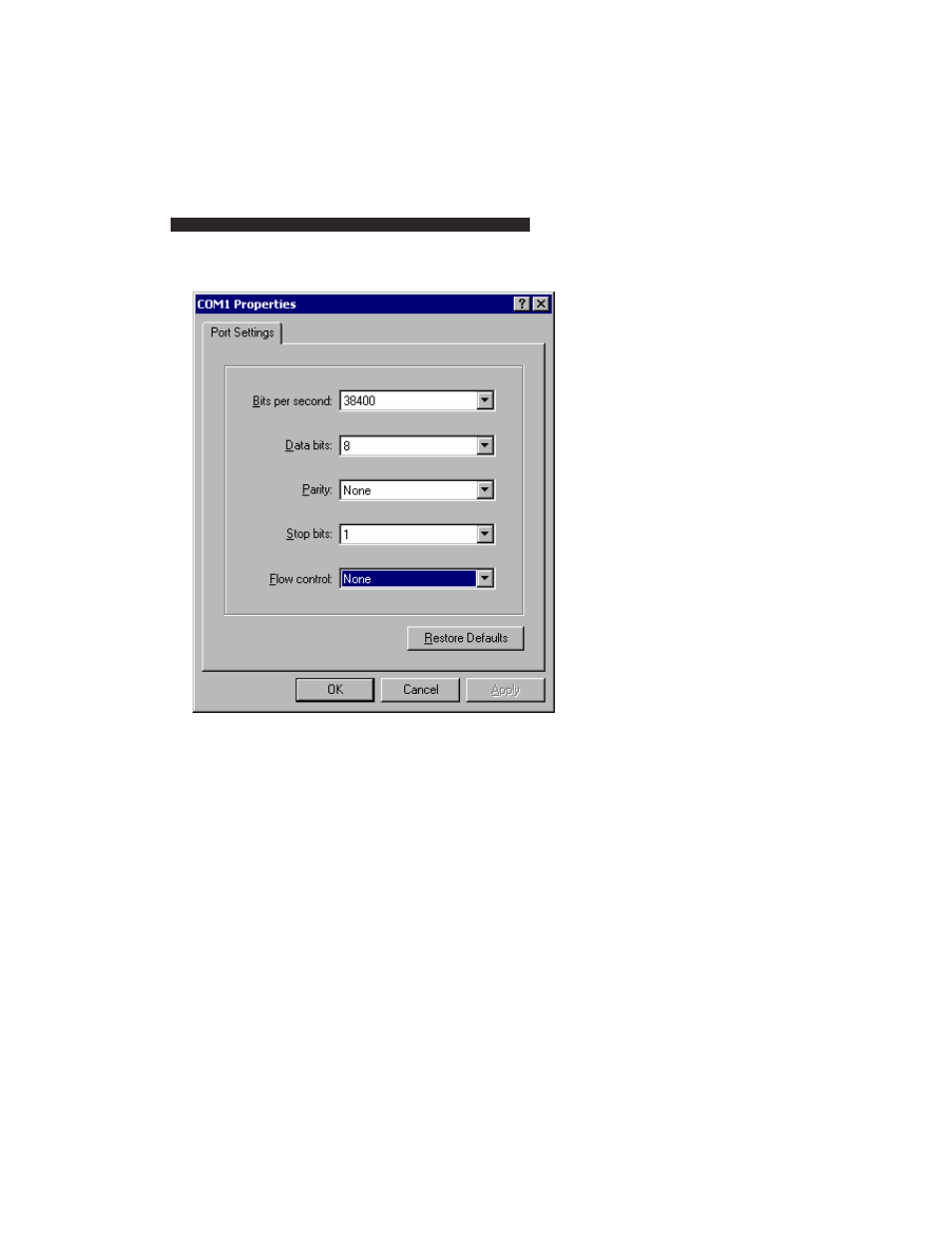

ƍ Then press the “SETUP” button, set “Bits per second” to 38400, “Data bits” to 8, “Parity” to None, “Stop bits” to 1, “Flow
control” to None.
