Linksys AG041 (EU) User Manual
Page 60
53
Appendix B: Configuring IPSec between a Windows 2000 or XP Computer and the Gateway
How to Establish a Secure IPSec Tunnel
ADSL Gateway with 4-Port Switch
3. The Filters Properties screen will appear. Select the Addressing tab. In the Source address field, select My IP
Address. In the Destination address field, select A specific IP Subnet, and fill in the IP Address: 192.168.1.0
and Subnet mask: 255.255.255.0. (These are the Router’s default settings. If you have changed these
settings, enter your new values.)
4. If you want to enter a description for your filter, click the Description tab and enter the description there.
5. Click the OK button. Then, click the OK or Close button on the IP Filter List window.
Filter List 2: Router ->win
6. The New Rule Properties screen will appear. Select the IP Filter List tab, and make sure that win -> Router
is highlighted. Then, click the Add button.

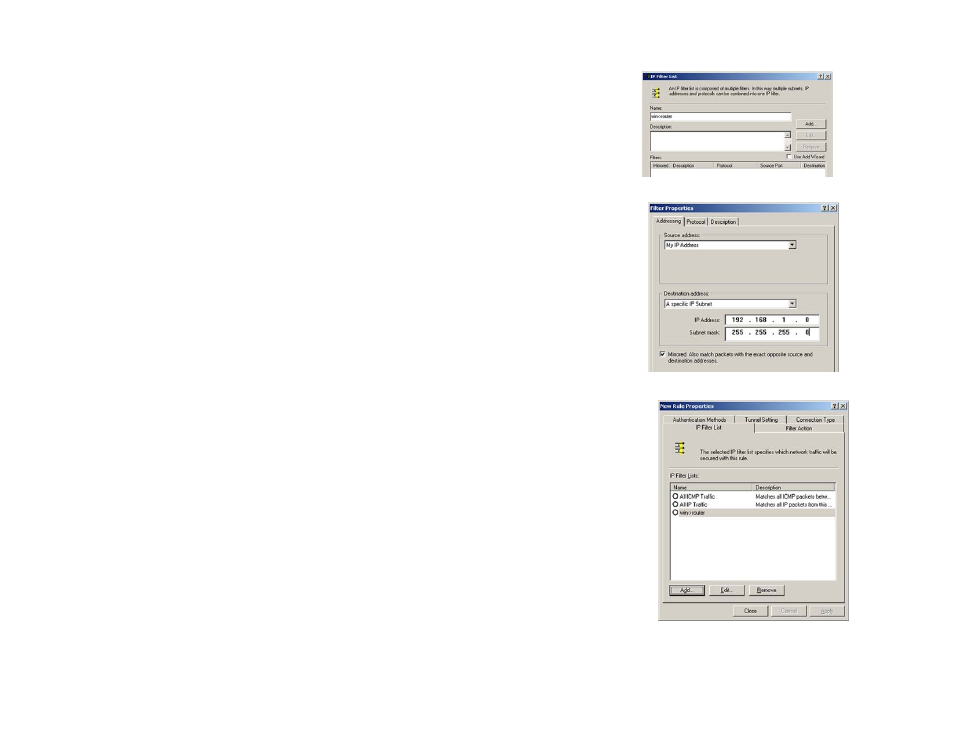

Figure B-4: IP Filter LIst
Figure B-5: Filters Properties
Figure B-6: New Rule Properties
