Wireless Receiver
8

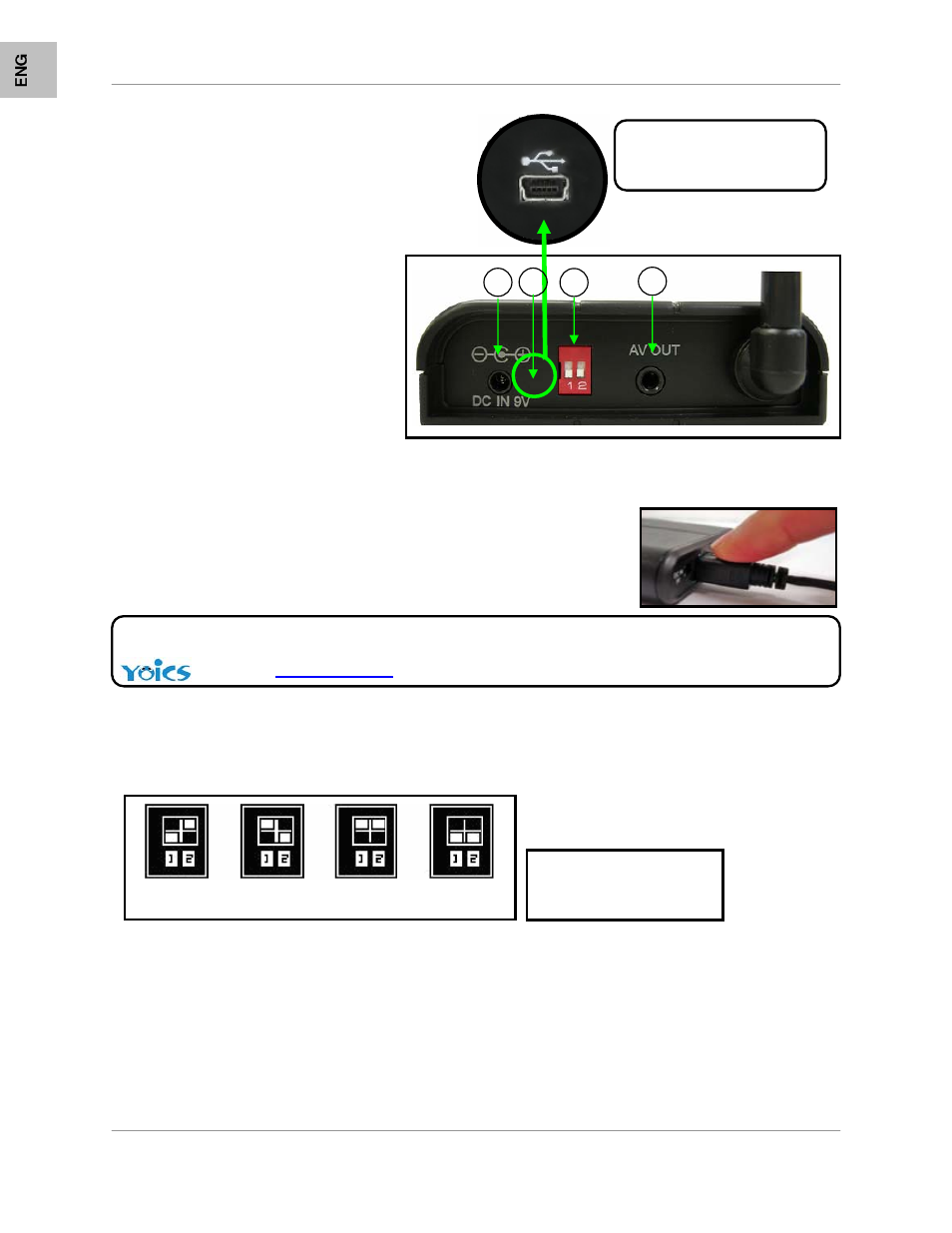

Wireless Receiver
1. DC 9V (5V for LW1020/LW1022)
INPUT – Connection port for the 9V/5V
Power Adaptor (provided with this
system). Connect the Power Adaptor to
a power source.
NOTE: It is recommended that the
receiver be connected to a surge bar or
similar to protect the equipment from
damage.
2. USB Port (ONLY on the LW1020 and LW1022 Models)
The USB Port enables the receiver to be connected to a computer (not included) with internet access.
Yoics (software included) allows the camera(s) to be viewed on any other
computer with an internet connection.
3. CAMERA CONNECTION DIP SWITCHES - Use the DIP Switches to switch a camera to a specific
channel. These switches are set to default positions (based on Model Number).
Please do not adjust these switches without first consulting technical support.
4. AV OUT – Connect the provided AV Cable to the Receiver. Connect the Audio and Video ends of the
cable to a TV, VCR or other viewing device.
1 3 4
CAM1 ON
CAM2 OFF
CAM1 OFF
CAM2 ON
CAM1 ON
CAM2 OFF
NOTE: The White
squares represent the
switch location
CAM1 ON
CAM2 ON
NOTE: The USB Port is
ONLY on the LW1020 and
LW1022 Models.
NOTE: Please refer to the Quick Start Guide that is provided with your package on how to
install Yoics. For additional Yoics information or advanced Yoics user options, Please visit the
website at
www.yoics.com
