10

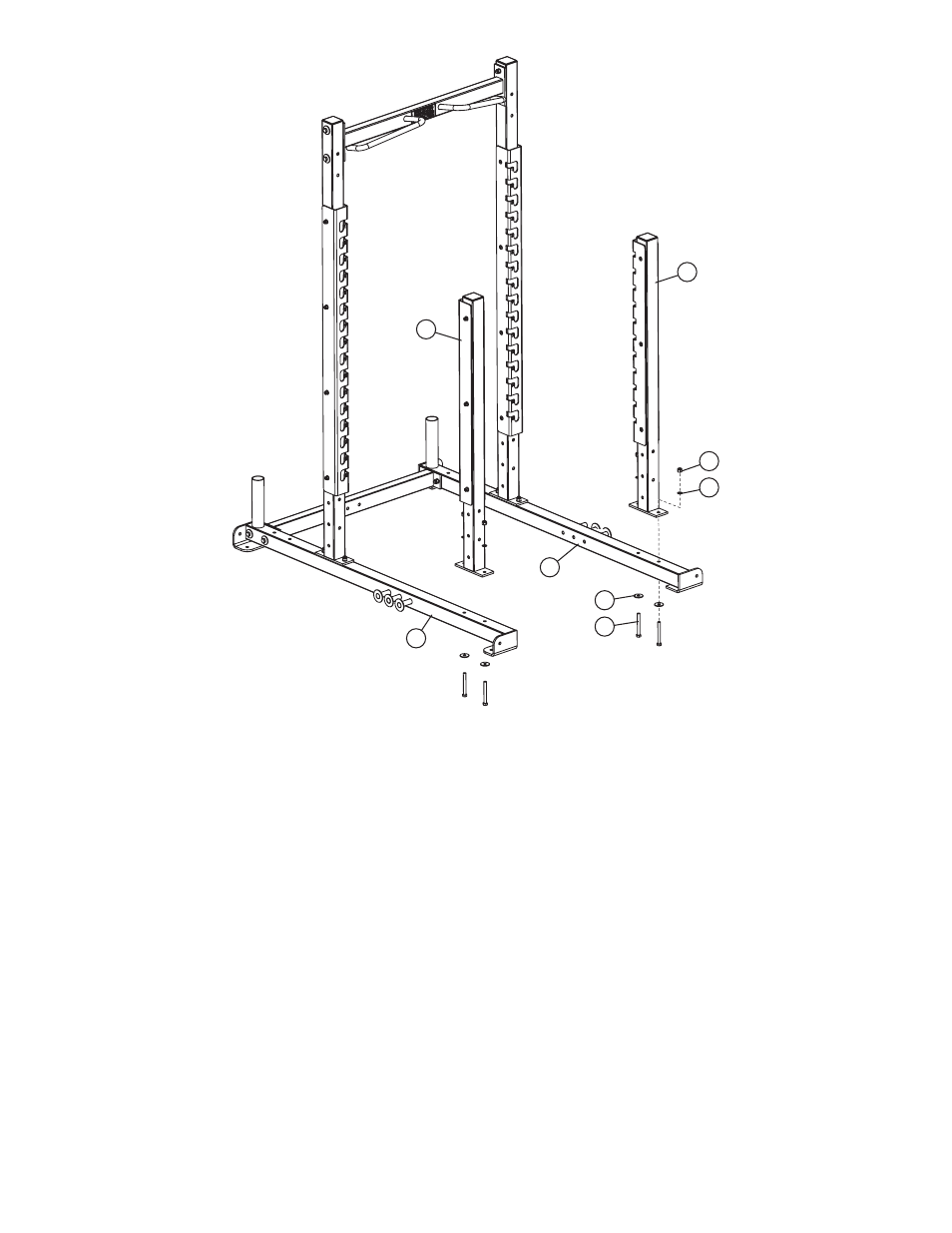

STEP 3:

‰ LOOSELY assemble the SHORT LEFT UPRIGHT (11) to the LOWER LEFT BASE (2) using two 1/2 X 4-1/2” BOLTS

(3), two BACKING DOME WASHERS (4), two 1/2” INT LOCK WASHERS (5), and two 1/2” LOCK NUTS (6).

‰ LOOSELY assemble the SHORT RIGHT UPRIGHT (12) to the LOWER RIGHT BASE (8) using two 1/2 X 4-1/2”

BOLTS (3), two BACKING DOME WASHERS (4), two 1/2” INT LOCK WASHERS (5), and two 1/2” LOCK NUTS (6).

12

11

8

4

3

2

6

5
