Page 11

Installation parts you should purchase.

Vinyl tape (Wide)

• Apply after carrying out a
drainage test.
• To carry out the drainage
test, remove the air filters
and pour water into the heat
exchanger.

Saddle

Forced Operation Button

Gas side piping (Optional Parts)
Liquid side piping (Optional Parts)
Additional drain pipe

Vinyl tape (Narrow)
Drain Hose

Base Plate

Air Outlet Vents

Air Inlet Vents

Connecting cable
(Optional Parts)

Installation plate
Sleeve
Bushing-Sleeve

Putty(Gum Type Sealer)

Bend the pipe as closely
on the wall as possible,
but be careful that it
doesn't break.

NOTICE

Air Discarge

Vertical Air deflector

Operation Indication Lamps/

Signal Receptor

Installation Manual 11

ENGLISH

Installation

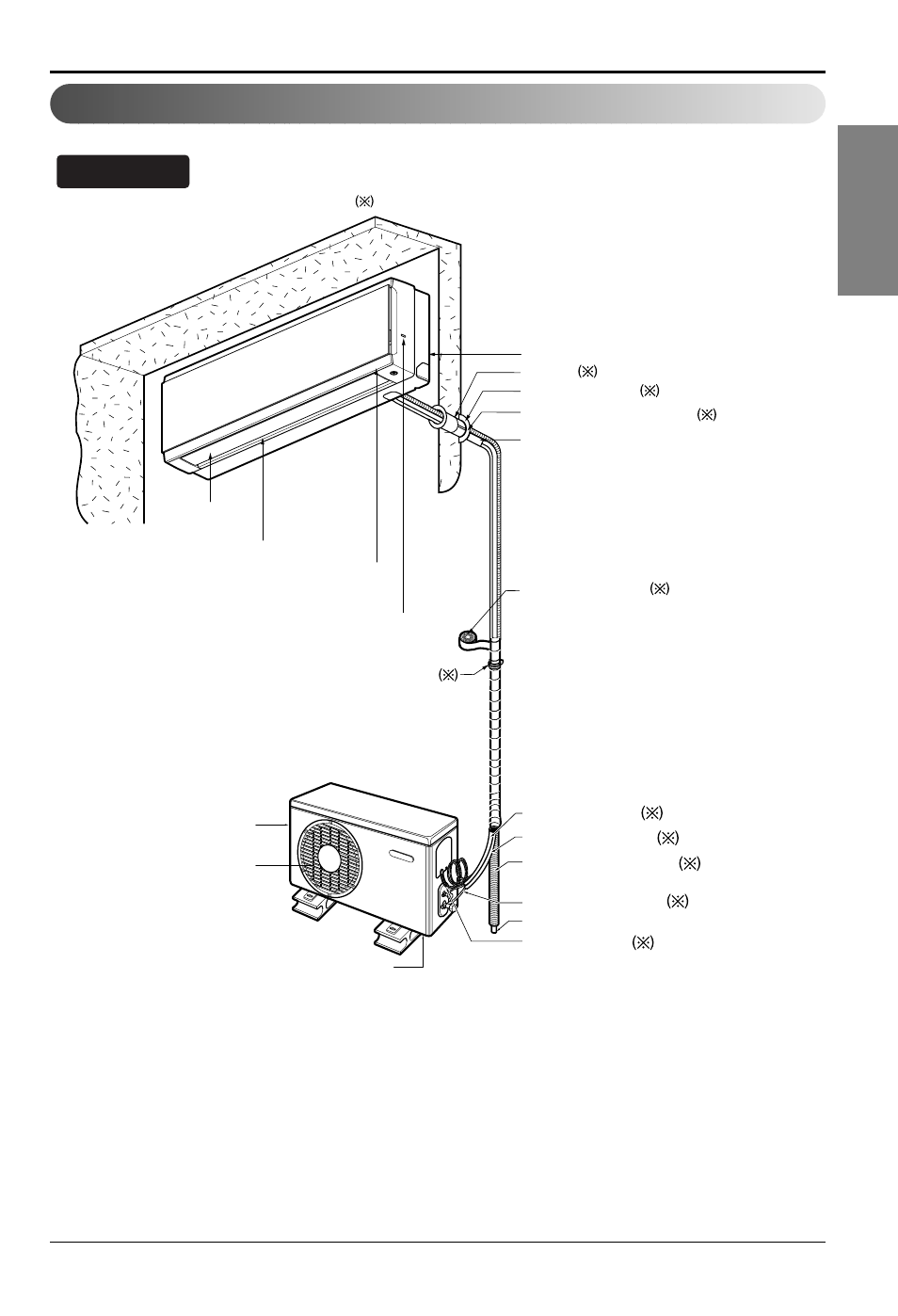

Installation Map

NOTE: refrigerant line wall thickness must be at least 0.8 mm (0.031 inch)
