Lochinvar Copper-fin II/IIE Boiler - Manual (Page 29)

2
Maintenance
(continued)
29
Copper-fin II/IIE Boiler, Water Heater and Pool Service Manual
PRESSURE
REGULATOR
ADJUSTMENT
(UNDER CAP
SCREW)
INLET
OUTLET
GAS
VALVE
CONTROL
KNOB
MANOMETER
MANIFOLD
PRESSURE
CHAMBER
PRESSURE
TEE
TO BARBED
FITTING

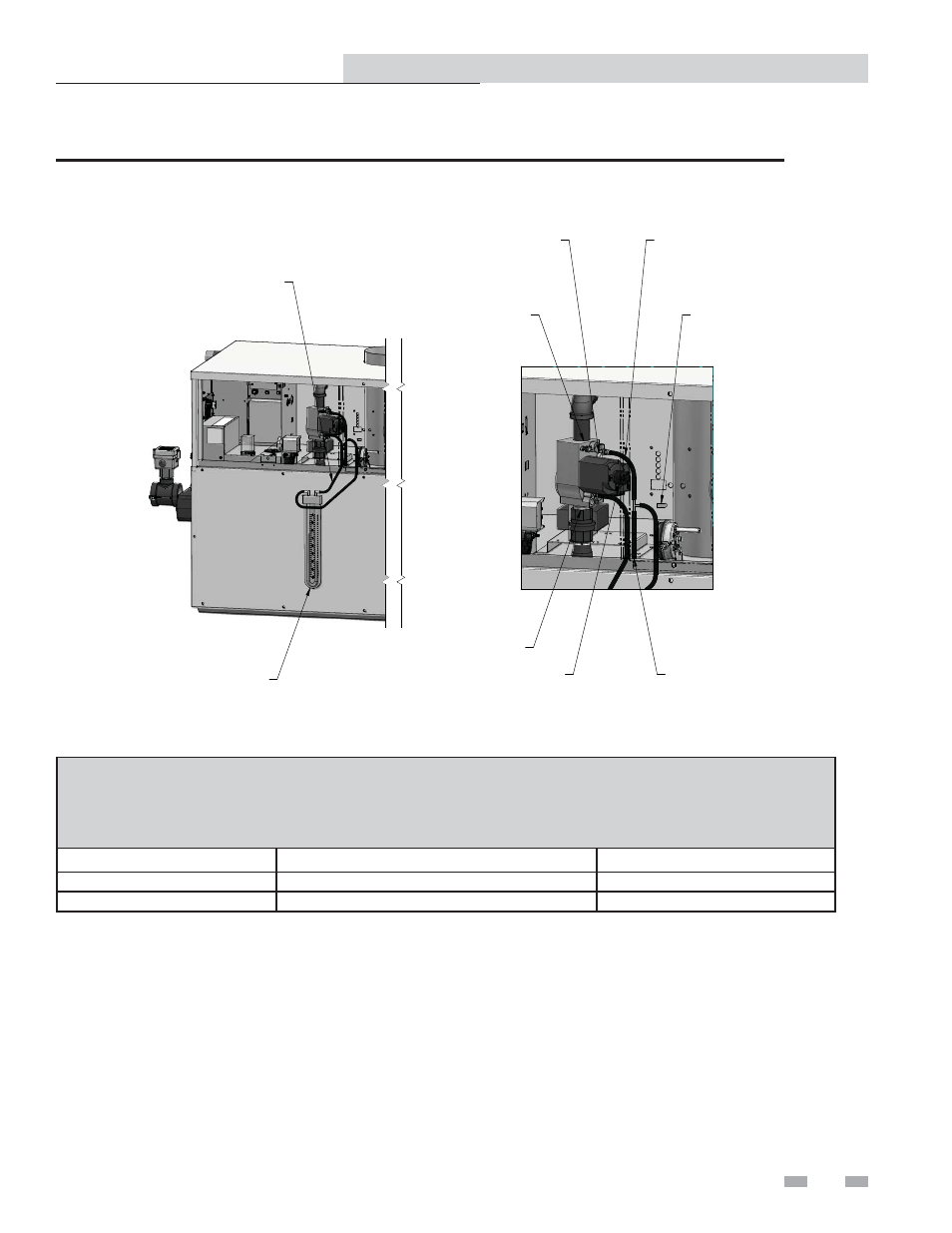

Figure 2-4_Measuring manifold gas pressure
TABLE 2B
Net Manifold Pressure
Regulator Pressure Less
Front Chamber Pressure
MODEL Nat. Gas LP
402 - 752 1.8'' w.c. 4.6’’ w.c.
992 - 2072 1.2'' w.c. 4.6’’ w.c.
