Advent Lytespan
®
1 and 2 Circuit Track
61XMCE
Page 3 of 3
M20 (3/8" or 1/2")
Connector
Track
Power Extension
Connector
Beam
Jump
Track
Power Extension
Connector
Wall
Track
Power Extension
Connector
Track
Power Extension
Connector
M20 (3/8" or 1/2")
Connector
Jump
Wall
(Conduit)
5-1/2"
3-11/32"
5-1/2"
11-3/4"
0-90
Ceiling to Wall
Wall
Inside
Corner
Wall
Outside
Corner
M20 (3/8" or 1/2")
Connector (by others)
Cast Plug
Live End Cover
Track Unit
Locknut
Live End
1/2" 14 Thread,
Integral with Live End
Live End
Track Unit
Variable Angle Connector
The Variable Angle Connector is pre-wired and
polarized. Connector will accept an M20 (3/8"
or 1/2") electrical fitting. (Use Locknut from
Cast Plug or 3/8" or 1/2" fitting.) Connector
flexes in all directions.
Direct Feed into Connectors
The Live End, “L”, ”T”, “X”, In-Line & Variable
Angle Connectors will accept an M20 (3/8" or
1/2") electrical fitting. Does not require a
separate power feed kit.
6151**CE1 External Right AL
6151**CE2 External Left AL
6151**CE3 Internal Right AL
6151**CE4 Internal Left AL
**Finishes:
AL Matte Aluminum
BK Matte Black
WH Matte White
"T" Connector
The "T" connector is polarized and pre-wired.
Used to make "T" pattern with track. (See
fig. 1) 12 ga. copper jumper wires supplied to
make all necessary connections. KO permits
direct feed with electrical connector.
6153ALCE Matte Aluminum
6153BKCE Matte Black
6153WHCE Matte White
Power Extension Connector
Replaces Dead End Cover at end of track to
permit power continuity around structural
obstacles to another track section.
Accepts same power feed-in kits as Live End.
6146ALCE Matte Aluminum
6146BKCE Matte Black
6146WHCE Matte White
Over Beam or Through Beam
Through Wall or Column
"L" Connector
The "L" connector is polarized and pre-wired.
It may be rotated for right angle or left angle
turn. KO permits direct feed with electrical
connector.
6150ALCE Matte Aluminum
6150BKCE Matte Black
6150WHCE Matte White
"X" Connector
The "X" connector is not pre-wired or
polarized. Used to make "X" pattern with
track. 12ga. copper jumper wires supplied to
make all necessary connections. KO permits
direct feed with electrical connector.
6152ALCE Matte Aluminum
6152BKCE Matte Black
6152WHCE Matte White
M20 (3/8" or 1/2") Fitting, 3/8" recommended
(by others). Note: Use M20 locknut (not
shown) with M20 Fitting (by others). No
locknut needed with 3/8" or 1/2" fitting.

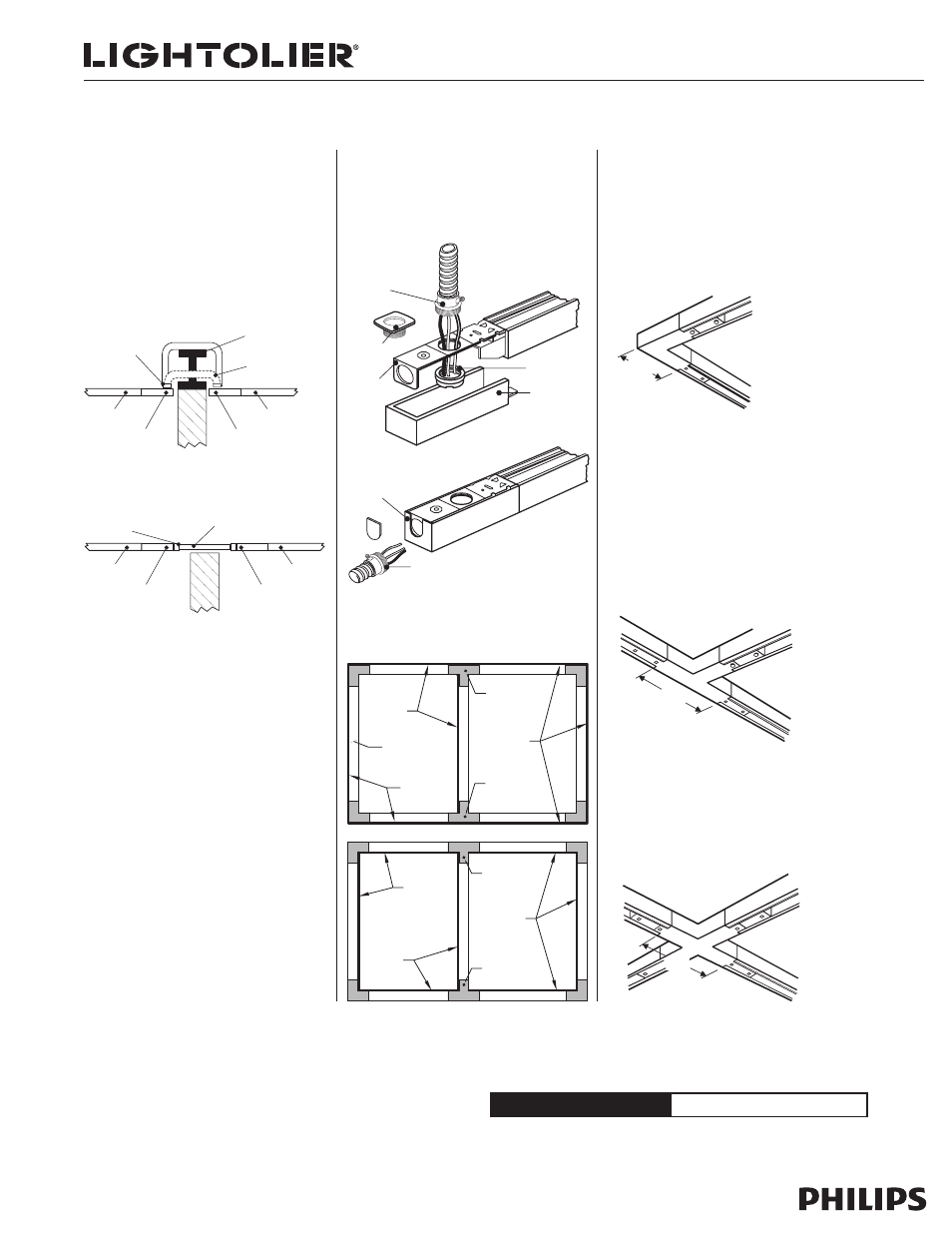

Track Mounting, Power Feed Systems and Mounting Patterns
6151XXCE1
External Right
6151XXCE2
External Left
Neutral
Track (Typ)
Neutral
6151XXCE4
Internal Left
6151XXCE3
Internal Right
Neutral
Neutral
Neutral
Neutral
View from Floor
Fig. 1
